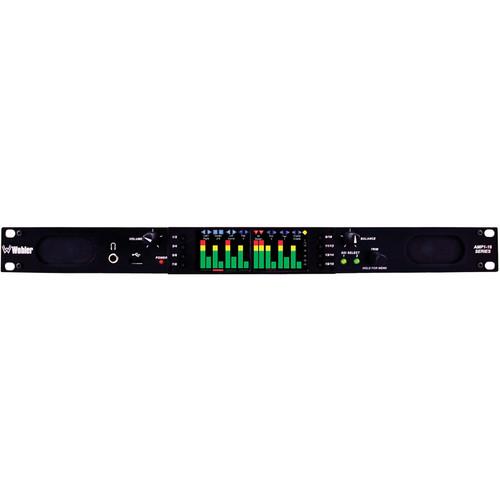

User Manual for Wohler 3G HD SD-SDI 16-Channel Audio Monitor with Trim Control Click to enlarge the picture
Contents of the user manual for the Wohler 3G HD SD-SDI 16-Channel Audio
- Product category: Rack Mount Monitors Wohler
- Brand: Wohler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wohler Rack Mount Monitors
|
User manual for the Wohler 3G HD SD-SDI 16-Channel Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wohler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wohler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wohler product will considerably shorten its lifespan!
|
Product description The 3G/HD/SD-SDI 16-Channel Audio Monitor with Trim Control from Wohler Technologies provides instantaneous selection and summing of any grouping of SDI audio pairs. It features adjustable volume and balance controls, clear display of levels, and phase indications on bright 2.4" (6.0 cm) LED-backlit LCD displays, with configurations that can be created, saved and recalled via Ethernet or USB flash drive using an intuitive PC interface. - Simultaneous level metering of 16 de-embedded audio channels from SDI
- High resolution metering with 166-segment displays
- Quick, intuitive push-button selection of any pairs to sum to monitor
- Monitor through built-in speakers, headphones or analog outputs with optional muting for internal speakers
- Stereo or mono monitoring
- Adjustable volume and balance
- Easy update and management software for PCs
- Balanced stereo analog outputs on XLR-Ms
- Fixed level or volume/balance controlled
- Automatic frame rate detection and selection
- Totally digital system architecture with high fidelity Class D amplifier
- Selectable line level or front panel volume control and outputs
- Shallow chassis depth for easy installation in OB vehicles and consoles
In the Box Wohler 3G/HD/SD-SDI 16-Channel Audio Monitor with Trim Control Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler 3G HD SD-SDI 16-Channel Audio Monitor with Trim Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler AMP1-16-M Specs | Signals Monitored | SDI | | Input | 2x 3G/HD/SD-SDI Inputs on BNC | | Output | 2 x Loop-through SDI Outputs on BNC
1 x Selected SDI Re-clocked Output on BNC
1 x Balanced stereo analog out on XLR-M (L+R) | | SDI Input Termination | 75Ω unbalanced | | Interface | External PC control via Ethernet port
Front panel USB port for preset storage/transfer | | Level Meters | 16 x 166 on the display | | Level Metering | Simultaneous average and PPM | | Level Meter Scale | Software Select your Level Meter Scale: AES, VU, Ext. VU, BBC, EBU, Nordic, DIN | | Level Meter Dynamics | Simultaneous VU & PPM | | Level Meter Resolution | 1 dB | | Display Characteristics | TFT LCD | | Display Size | 2.4" (6.0 cm) | | Front Panel LED Display | 2 x 2.4" (6.0 cm) LED-backlit LCDs | | Resolution | 320 x 240 | | Aural Sound Outputs | Wohler speaker system, headphone, mute speakers | | Frequency Response | Acoustic: 150 Hz to 16 kHz (+- 5 dB)
Analog: 40 Hz to 20 kHz (+- 1dB) | | Peak Acoustic Output at 2 feet | 90 dB SPL | | Hum and Noise | Better than -68 dB below full output | | Power Output | RMS Per Side: 6 W
Peak: 12 W | | Power | IEC connector: 100 to 240 VAC ± 10%, 50/60Hz 60 W; self-contained power supply | | Rack Height | 1RU | | Dimensions | 4.25 x 19.00 x 1.75" (108.00 x 483.00 x 44.00 mm) | | Weight | 5.0 lb (2.8 kg) | | | | Package Weight | 6.95 lb | | Box Dimensions (LxWxH) | 22.3 x 12.4 x 5.8" |
