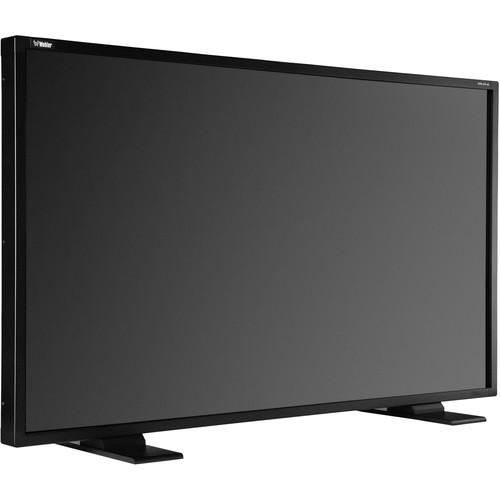

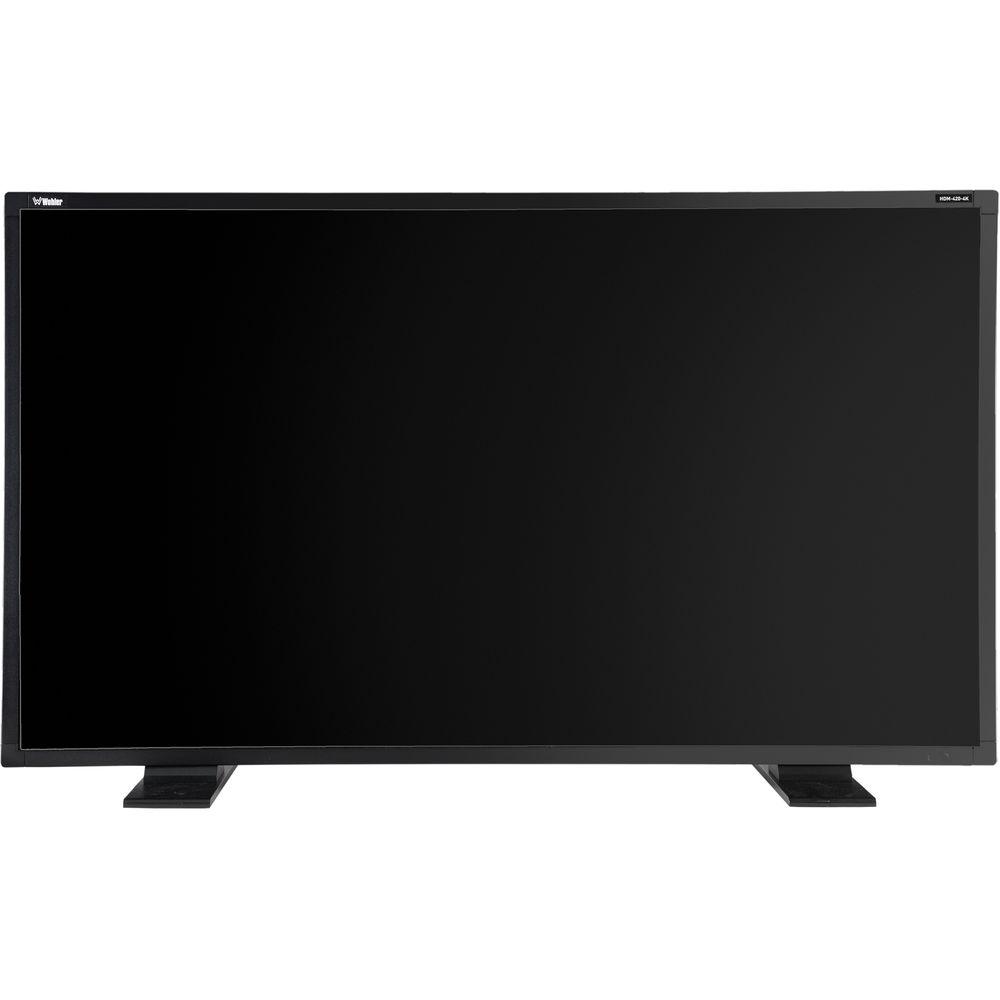

Product description The Wohler HDM-550-4K is a high-performance 55", slim-bezel UHD 4K Broadcast Video Monitor designed for studio environments and playout and monitoring applications, as well as most other broadcast applications.
Offering four 3G/HD/SD-SDI and four DVI-D inputs, scaling, and quad-split functionality, this monitor allows for multiple displays options. You can have any four HD/SD SDI/HDMI/DVI inputs displayed in a quad-split in up to 1920 x 1080p60 resolution each; any single 3G/HD/SD-SDI or HDMI/DVI input upscaled to a single 3840 x 2160 UHD image; or a single UHD signal displayed in full resolution. There are also four 3G/HD/SD-SDI outputs.
The HDM-550-4K is an IPS panel with a 178° viewing angle, 1400:1 contrast ratio, 400 cd/m² brightness with an LED backlight, and 1.06 billion color depth. It has two built-in 5W stereo speakers, two RCA audio outputs, and 2-8 channel OSD audio meters for each display window. OSD functions also include tally, blue only, H/V delay, and audio/video lost alarms per display window. Control interfaces consist of eight GPI connections on DB9 ports, RS-485 on an RJ45 jack, and Ethernet 10/100M on an RJ45 jack.
The monitor features advanced 10-bit digital signal processing technology, plus a 3D comb filter, de-interlacer and highly accurate scaling. All this ensures the monitor portrays smoother, more natural image reproduction. - Key Features
-
- 55" slim-bezel 4K Ultra HD studio, playout, monitoring display
- Four 3G/HD/SD-SDI and four DVI-D inputs
- Four 3G/HD/SD-SDI outputs
- Highly accurate upscaling
- Multiple display options up to quad-split
- IPS panel with a 178° viewing angle
- 1400:1 contrast ratio
- 400 cd/m² brightness
- 1.06 billion color depth
- Configurable color temperature
- Two built-in 5W stereo speakers
- Two RCA audio outputs
- 2-8 channel OSD audio meters for each display window
- Tally, blue only, H/V delay, and audio/video lost alarms per display window
- Eight GPI connections on DB9 ports, RS-485 on RJ45, and Ethernet on RJ45
- 10-bit digital signal processing
- 3D comb filter
- De-interlacer

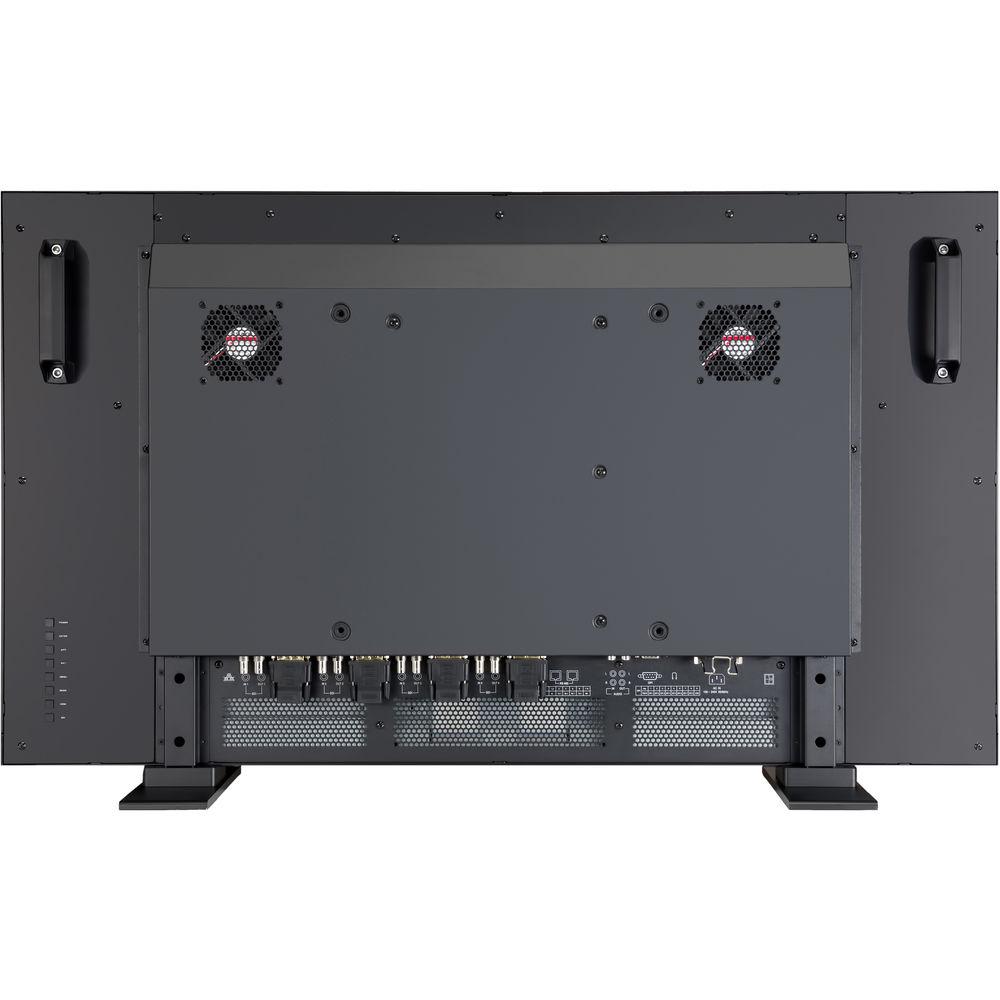

- VESA 350mm mount
In the Box Wohler 55" UHD 4K Broadcast Video Monitor Table Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler 55" UHD 4K Broadcast Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler HDM-550-4K-TT Specs | | | Panel Type | IPS-Type LCD | | Display Size | 55.0" / 140.0 cm | | Screen Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1400:1 | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Image Controls | Blue Only, Color Temperature Selection, H/V Delay, Screen Markers | | | | Video | 4 x BNC (3G-SDI) Input
4 x DVI-D Input
4 x BNC (3G-SDI) Output | | Embedded Audio | HDMI

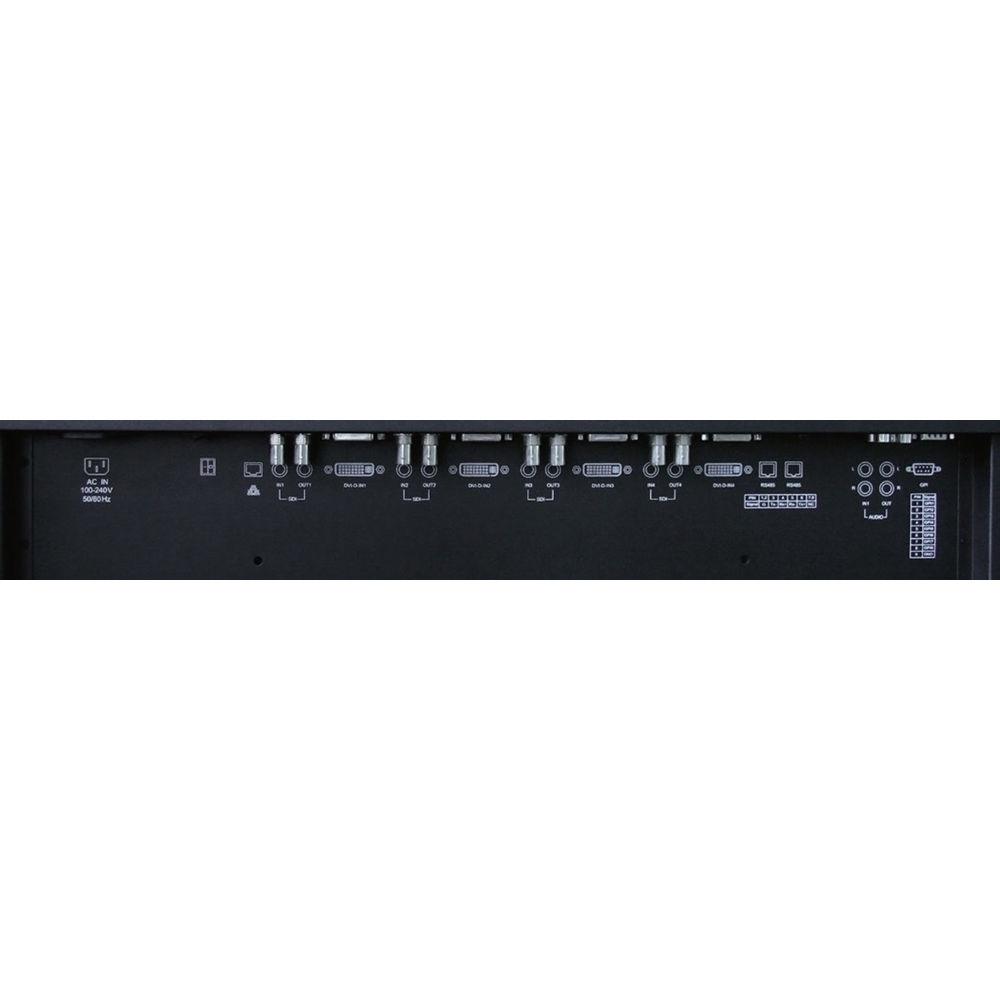

SDI | | Audio | 2 x RCA Output | | Built-In Speaker | 2 x 5 W | | Other I/O | 8 x GPI (DE-9/DB-9)
1 x RS-485 (RJ45)
1 x LAN (RJ45) | | Card Slot | None | | | | Video Format | SDI
1080p: 24/25/29.97/30/48/50/59.94/60 | | | | Dimensions (W x H x D) | 49 x 28.2 x 3.2" / 125 x 72 x 8 cm |
