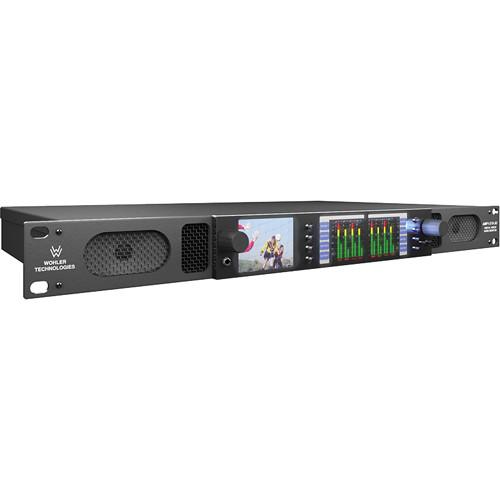

User Manual for Wohler AMP1-16-3G 16-Channel Audio Video Monitor Click to enlarge the picture
Contents of the user manual for the Wohler AMP1-16-3G 16-Channel Audio Video Monitor
- Product category: Rack Mount Monitors Wohler
- Brand: Wohler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wohler Rack Mount Monitors
|
User manual for the Wohler AMP1-16-3G 16-Channel Audio Video Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wohler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wohler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wohler product will considerably shorten its lifespan!
|
Product description The Wolher AMP1-16-3G 16-Channel Audio/Video Monitor offers 16 channels, multi-rate 3G/HD/SD-SDI and AES audio monitoring, all in a slim 1RU chassis. The Class-D digital amplifier system drives the integrated midrange and low frequency speaker drivers. All channels can be selected for simultaneous display and concurrently monitored on an OLED screen that is easily user-configured for bar graph meter look, scale, and ballistics. The scales are available on screen, at the touch of a button. You can route any selected signal to either the left or right, or both speakers for stereo or mono applications.
Video embedded in the 3G/HD/SD-SDI or a number of types of additional information may also be displayed on a third screen. All serial audio channels are de-embedded and available on the rear panel as 8 unbalanced AES signal pairs or 8 analog channels. The system can also output a re-clocked 3G/HD/SD-SDI, allowing the unit to be racked with a series of video monitors. Additionally, it provides 3G to HD or HD to SD down-conversion output. Eight hot keys provide instant access to solos, mutes, or presets. When the solo function is enabled, each selected channel is highlighted for easy identification, while all other channels remain active for visual evaluation. Power tools like loudness measurement comply with ITU-1770/1771, and delay-to-match OLED monitor and ingest process are included. - All 16 channels of audio can be visually monitored on 16 level meters displayed in two OLED screens
- Each displayed meter can feature stereo phase indication, user-defined channel labeling, and selectable scales and ballistics, such as AES, BBC, and Nordic
- Custom setting allows user-defined limits and color
- Monitoring for up to 16 channels of embedded audio in a single, multi-rate 3G/HD/SD-SDI signal
- Totally digital system architecture with high-fidelity class-D amplifier
- Video de-embedded from 3G/HD/SD-SDI displayed on the third screen
- Stereo or mono monitoring assignment to speakers
- Analog and digital surround sound system outputs, controllable from the front panel volume control
- Includes demux outputs for 8 AES pairs on unbalanced on 2HD15 connectors
- Create and store 8 user-defined operation configurations
- Monitoring for up to 16 channels of embedded audio in a single, multi-rate 3G/HD/SD-SDI signal
- Stereo phase indicator for stereo pairs
- Measurement of loudness and dial norm data can be prominently displayed
- Includes outputs for 8 analog channels on a balanced DB25
- Re-clocked output of 3G/HD/SD-SDI and 3G to HD and HD to SD signal down conversion output
In the Box Wohler AMP1-16-3G 16-Channel Audio/Video Monitor AC External Power Cord Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler AMP1-16-3G 16-Channel Audio Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler AMP1-16V-MD Specs | AES | Input Termination: 75 Î unbalanced, switchable | | SDI Input Termination | 75 Î unbalanced | | Level Meters | User-defined on the OLED display | | Level Meter Scale | 0 to -72 dB in 110 segments | | Reference | User configurable | | Level Metering | Simultaneous VU and PPM, configurable | | Level Meter Scale | AES, VU, Ext. VU, BBC, EBU, Nordic, and DIN | | Control | Selectable preset and user ballistics | | Resolution | Midscale: 1 dB | | Peak Acoustic Output at 2 feet | 98 dB SPL | | Power Output | RMS each side (8), 6 W, 12 W peak
RMS Low Frequency Drivers (4), 22 W, 40 W peak | | Frequency | Output: 80 Hz to 20 kHz (± 5 dB) (-10 dB at 50 Hz, 22 kHz) | | AES/EBU | Input Sampling Rate: 32 to 48 kHz, auto-detecting | | Hum and Noise | Better than -68 dB below full output | | Display Type | 3 OLEDs | | Screen Size | 2.40" (60.96 mm) diagonal per screen | | Native Aspect Ratio | 4:3 | | Active Viewing Area | 1.93 x 1.45" (48.96 x 36.72 mm) per screen | | Viewing Angle (H/V) | 170 x 170° | | Resolution | 320 x 240 RGB pixels | | Pixel Pitch | 0.0605 x 0.1815 mm | | Pixel Response | 50 µs Off-On-Off (Black to White to Black) | | Luminance | 200 cd/m2 | | Contrast | 10,000:1 | | Inputs | 2 x 3G/HD/SD-SDI (equalized) on BNC
8x AES/EBU on unbalanced BNC
1 x Ethernet on RJ-45
1 x RS-232 on DB-9
1 x Metadata on DB-9 (reserved for future use) | | Outputs | 1 x 3G/HD/SD-SDI (equalized) on BNC
1 x Down converted Video on BNC
8 x AES/EBU pairs on 2 on HD-15
8 x Analog channels balanced on DB-25
2 x GPI on HD-37 | | Space requirements | 1 RU in a standard 19" rack | | Power Connector | Power plugs into standard U.S. outlet | | Power Requirements | 100 to 240 VAC ± 10%, 50/60Hz | | Power Consumption | Approximately 60 W | | Dimensions (HxWxD) | 1.75 x 19.00 x 11.00" (44.45 x 483.00 x 279.40 mm) | | Weight | 10.00 lb (4.54 kg) |
