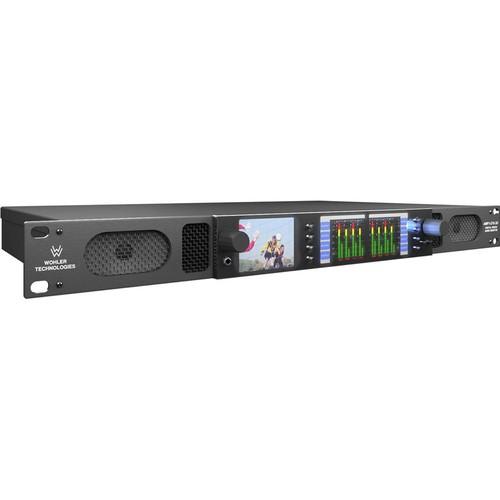

Product description The AMP1-16-3G from Wohler is a professional-quality rackmount audio monitor that also provides mixing and metering capabilities, as well as video display. The unit can monitor and convert up to 16 channels of audio. It can accept 3Gb/s, HD-SDI, or AES audio. A set of 3 high-quality OLED screens are provided. The first 2 screens are used to display audio data, while the third screen can be used for diverse data or video that has been de-embedded from the selected input.
The monitor has an intuitive and customizable graphical UI, which allows quick and easy operation. Signal routing is also flexible, thanks to 2 selectable inputs with re-clocked output, 8 AES inputs, 8 pairs of AES outputs, HD/SD down-conversion, and 8 GPI inputs for remote control. - Rackmount design allows installation in any standard equipment rack
- Provides monitoring, mixing, and metering of up to 16 audio channels
- Accepts 3Gb/s, HD-SDI, or AES audio
- A set of 3 high-quality OLED screens display audio data, as well as diverse data or video that has been de-embedded from the selected input
- Intuitive and customizable graphical UI
- Flexible signal routing thanks to 2 selectable inputs with re-clocked output, 8 AES inputs, 8 pairs of AES outputs, 3G/HD/SD to HD/SD down-conversion, and 8 GPI inputs for remote control
In the Box Wohler AMP1-16-3G Rackmount 16-Channel Audio Monitor with Video Power Cable 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler AMP1-16-3G Rackmount 16-Channel Audio Monitor with Video in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler AMP1-16-3G Specs | Rack Height | 1RU | | Input Connectors | 8 x AES/EBU BNC Inputs
2 x HD/SD-SDI BNC Inputs with 3G Auto-Sense | | Output Connectors | 8 x DB25 Analog Outputs
2 x Groups of 4 AES Outputs, DB15
1 x HD/SD-SDI BNC Re-Clocked Output
1 x BNC SDI Video Output
1 x Headphone Jack | | Hum & Noise | Better than -68dB Below Full Output | | Frequency Response | 80Hz - 20kHz (±5dB) | | Speakers | Wohler Speaker System | | Display | 3 x 2.4" (61mm) OLED Displays, 320 x 240 Resolution | | Dimensions (HxWxD) | 1.75 x 19 x 11" (45 x 483 x 279mm) | | Weight | 10 lbs (4.6kg) | | | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 8.0" |
