User Manual for Wohler AMP1-2SDA 2-Channel Stereo Monitor with 3G HD SD-SDI, AES, and Analog Inputs Click to enlarge the picture
Contents of the user manual for the Wohler AMP1-2SDA 2-Channel Stereo Monitor with
- Product category: Rack Mount Monitors Wohler
- Brand: Wohler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wohler Rack Mount Monitors
 |
User manual for the Wohler AMP1-2SDA 2-Channel Stereo Monitor with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wohler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wohler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wohler product will considerably shorten its lifespan!
|

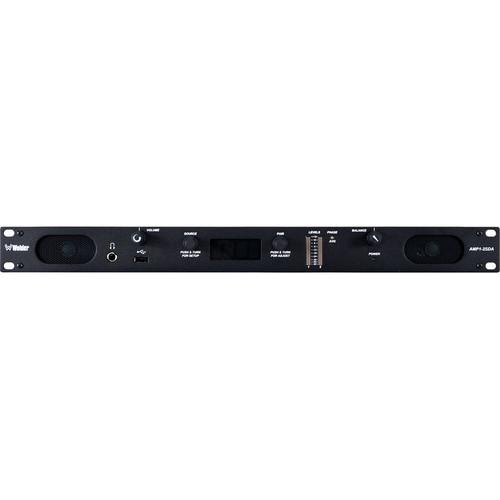

Product description The AMP1-2SDA from Wohler is a 1 RU, 2-channel, 3G/HD/SD-SDI, AES, and analog audio monitor with a powerful audio amplifier to help overcome ambient noise. The unit provides instantaneous selection and monitoring of any available pair of audio from either a 16 channel SDI (with looped output), a single AES input pair, and either of the two pairs of analog inputs (balanced or unbalanced). Analog and AES outputs of the selected pair are included. Additional optional hardware input cards can provide up to 8 additional pairs of both Analog and/or AES on DB-25 inputs. The unit features adjustable volume and balance controls, while two on-board 26-segment level meters provide accurate audio level metering. You can visually and audibly monitor any selected audio pair. There is also a 4-digit, 14-segment display for setup and status display.
The AMP1-2SDA is small, low-cost, reliable, and simple to operate. It needs little configuration, as the unit ships already configured to the most commonly requested settings. However, should you need to change these settings, you can quickly and easily access the optional settings using the front panel controls and the Status Display. -
- High-fidelity Class-D amplifiers with Wohler quality sound
- Quick selection of 3G/HD/SD-SDI, AES, and analog channel pairs to monitor through built-in speakers, headphones and analog outputs
- Regenerated loop output of the SDI input
- Balanced stereo analog outputs on XLR-M can be fixed, controlled by the Volume and Balance controls, or can be trimmed to various levels
- Front panel 1/4” headphone jack
- Automatic frame rate detection and selection
- Level metering for 2 (of 16) de-embedded 3G/HD/SD-SDI channels
- High-resolution metering with 26 segments displayed
- Level Meter Representation: Simultaneous average and PPM
- Brightness control for displays, 2 levels
- Permanent internal storage for all option settings
- Easy software updates using a USB flash drive
- Shallow chassis depth for easy installation in OB vehicles and consoles
- IEC power input, 100 – 240 VAC ±10%, 50/60 Hz
- Phase indicator for the selected stereo input channel pair
- Simple uncluttered front panel controls
- Selectable trim and tone controls
- Option to add monitoring of additional 8 pairs of AES and/or Analog inputs
In the Box Wohler AMP1-2SDA 2-Channel Stereo Monitor with 3G/HD/SD-SDI, AES, and Analog Inputs (1 RU) Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler AMP1-2SDA 2-Channel Stereo Monitor with 3G HD SD-SDI, AES, and Analog Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

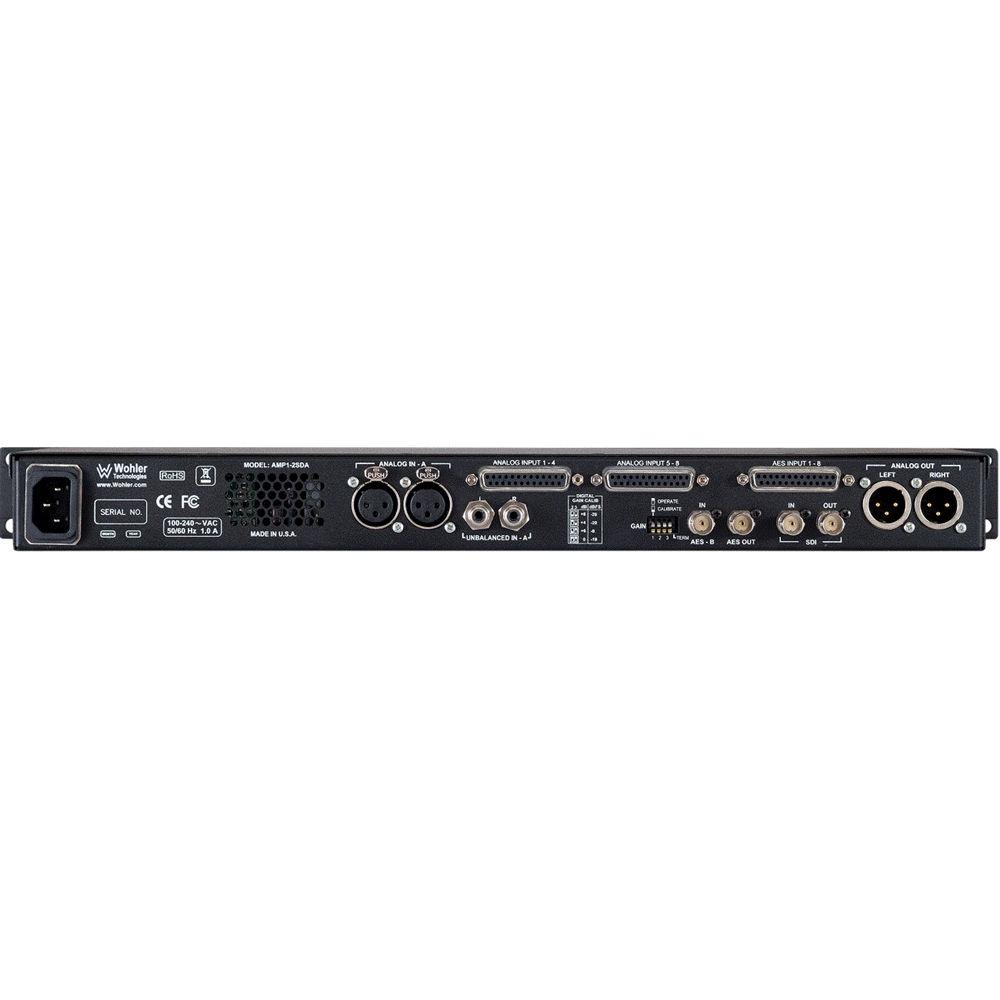

Technical parametersWohler AMP1-2SDA Specs | Inputs | SDI
3G/HD/SD-SDI on BNC
AES
L/R on BNC
8 x L/R on DB25F (Optional)
Analog
Balanced L/R on XLR-F
Unbalanced L/R on RCA
Balanced 8 x L/R on 2 x DB25F (Optional) | | Outputs | SDI: Regenerated on BNC
AES: L/R on BNC
Analog: Balanced L/R on XLR-M | | Level Meters | 2 x 26 segment LED | | Level Meter Scale | AES | | Status Display | 4 x 14-segment green LED | | Peak Acoustic Output | 90 dB SPL (@ 2 feet) | | Power Output | 5 W RMS, 12 W peak (each side) | | Frequency Response | Acoustic Frequency Response: 150 Hz to 16 kHz (±5 dB)
Analog Output Frequency Response: 40 Hz to 20 kHz (±1 dB) | | Output Level | Analog Output Reference Level: -20 dBFS = +4 dBu (±1.0 dBu) | | THD+N | Analog Output Distortion: <0.01% THD+N | | Maximum Input Level | +28 dBu | | Maximum Output Level | +28 dBu, +24 dB into 600 Ohms | | Dynamic Range | A/D and D/A Dynamic Range: >96 dB | | SDI Input Termination | 75 Ohms unbalanced | | AES/EBU Input Termination | 75 Ohms unbalanced, switchable
110 Ohms balanced (optional module) | | Input Impedance | Analog Input Impedance: 27 kOhms (minimum balanced) | | Hum and Noise | Better than -68 dB below full output | | Electrical Distortion | <0.05% at any level below limit threshold | | SDI Formats Supported | SD: 29.97; 25
HD
720p: 23.98; 24; 25; 29.97; 30; 50; 59.94; 60
1035i: 29.97; 30
1080i: 25; 29.97; 30
1080sf: 23.98; 24; 25; 29.97; 30
1080p: 23.98; 24; 25; 29.97
3G
1080p: 50; 59.94; 60 | | Power | Power Requirements: 100 to 240 VAC ±10%, 50/60 Hz
Power Consumption: 60 W | | Rack Space | 1 RU | | Dimensions (H x W x D) | 1.8 x 19.0 x 4.3" / 44.5 x 483 x 108.0 mm | | Weight | 5.0 lb / 2.3 kg | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 22.3 x 12.5 x 5.9" |
