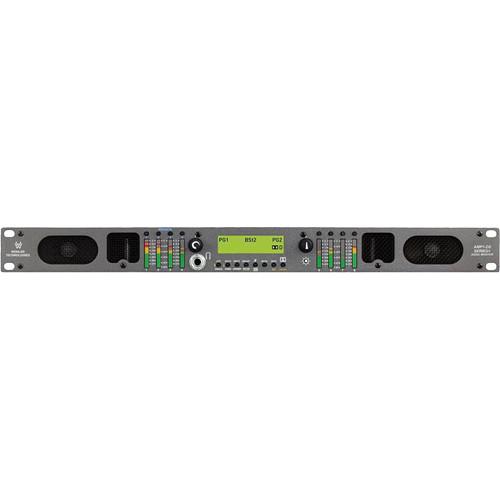

Product description The AMP1-D8-MDA 8-Channel Audio Monitor with Dolby AC3 from Wohler Technologies is a 1RU in-rack audio monitor, capable of outputting and displaying encoded, multi-channel audio (up to 8 channels) from Dolby Digital streams decoded from AES. The ability to switch seamlessly between encoded or discrete PCM sources, in addition to providing full, simultaneous demuxed output of the multi-channel source offers enhanced operational capability. This unit is suitable for VTR bays, mobile production vehicles, teleconferencing installations, multimedia systems, satellite links, cable TV facilities, and on-air radio studios. Extended HF response reveals potential problems with audio whine or hiss, and electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of reversed polarity audio feeds. The sleek design provides optimally focused sound for operators in an ultra near field environment of 1 to 3' (0.3 to 0.9m) with performance comparable to that of many separate monitor pairs without installation hassles and awkward speaker placements. This enables a high SPL for the operator, while reducing overall ambient sound and adjacent bay crosstalk. - Supports decoding and playback of Dolby Digital bitstreams
- Select and assign a channel or channel pair to left, right or both speakers, or select a predefined downmix
- Four presets let you change the entire system configuration with the press of a single button
- Thorough magnetic shielding allows placement next to sensitive equipment and video monitors
- Backlit LED screen displays phase, signal type, Dolby program, and more
- Eight 26-segment tri-color LED bar graphs display simultaneous VU and PPM
- Sum any combination of up to 8 channels to the left and/or right speakers and selected analog outputs
- High quality drivers and power amplifiers deliver excellent frequency response and low distortion
- Power 104 dB SPL at 2' (0.6m)
In the Box Wohler AMP1-D8-MDA 8-Channel Audio Monitor with Dolby AC3 Limited 1-Year Warranty on Parts & Labor Note: The warranty can be automatically extended to a 24 month warranty by registering the serial number of your product at Wohler's website within 6 months of shipment. Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler AMP1-D8-MDA 8-Channel Audio Monitor with Dolby AC3 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler AMP1-D8-MDA Specs | Inputs | 4 x Unbalanced AES/PCM pairs (BNC)
4 x AES Balanced pairs (1 DB-25)
2 x Dolby AC-3 (BNC)
8 x Channels analog (1 DB-25) | | Output | 4 x Balanced AES pairs loop out (DB-25)
4 x Decoded Dolby AC-3 (BNC)
8 x Channels metered analog (1 DB-25)
1 x Unbalanced AES pair mix out of Dolby source
2 x Selected downmix analog (2 XLRs) | | Power Requirements | 100 to 240 VAC ± 10%, 50/60Hz 60 W | | Peak Acoustic Output at 2 feet | 104dB SPL | | Dimensions | 1.7 x 19.0 x 13.5" (4.3 x 48.3 x 34.3 cm) | | Weight | 13.0 lb (5.9 kg) | | | | Package Weight | 15.65 lb | | Box Dimensions (LxWxH) | 23.7 x 17.3 x 8.2" |
