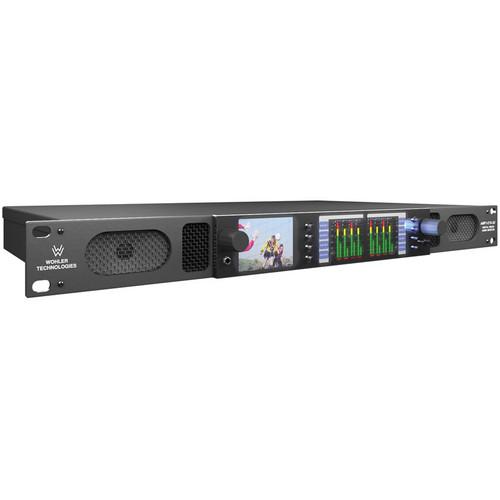

User Manual for Wohler AMP1-E16V-MD 16-Channel Audio Video Monitor Click to enlarge the picture
Contents of the user manual for the Wohler AMP1-E16V-MD 16-Channel Audio Video Monitor
- Product category: Rack Mount Monitors Wohler
- Brand: Wohler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wohler Rack Mount Monitors
|
User manual for the Wohler AMP1-E16V-MD 16-Channel Audio Video Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wohler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wohler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wohler product will considerably shorten its lifespan!
|
Product description The AMP1-E16V-MD 16-Channel Audio Video Monitor from Wohler Technologies offers 16 channel, multi-rate 3G/HD/SD-SDI and AES audio monitoring with Dolby capability all in a slim 1RU chassis. The audio fidelity has a Class-D digital amplifier system to drive the integrated midrange and low frequency speaker drivers. The AMP1-E16V-MD includes Dolby D, Dolby E, and DD+ capability. All channels can be selected for simultaneous display and concurrently monitored on an LCD screen that is easily user-configured for bar graph meter look, scale, and ballistics. All scales are available on screen, at the touch of a button. You can route any selected signal to either the left or right, or both speakers for stereo or mono applications.Video embedded in the 3G/HD/SD-SDI or a number of types of additional information can be displayed on a third screen. All serial audio channels are de-embedded and available on the rear panel as 8 unbalanced AES signal pairs or 8 analog channels. The system can also output a re-clocked 3G/HD/SD-SDI, allowing the unit to be racked with a series of video monitors. Additionally, it provides 3G to HD or HD to SD down-conversion output.8 hot keys provide instant access to solos, mutes, or presets. When the solo function is enabled, each selected channel is highlighted for easy identification, while all the other channels remain active for visual evaluation. Power tools like loudness measurement comply with ITU-1770/1771, and delay-to-match LCD monitor and ingest process are included. - Three color LCDs not only allow you to customize colors for easy monitoring, but also display up to 16 bar graph level meters simultaneously. The third screen displays video, audio metadata or help text.
- At only 1RU it gives you the power of several units with the simplicity of a single package.
- Each displayed meter can feature stereo phase indication, user-defined channel labeling, and selectable scales and ballistics, such as AES, BBC, and Nordic. A custom setting allows user-defined limits and colors.
- All 16 channels of audio visually monitored on 16 level meters displayed in 2 LCD screens.
- Monitoring for up to 16 channels of embedded audio in a single, multi-rate 3G/HD/SDSDI signal.
- Totally digital system architecture with high-fidelity class D amplifier.
- Video de-embedded from 3G/HD/SD-SDI displayed on the third screen.
- Stereo or mono monitoring assignment to speakers.
- Analog and digital surround sound system outputs, controllable from the front panel volume control.
- Includes demux outputs for 8 AES pairs on unbalanced or 2 HD15 connectors.
- Create and store 8 user-defined operation configurations.
- Stereo phase indicator for stereo pairs.
- Includes ouputs for 8 analog channels on a balanced DB-25.
- Re-clocked output of 3G/HD/SD-SDI and 3G to HD and HD to SD signal down conversion output.
In the Box Wohler AMP1-E16V-MD 16-Channel Audio Video Monitor AC Power Cord Limited 90-Day Warranty on Pixels Limited 1-Year Warranty on Parts & Labor Note: The warranty can be automatically extended, for audio products only, to a 24 month warranty by registering the serial number of your product online at Wohler's website within 6 months of shipment. Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler AMP1-E16V-MD 16-Channel Audio Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler AMP1-E16V-MD Specs | Signals Monitored | AES/EBU
Dolby
SDI | | Input | 8 x Unbalanced AES Inputs on BNC | | Output | 2 Groups of 4 Unbalanced AES Output from AES Inputs on 2 ea DB-15 | | AES/EBU Input Termination | 75Ω unbalanced, switchable | | Sampling Rate | AES/EBU Input Sampling Rate: 32 to 48 kHz, auto-detecting | | SDI Inputs | 2 ea 3G/HD/SD-SDI Inputs on BNC | | SDI Input Termination | 75 Ω unbalanced | | SDI Outputs | 1 x 3G/HD/SD-SDI reclocked output on BNC
1 x down-converted HD/SD-SDI video output from 3G/HD/SD-SDI Input on BNC | | Dolby Inputs | Selectable from any AES pair or any SDI de-embedded pair | | Dolby Outputs | Assignable to AES or Analog outputs by OSD controls | | Analog Input Impedance | 40 kΩ | | Level Meters | User defined on the LCD display | | Scaling | Level Meter Scaling: AES, VU, Ext.VU, BBC, EBU, Nordic, DIN, Custom | | Level Meter Scale | 0 to -72 dB in 110 segments | | Level Meter Dynamics | Configurable up to simultaneous VU and PPM | | Level Meter Resolution | 1 dB | | Number of Displays | 1 | | Display Size | 2.4" (6.0 cm) | | Display Characteristics | LCD | | Active Viewing Area | 1.93 x 1.45" (49.00 x 37.00 mm) per screen | | Native Aspect Ratio | 4:3 | | Resolution | 320 x 240 | | Viewing Angle | 170 H x 170 V | | Pixel Pitch | 0.15367 x 0.46101" (0.0605 x 0.1815 mm) | | Pixel Response | 50 ms off-on-off (black to white to black) | | Luminance | 200 cd/m² | | Contrast | 10,000: 1 | | Aural Sound Outputs | Wohler speaker system, headphones, mute speakers | | Distortion | Acoustic Distortion: 8% or less at worst case frequencies above 180 Hz
Electrical Distortion: <0.15% at any level below limit threshold | | Frequency Response 1/6 Octave | 80 Hz to 20 kHz (+ or -5 dB); (-10 dB @ 50 Hz, 22 kHz) | | Peak Acoustic Output at 2 feet | 98 dB SPL | | Hum and Noise | Better than -68 dB below full output | | Power Requirements | 100 to 240 VAC ± 10%, 50/60 Hz | | Power Output | Tweeters: 5W RMS Continuous into 8Ω, each side, 10W Transient
Woofers: 4W RMS Continuous into 4Ω, each side, 17W Transient | | Power Consumption | Approximately 60 W | | THD | <0.15% at any level below limit threshold | | Space requirements | 1 RU in a standard 19.0" (48.2 cm) rack | | Rack Height | 1 RU | | Dimensions | 1.75 x 19.00 x 11.00" (44.50 x 483.00 x 279.00 mm) | | Weight | 10.1 lb (4.6 kg) | | | | Package Weight | 14.45 lb | | Box Dimensions (LxWxH) | 23.4 x 17.4 x 8.2" |
