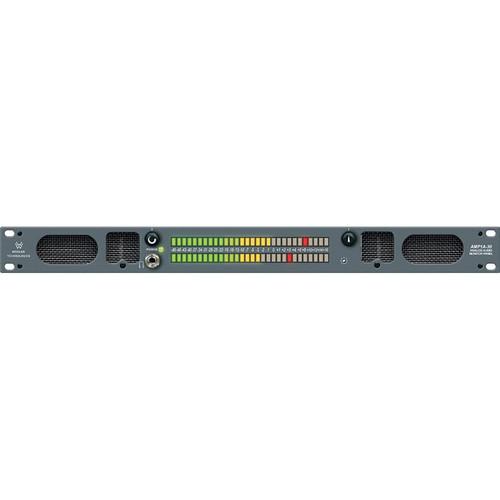

User Manual for Wohler AMP1-E8MDA-3G 8-Channel Dolby Audio Monitor Click to enlarge the picture
Contents of the user manual for the Wohler AMP1-E8MDA-3G 8-Channel Dolby Audio Monitor
- Product category: Rack Mount Monitors Wohler
- Brand: Wohler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wohler Rack Mount Monitors
|
User manual for the Wohler AMP1-E8MDA-3G 8-Channel Dolby Audio Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wohler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wohler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wohler product will considerably shorten its lifespan!
|
Product description The one-of-a-kind Wohler AMP1-E8MDA-3G 8-Channel Dolby Audio Monitor is a 1RU in-rack audio monitor with the ability to output and/or display encoded multi-channel audio from Dolby E or Dolby Digital bitstreams that were de-embedded from 3G/HD/SD-SDI or decoded from AES. You can support this process for up to eight channels. Plus, the monitor features the ability to seamlessly switch between encoded or discrete Pulse-Code Modulation (PCM) sources. It's also able to provide full and simultaneous demultiplexing output of the multi-channel source, which basically means that the processor can split files that contain video, audio and other data into separate files that contain one element of the original file.Each AMP1-E8MDA-3G comes outfitted with four high-quality drivers and three power amplifiers that would impress any audiophile. Two speakers and amplifiers reproduce mid-range and high frequency (HF) information in stereo, while a third amplifier and two speakers handle summed low frequency (LF) information below the 500 Hz crossover point. You can also take advantage of HF response electrically to reveal potential noise problems, rather than relying on acoustic cancellation of bass frequencies.Besides superior functionality, the AMP1-E8MDA-3G also boasts a modern design aesthetic that is optimally constructed to provide focused and clear sound for operators in an ultra-near field environment ranging from one to three feet. The inclusion of optimized speakers eliminates the need for awkward monitor placement, as well as enabling a higher sound pressure level (SPL) for the audio engineer, while reducing the overall ambient noise and crosstalk that disrupts authentic and accurate monitoring. Although its 1RU unique design with in-rack monitors and high-quality eight channel monitoring make this unit ideal for broadcasting and other audio monitoring/processing applications in any environment, they truly shine when used in VTR bays, mobile production vehicles, teleconferencing installations, multimedia systems, satellite links, cable TV facilities and on-air radio studios. Features - Accoutered with thorough magnetic shielding to prevent any interference when device is placed near any sensitive equipment and/or video monitors
- Front panel summing of any combination up to eight channels to the left and/or right speakers and selected analog outputs
- Monitor features eight, 26-segment tri-color LED bar graphs that display simultaneous VU and PPM
- Audible indications of phase/polarity problems
- Premium quality drivers and power amplifiers
- Phase-correlation display of selected channels
- Excellent frequency response and low distortion
- Powerful 104dB SPL @ 2.0' (61 cm)
- Headphone jack (mutes speakers)
Benefits - Select the single channel or channel pair that you want in the left speaker, right speaker, or even both speakers; you can select a predefined downmix as well
- Conveniently, the audio monitor features four programmable presets that allow you to change the entire system configuration with the press of a single button
- The monitor's LED screen displays several source, program and level information including: phase, signal type, 3G/HD/SD-SDI group for the 3G models, Dolby Program and more
- For added control over the unit, Wohler made sure to equip both the left and right level meters with their own - separate - brightness adjustments
- This model decodes and monitors/plays any decoded Dolby E, as well as Dolby Digital bitstreams
- Small rack space requirements make this model perfectly suited for use in space-critical environments
- You can quickly and easily display phase indication with the press of a single button
In the Box Wohler AMP1-E8MDA-3G 8-Channel Dolby Audio Monitor AC External Power Unit / Cord CD-ROM (Software & Product Guide) 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler AMP1-E8MDA-3G 8-Channel Dolby Audio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler AMP1-E8 Specs | Inputs | 4 x Unbalanced AES/PCM Pairs (BNC) 4 x AES Balanced Pairs (1 DB-25) 2 x Dolby E/AC-3 (BNC) 2 x 3G/HD/SD-SDI (BNC) 8 x Analog Channels (1 DB-25) | | Outputs | 1 x Reclocked 3G/HD/SD-SDI (BNC) 4 x Balanced AES Pairs Loop Out (DB-25) 4 x Unbalanced AES Pairs (1 HD-15) / Option for Balanced AES (DB-25) Converted from SDI 5 x Decoded Dolby E/AC-3 (BNC) 1 x Unbalanced AES Pair Mix Out of Dolby Source 8 x Metered Analog Channels (1 DB-25) 2 x Selected Downmix Analog (2 XLR) | | Other Rear Panel Connectors | 3 x RS-232 (DB-9) | | Peak Acoustic Output at 2 feet | 104 dB SPL | | Magnetic Shielding | <0.8 gauss any adjacent surface | | Hum & Noise | Better than -68dB below full output | | Electrical Distortion | <0.15% @ any level below limit threshold | | Acoustic Distortion | Frequencies Above 140 Hz (Including Cabinet Resonance): Typically <1.5% (6% or less worst case) | | Acoustic Frequency Response | 80Hz - 16kHz (±5dB) / -10dB @ 40Hz, 20kHz | | Analog Input Impedance | >40 kohm (Balanced) | | Scale Reference | Analog: +8/+6/+4/0 dBu Digital: -20/-18/-9 dBFS | | AES/EBU Input Termination | Balanced: 110 ohm Unbalanced: 75 ohm | | 3G/HD/SD-SDI Input Termination | Unbalanced: 75 ohm | | Electrical Meter Bandwidth | 20Hz - 20kHz (±0.5dB) | | Rack Height | 1RU (requires only 1 slot in standard 19.0" [48.3 cm] rack) | | Power Output | RMS Left Side: 10W (14W Peak) RMS Right Side: 10W (14W Peak) RMS Center Woofer: 25W (35W Peak) | | Power Connector | Standard External Power Cord (for standard US outlet) Alternate Power Cables Available (sold separately) | | Power Requirements | AC 100 - 240 V ±10%, 50/60 Hz | | Power Consumption | 60W | | Dimensions (HxWxD) | 1.75 x 19.0 x 13.5" (4.5 x 48.3 x 34.3 cm) | | Weight | 18 lb (8.2 kg) | | | | Package Weight | 15.65 lb | | Box Dimensions (LxWxH) | 23.7 x 17.1 x 8.4" |
