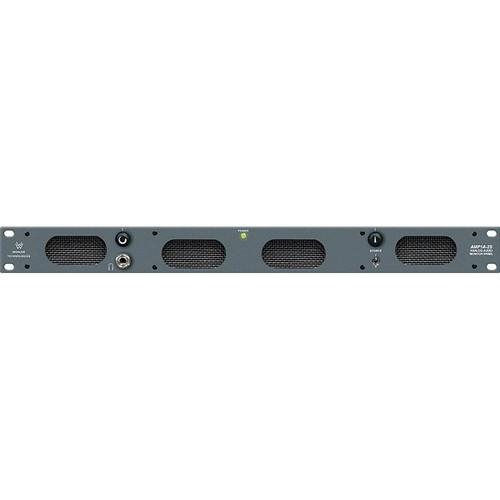

User Manual for Wohler AMP1A-PLUS Active Rackmount Stereo Audio Monitor Click to enlarge the picture
Contents of the user manual for the Wohler AMP1A-PLUS Active Rackmount Stereo Audio
- Product category: Rack Mount Monitors Wohler
- Brand: Wohler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wohler Rack Mount Monitors
|
User manual for the Wohler AMP1A-PLUS Active Rackmount Stereo Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wohler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wohler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wohler product will considerably shorten its lifespan!
|
Product description The Wohler AMP1A-PLUS is a full-range stereo monitoring speaker unit ideal for broadcasting, studio, and other professional applications. The slim 1RU chassis fits in any standard equipment rack and offers 2 pairs of stereo XLR inputs, which can be selected using the onboard toggle switch.
The AMP1A-PLUS features 5 high-performance transducers, which are driven by 3 power amplifiers to deliver the best audio results possible. Two of the driver/amp combinations handle stereo midrange and high frequency audio, while the third center channel reproduces bass info below 500Hz. Output limiters protect the speakers from damage due to overloads, while magnetic shielding provides safe use near video monitors and other equipment. The front panel features a volume control, balance pot, and headphone jack. - Full-range, self-powered stereo monitoring speaker
- Slim 1RU chassis fits in any standard equipment rack
- 2 pairs of stereo XLR inputs let you connect multiple analog audio sources, which can be selected using the onboard toggle switch
- 5 high-performance transducers are driven by 3 power amplifiers to deliver the best audio results possible. Two of the driver/amp combinations handle stereo midrange and high frequency audio, while the third center channel reproduces bass info below 500Hz
- Output limiters protect the speakers from damage due to overloads
- Magnetic shielding provides safe use near video monitors and other equipment
- Front panel features a volume control, balance pot, headphone jack, and power indicator LED
In the Box Wohler AMP1A-PLUS Active Rackmount Stereo Audio Monitor Power Cable 3-Year Limited Warranty User Manual PDF 711kbzxzbxzetdwyceruuuxdwctbzac Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler AMP1A-PLUS Active Rackmount Stereo Audio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler AMP1A Plus Specs | Maximum Amplifier Power | Loudspeakers: 5W RMS, 7W Peak (Each)
Woofer: 11W RMS, 16W Peak (Each) | | Frequency Response | 80Hz - 16kHz | | SPL | 98dB | | Connectors | 2 x Pairs of Stereo XLR Inputs
1 x Stereo XLR Output | | Power Consumption | 35W | | Dimensions (HxWxD) | 1.75 x 19 x 12" (45 x 483 x 305mm) | | Weight | 14 lbs (6.4kg) | | | | Package Weight | 9.9 lb | | Box Dimensions (LxWxH) | 21.9 x 12.3 x 5.6" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
