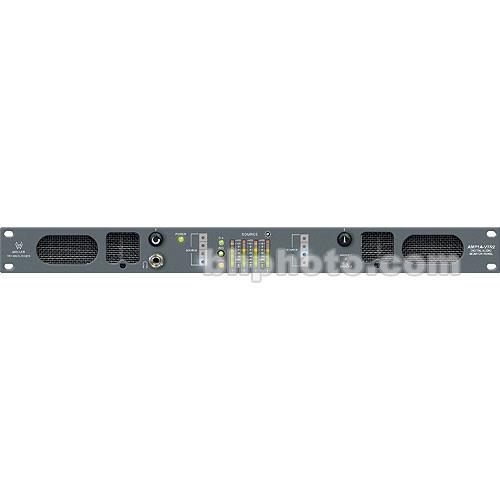

Product description The Wohler AMP1A-VTR2 is a unique, full-range stereo 1RU active monitoring speaker unit, magnetically shielded and equipped with LED metering, a Phase/Polarity LED indicator, separate amplification for both the HF and LF transducers, and eight balanced inputs on phoenix connectors. This rugged, high-output speaker is designed for close monitoring in broadcast, video dubbing, multimedia and teleconferencing applications. - Full-range, high-output ultra-nearfield audio monitoring in 1RU active speaker unit for broadcast, mobile production vehicles, VTR dub facilities, multimedia and teleconferencing monitoring
- Four 26-segment bargraph LED meters with simultaneous VU and PPM display, +12 to -50dB level meter scale
- Dedicated Phase/Polarity LED indicator, dedicated Meter Calibration and Peak Segment DIP switches
- Independent selection of 2 from 4 mono sources(4 Channels x 2 Groups per Channel) to Left and Right Outputs
- Separate amplification for left and right channel HF transducers, woofer
- Powerful 98dB SPL, blowout-proof speakers
- Balanced inputs, balanced XLR loop-thru connectors
- Focused sound design reduces adjacent crosstalk, minimizes travel distance to the ear
- Reliable audible indication of phase and polarity problems
- Magnetically shielded for close proximity use with computer and video monitors
- Headphone output with dedicated volume control, auto speaker mute when in use
In the Box Wohler AMP1A-VTR2 - Active Rackmount Ultra-Nearfield Stereo Speaker Monitoring Unit with 8 Input Channels and Four 26-Segment Meters Power Cable 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler AMP1A-VTR2 - Active Rackmount Ultra-Nearfield Stereo Speaker Monitoring Unit with 8 Input Channels and Four 26-Segment Meters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler AMP1A-VTR2 Specs | Low Frequency Driver | 1 x Woofer (Dual) | | Mid Frequency Driver | No | | High Frequency Driver | 2 x Mid/High Transducers | | LF Amplifier | 1 x 11 Watts | | HF Amplifier | 2 x 5 Watts | | Crossover | 500 Hz | | Frequency Range | 80 Hz - 20 kHz, +/-5dB | | Impedance | 40 kOhms (Balanced) | | Maximum Sound Pressure Level (SPL) | 98dB SPL @ 2' (0.6m) | | Controls and Indicators | 1 x Headphone Volume Control
1 x Speaker Gain Control
2 x Source Selector Knobs
1 x Green Power On LED
4 x Bar Graph LED Meters
1 x Phase/Polarity LED Indicator
4 x Meter Calibration DIP Switches
4 x Peak Segment Display DIP Switches | | Connectors | 8 x Phoenix Terminal Balanced In
2 x 3-pin XLR Male L,R Loop-Thru, Balanced
1 x 1/4" Stereo Headphone Output | | Shielded | Yes | | Dimensions (HxWxD) | 1.75 x 19 x 12" (44.5 x 483 x 305mm) | | Weight | 12 lb (5.5 kg) | | Specialties | 1RU Rackmount Stereo Active Monitoring System
Magnetically Shielded
4 Bar Graph Level Meters |
