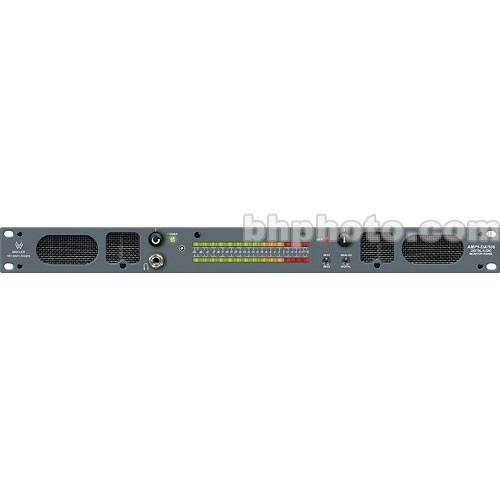

User Manual for Wohler AMP1DA106 Digital 2 4 Channel Audio Monitor Click to enlarge the picture
Contents of the user manual for the Wohler AMP1DA106 Digital 2 4 Channel
- Product category: Rack Mount Monitors Wohler
- Brand: Wohler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wohler Rack Mount Monitors
|
User manual for the Wohler AMP1DA106 Digital 2 4 Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wohler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wohler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wohler product will considerably shorten its lifespan!
|
Product description The Wohler AMP1DA106 Digital 2/4 Channel Audio Monitor is perfect for tight rack situations. In just 1U of rackspace you get self-powered, full-fidelity stereo monitoring. The AMP1DA106 comes with two selectable AES input sources on unbalanced BNC connectors and a stereo analog input source on two balanced XLR connectors. With two balanced XLR connectors, you can take your selected audio source and connect it downstream. The audio amplifier has an amazing five high performance transducers driven by three power amplifiers. Two high-resolution 106-segment tri-color LED bargraph level meters display audio levels for the selected sources.
All AMP1 Digital models come with ganged stereo volume control and balance pot, power indication LED, and headphone output. They also feature extensive magnetic shielding with output limiter circuits built-in to protect the speakers, no matter where you choose to place them. - Space Saver
- The small AMP1DA106 is a true space saver, taking up only one rack unit of space.
- XLR Connectors
- The two pairs of balanced XLR connectors output your source for connection to your downstream equipment.
- Adjustable Level Meters
- Change the level meters to get just the right read out with options that include: Display Mode, Peak Hold, PPM Ballistics, Alternate Scales, and Phase Correlation.
- Output Limiter Circuits
- Built-in output limiter circuits protect your valuable speakers while extensive magnetic shielding allows you the utmost placement flexibility.
In the Box Wohler AMP1DA106 Digital 2/4 Channel Audio Monitor Product Instructions 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler AMP1DA106 Digital 2 4 Channel Audio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler AMP1-DA/106 Specs | Low Frequency Driver | 2 Woofer Speakers | | Mid Frequency Driver | 2 Amplifier/Driver Combinations | | High Frequency Driver | 2 Amplifier/Driver Combinations | | LF Amplifier | Amplifier/Driver | | HF Amplifier | 2 Amplifiers | | Crossover | 500 Hz | | Frequency Range | 80 Hz - 16 kHz | | Maximum Sound Pressure Level (SPL) | 98 dB | | Connectors | 2 XLR, 2 BNC | | Input Impedance | XLR: 40 kohm
BNC: 75 kohm | | Controls and Indicators | Volume Control, Balance Pot, and level meters can be adjusted | | Shielded | Yes, magnetic shielding | | Dimensions (HxWxD) | 1.75 x 19 x 12" (44.5 x 483 x 305mm) | | Weight | 14 lbs (6.4 kg) | | | | Package Weight | 13.85 lb | | Box Dimensions (LxWxH) | 23.5 x 17.4 x 8.0" |
