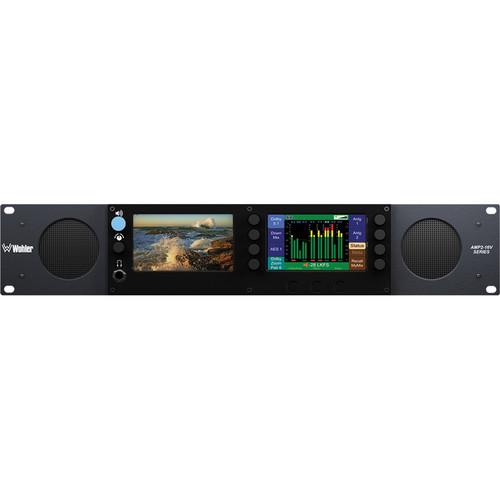

Product description The AMP2-E16V-M 16-Channel Dolby D, E and DD+ Audio / Video Processing Monitor from Wohler Technologies features an open architecture design, good quality, upgradeability, and ease of use. This audio / video processing monitor can analyze audio and video feeds from one compact, convenient, and easy to use workstation. - Full 16 channels of simultaneous, mixed-format audio metering and management
- Customize 2 large high resolution LCD screens to display application specific audio/video data
- 32 presets enable complete reconfiguration of the entire unit with a single button press
- Added support for SMPTE2020 metadata handling, audio delay and loudness monitoring
- Mix, sum, and route program audio live without the need for separate audio console
- Save and copy system presets to other units via Ethernet/Serial connection to PC
- Monitor, mix, route and fully manage SDI embedded audio, AES, analog or even TOSLINK sources
- Ability for re-embedded audio in SDI output
- Dual LCD screens with auto-detecting 3G/HD/SD-SDI video
- 16 hot keys enable one touch access to critical functions
- Fully-customizable level meters including scale, color, range, thresholds, and more
- Single screen view of 16 channel meters/clusters, phase indication, loudness, Dolby presence and hot key assignments
- Menu lockout function and redundant power supplies for secure transmission chain operation (optional)
- The super-pair feature offers additional channel pair (17, 18) to monitor additional two intercom or PL intercom channels
- Field installed options available for 3GB/HD/SD-SDI inputs
In the Box Wohler AMP2-E16V-M 16-Channel Dolby D, E and DD+ Audio / Video Processing Monitor Power Cord Limited 1-Year Warranty on Parts & Labor Note: The warranty can be automatically extended, for audio products only, to a 24 month warranty by registering the serial number of your product online at Wohler's website within 6 months of shipment. Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler AMP2-E16V-M 16-Channel Dolby D, E and DD Audio Video Processing Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler AMP2-E16V-M Specs | Signals Monitored | 3G/HD/SD-SDI | | Output | 8 x Balanced AES output pairs from SDI on 2 HD-15 | | AES/EBU Input Termination | 75 Ω unbalanced | | SDI Inputs | 2 ea 3G/HD/SD-SDI Inputs on BNC | | SDI Input Termination | 75 Ω unbalanced | | SDI Outputs | Re-clocked & re-embedded 3G/HD/SD-SDI output on BNC | | Dolby Inputs | 2 3G/HD/SD-SDI Input on BNC | | Analog Input Impedance | 40 kΩ | | Level Meters | User defined, configurable up to 16 channels and 310 segments | | Level Meter Scale | Selectable AES, VU, Extended VU, BBC, EBU, Nordic, DIN or Custom | | Level Meter Parameters | Range, Threshold, Reference, Segment Colors, Ballistic, Pairwise Phase Indicators Limits, Lower Scale Compression, Arbitrary Phase Indicators | | Level Meter Threshold | Software Select your Level Meter Scale: AES, VU, Ext. VU, BBC, EBU, Nordic, DIN, or set CUSTOM thresholds | | Level Meter Dynamics | Configurable up to simultaneous VU and PPM | | Level Meter Resolution | 0.25 dB to 1 dB, depending on scale selected | | Number of Displays | 1 | | Display Size | 4.3" (10.9 cm) | | Aural Sound Outputs | Wohler speaker system, headphones, mute speakers | | Distortion | Electrical Distortion: <0.15% at any level below limit threshold | | Frequency Response | Acoustic Frequency Response: ± 5 dB between 60 Hz and 16 kHz (-10 dB at 50 Hz, 20 kHz) | | Frequency Response 1/6 Octave | 60 Hz to 16 kHz (+ or -5 dB); (-10 dB @ 50 Hz, 20 kHz) | | Peak Acoustic Output at 2 feet | 104 dB SPL | | Hum and Noise | Better than -75 dB below full output | | Power Requirements | 100 V to 240 VAC ± 10%, 50/60 Hz | | Loudspeaker Power | 15 W per speaker | | Power Output | For RMS Each Side
Transient: 12 W
Continuous: 10W | | Power Consumption | Maximum 150 W | | THD | <0.15% at any level below limit threshold | | Rack Height | 2 RU | | Dimensions | 3.5 x 19.0 x 4.5" (89.0 x 483.0 x 368.0 mm) | | Weight | 23.0 lb (10.4 kg) depending on configuration and optionally installed cards | | | | Package Weight | 20.5 lb | | Box Dimensions (LxWxH) | 24.2 x 20.0 x 8.0" |
