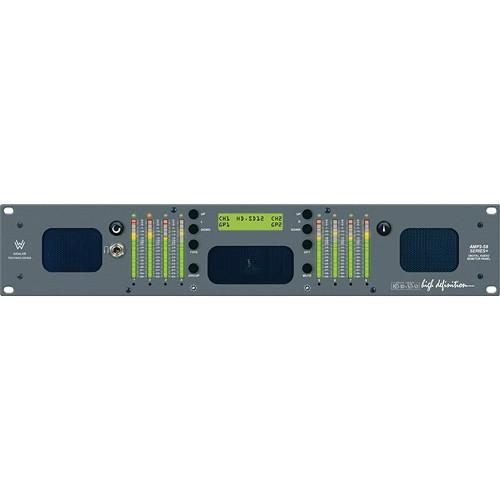

User Manual for Wohler AMP2-S8MDA-3G 8-Channel 3G Multi-Format Audio Monitor Click to enlarge the picture
Contents of the user manual for the Wohler AMP2-S8MDA-3G 8-Channel 3G Multi-Format Audio
- Product category: Rack Mount Monitors Wohler
- Brand: Wohler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wohler Rack Mount Monitors
|
User manual for the Wohler AMP2-S8MDA-3G 8-Channel 3G Multi-Format Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wohler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wohler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wohler product will considerably shorten its lifespan!
|
Product description The Wohler AMP2-S8MDA-3G 8-Channel 3G Multi-Format Audio Monitor affords premium quality 8-channel analog, AES/EBU, 3G/HD/SD-SDI multi-channel audio monitoring and conversion, as well as professional level metering. Each unit features three audiophile-quality drivers and three power amplifiers that reproduce mid range and high frequency information in stereo. The third amp/driver combo outputs summed LF info below the 500 Hz crossover point.The AMP2-S8MDA-3G also has eight 53-segment high-resolution, tri-color LED level meters that reveal simultaneous VU and PPM. Plus, the front panel features an innovative LCD display of phase/polarity relationships. There are output limiter circuits to protect the speakers and extensive magnetic shielding allows placement immediately adjacent to video monitors with no color impurities. It's this unique design that delivers optimally focused sound for operators in an ultra near-field (12 - 36") working environment.Besides superior functionality, the AMP2-S8MDA-3G also boasts a modern design aesthetic and the inclusion of optimized speakers eliminates the need for awkward monitor placement. It also enables a higher sound pressure level (SPL) for the audio engineer, while reducing the overall ambient noise and crosstalk that disrupts authentic and accurate monitoring. Although its 2RU unique design with in-rack monitors and high-quality eight channel processing make this unit ideal for broadcasting and other audio processing applications in any environment, it truly shines when used in VTR bays, mobile production vehicles, teleconferencing installations, multimedia systems, satellite links, cable TV facilities and on-air radio studios. Features - Front panel summing of any combination up to eight channels to the left and/or right speakers and selected analog outputs
- Eight 53-segment tri-color LED bar graphs displaying simultaneous VU and PPM
- Premium quality drivers and power amplifiers
- Audible indications of phase/polarity problems
- Phase-correlation display of selected channels
- Output limiter protected speakers
- Headphone jack (mutes speakers)
Benefits - Thorough magnetic shielding prevents interference from nearby equipment
- Electronic cancellation provides detection of out-of-phase (reversed polarity) audio feeds
- Excellent frequency response and low distortion
- The focused sound reduces adjacent bay crosstalk
- Ultra near-field offers exceptional monitoring performance
- Small rack space requirements make them perfectly suited for use in space-critical environments
In the Box Wohler AMP2-S8MDA-3G 8-Channel 3G Multi-Format Audio Monitor AC External Power Unit / Cord CD-ROM (Software & Product Guide) 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler AMP2-S8MDA-3G 8-Channel 3G Multi-Format Audio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler AMP2-S8MDA Specs | Rack Height | 2 RU in a standard 19" (48.3 cm) rack | | Inputs | 8 Balanced Analog (DB-25) 4 Balanced AES/EBU Pairs (DB-25) 4 Unbalanced AES Pair (4 BNCs) 2 3G/HD/SD-SDI (2 BNCs) (Level A Only) | | Outputs | 1 3G/HD/SD-SDI Re-Clocked (BNC) 4 Balanced AES Pairs Loop Out (DB-25) 4 Unbalanced AES Pairs Out from SDI (HD-15) / Option: 8 Balanced AES Pairs Out from SDI (DB-25) 8 Balanced Metered Analog Out (DB-25) | | Other Connectors | Rear Panel: 2 RS-232 (DB-9) Rear Panel: 1 Remote (DB-9) (Reserved for Future Use) | | Level Meters | 26-Segments x 8 | | Level Meter Scale | 0 to −66 dB | | Level Meter Threshold | 0 / +4 / +6 / +8 DBV (Switch Selectable) | | Level Meter Dynamics | Simultaneous VU & PPM | | Level Meter Resolution | 1.0 dB | | Peak Acoustic Output at 2 feet | 104 dB SPL | | Acoustic Distortion | Frequencies Above 140 Hz (Including Cabinet Resonance): Typically <1.5% (6% or less worst case) | | Electrical Distortion | <0.15% @ any level below limit threshold | | Magnetic Shielding | <0.8 gauss any adjacent surface | | Power Connector | Standard External Power Cord for Standard US Outlet (Alternate Power Cables Available) | | Power Requirements | AC 100 - 240 V ±10%, 50/60 Hz | | Power Consumption | 60W | | Dimensions (HxWxD) | 3.5 x 19.0 x 12.0" (8.9 x 48.3 x 30.5 cm) | | Weight | 22 lb (10 kg) | | | | Package Weight | 22.4 lb | | Box Dimensions (LxWxH) | 23.6 x 17.1 x 8.6" |
