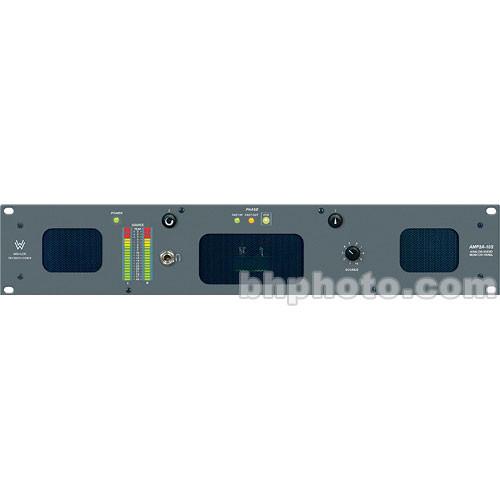

User Manual for Wohler AMP2A-10S - Active Rackmount Ultra-Nearfield Stereo Speaker Monitoring Unit with 10 Stereo Inputs and 20-Segment LED Metering Click to enlarge the picture
Contents of the user manual for the Wohler AMP2A-10S - Active Rackmount Ultra-Nearfield
- Product category: Rack Mount Monitors Wohler
- Brand: Wohler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wohler Rack Mount Monitors
|
User manual for the Wohler AMP2A-10S - Active Rackmount Ultra-Nearfield contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wohler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wohler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wohler product will considerably shorten its lifespan!
|
Product description The Wohler AMP2A-10S is a unique, high-output stereo 2RU active monitoring speaker unit, magnetically shielded and equipped with LED metering, a s et of Phase/Polarity LED indicators, and separate amplification for both the HF and LF transducers, along with 10 stereo balanced inputs on phoenix connectors. This rugged, innovative speaker is designed for close monitoring in broadcast, video dubbing, multimedia and teleconferencing applications. - High-output ultra-nearfield audio monitoring in 2RU active speaker unit for broadcast, mobile production vehicles, VTR dub facilities, multimedia and teleconferencing monitoring
- 20-segment bar-graph LED metering with VU or PPM display with +6 to -40dB level meter scale
- Phase/Polarity Average LED indicators
- 10 balanced stereo inputs on phoenix terminals with 10-way selector knob
- Separate 10-watt and 25-watt amplification for left and right channel HF transducers, woofer
- Powerful 104dB SPL, blowout-proof speakers
- Balanced inputs, balanced XLR loop-thru connectors output selected stereo source
- Focused sound design reduces adjacent crosstalk, minimizes travel distance to the ear
- Reliable audible indication of phase and polarity problems
- Magnetically shielded for close proximity use with computer and video monitors
- Headphone output with dedicated volume control, auto speaker mute when in use
In the Box Wohler AMP2A-10S - Active Rackmount Ultra-Nearfield Stereo Speaker Monitoring Unit with 10 Stereo Inputs and 20-Segment LED Metering Power Cable 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler AMP2A-10S - Active Rackmount Ultra-Nearfield Stereo Speaker Monitoring Unit with 10 Stereo Inputs and 20-Segment LED Metering in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler AMP2A-10S Specs | Low Frequency Driver | 1 x Woofer (Dual) | | Mid Frequency Driver | No | | High Frequency Driver | 2 x Mid/High Transducers | | LF Amplifier | 1 x 25 Watts | | HF Amplifier | 2 x 10 Watts | | Crossover | 500 Hz | | Frequency Range | 80 Hz - 16 kHz, +/-5dB | | Impedance | 40 kOhms (Balanced) | | Maximum Sound Pressure Level (SPL) | 104dB SPL @ 2' (0.6m) | | Controls and Indicators | 1 x Headphone Volume Control
1 x Speaker Gain Control
1 x 10-way Source Selector Knob
1 x Green Power On LED
2 x Bar Graph LED Meters
3 x Phase/Polarity LED Indicators | | Connectors | 2 x 5-Stereo Phoenix Terminals(Ch. A,B) L,R In Balanced
2 x 3-pin XLR Male L,R Loop-Thru, Balanced
1 x 1/4" Stereo Headphone Output | | Shielded | Yes | | Dimensions (HxWxD) | 3.5 x 19 x 12" (89 x 483 x 305mm) | | Weight | 18 lb (8.2 kg) | | Specialties | 2RU Rackmount Stereo Active Monitoring System
Magnetically Shielded
10 Stereo Inputs with Source Selector Knob
Bar Graph Meters and Phase/Polarity LED's | | | | Package Weight | 20.82 lb | | Box Dimensions (LxWxH) | 24.0 x 17.0 x 8.5" |
