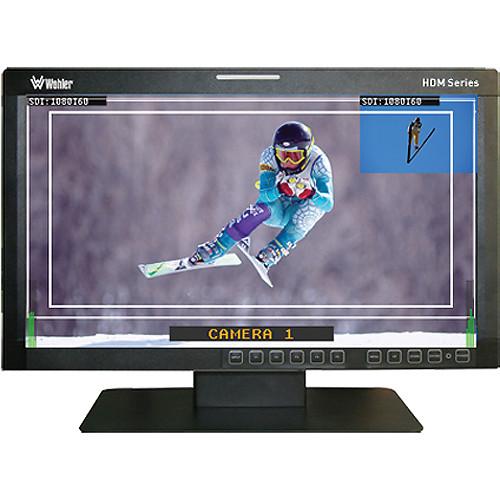

Product description The Wohler HDM-215-3G-TT 21.5" Dual Split Screen High Definition LCD Monitor with Table Top is an LED-backlit high-performance professional monitor that supports 10-bit digital processing technology. This monitor features 3D comb filter, de-interlace, accurate scaling engine, gamma correction, and color temperature adjustment.This monitor from the HDM Series can be configured as a dual split display, a large screen with one smaller view, or as a single large display screen. It is suited for use in news and transmission control rooms, program production, channel branding, and any environment that requires intensive monitoring.It accepts up to 2 channels of 3G / HD / SD-SDI, CVBS, Component signals, or HDMI input. Waveform, vector-scope, and audio de-embedding are provided for SDI. In-picture features also include metering of up to 16 channels, UMD, format display, and various markers. - Simultaneously monitor 2 video sources and control each image independently
- Choose between 2 PIP sizes, PBP (side-by-side), or single full-screen views
- User-defined hot key functionality for either H/V delay, under-scan, on-screen display, and more
- On-screen, 16-channel level metering provides audio confidence monitoring
- Tally and on-screen labeling provide quick and easy signal identification
- CRT-style image controls allow video image enhancement for each screen individually
- Supports multi-format analog and digital audio signals
- Allows adjustment of the parameters for each screen
- Provides high-quality waveform or vector monitoring (for SDI)
- User-adjustable color temperatures with presets
In the Box Wohler HDM-215-3G-TT 21.5" Dual Split Screen High Definition LCD Monitor AC Power Adapter Adjustable Desktop Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler HDM-215-3G-TT 21.5" Dual Split Screen High Definition LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler HDM-215-3G-TT Specs | Display Type | Active color matrix amorphous LCD TFT with RGB backlight | | Display Size | 18.70 x 10.60" (47.50 x 26.92 cm) (H x V) | | Resolution | 1920 H x 1080 V | | Aspect Ratio | 16:9 | | Viewing Angle | 178° x 178° | | Luminance | 300 cd/m2 | | Colors | 10-bit, 1.07 billion | | Contrast | 600:1 | | Pixel Pitch | 0.199 x 0.199 (mm) | | Input Signals | 3G-SDI: 1080P50, 1080P60/59.94HD-SDI: 720P24/23.97, 720P25, 720P30/29.97, 720P50, 720P60/59.94, 1080SF24/23.97, 1035i60/59.94, 1080i50, 1080i60/59.94, 1080P24/23.97, 1080P25, 1080P30/29.97SD-SDI: 480i60/59.94, 576I50, 480P60/59.94, 576P50Analog Composite: PAL, NTSCHDMI Only: 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1400x1050, 1440x900, 1360x768, 1280x1024, 1024x768, 800x600, and 640x480 | | Input | 2 x 3G / HD / SD-SDI1 x HDMI1 x Composite CVBS1 x S Video or 1 Component YPbPr2 x RCA Analog Audio Stereo Input Pairs | | Output | 2 x 3G / HD / SD-SDI1 x Composite Video Loop through Output1 x CVBS / Y Loop through Output1 x C / Pb Loop through Output1 x Component / Pr Loop through Output1 x RCA Analog Audio Stereo Output Pair1 x Headphone Output | | Audio | 2 to 16 OSD meters, 16 channels SDI, 2 pairs analog. Select any embedded or analog pair to send to the speakers, headphones, and line out per menu for each video input | | Space requirements | 9 RU with rack | | Power Connector | AC power adapter (100 to 240 VAC to 12 VDC) | | Power Requirements | AC power adapter connects to mains power (100 to 240 VAC ± 10%, 50/60 Hz) | | Power Consumption | 60 W | | Dimensions | 20.30 x 12.60 x 4.50" (51.56 x 32.00 x 11.43 cm) | | Weight | 13.00 lb (5.90 kg) | | | | Package Weight | 15.2 lb | | Box Dimensions (LxWxH) | 25.3 x 16.7 x 6.4" |
