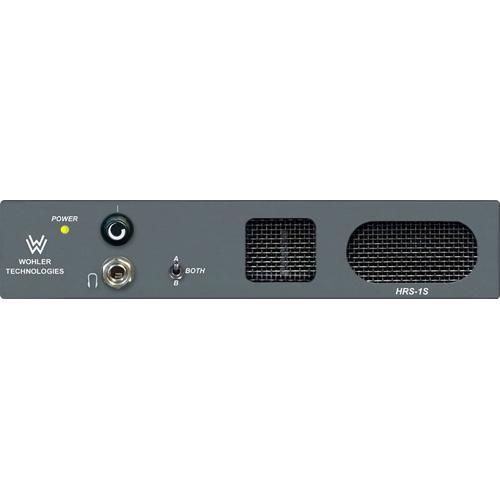

User Manual for Wohler HRS-1S - Half-Rack Analog 2-Channel Audio Monitor Click to enlarge the picture
Contents of the user manual for the Wohler HRS-1S - Half-Rack Analog 2-Channel
- Product category: Rack Mount Monitors Wohler
- Brand: Wohler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wohler Rack Mount Monitors
|
User manual for the Wohler HRS-1S - Half-Rack Analog 2-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wohler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wohler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wohler product will considerably shorten its lifespan!
|
Product description The HRS-1S from Wohler is a half-rack 1U audio monitor with two XLR inputs and outputs. You can monitor the incoming analog signal through its two built-in amplifiers and speakers, or through the headphone jack. It's incredibly small size makes it an excellent choice to critically monitor audio at full-fidelity in situations where physical space is at a premium. The HRS-1S features two speakers and two custom amplifiers that accomplish accurate monitoring in a small footprint. A mid-range speaker reproduces upper and mid frequencies, and a dedicated woofer speaker handles frequencies below 500 Hz. The audio from the input source is outputted on a pair of balanced XLR jacks, so you can share the signal with other equipment. A headphone jack on the front of the HRS-1S mutes the speakers when in use. The audio is summed to mono through the speakers, but on the headphones you have the option of listening in stereo or mono with a handy toggle switch. The HRS-1S is a great ultra-compact and portable solution when you need to reliably monitor audio signals in mobile production vehicles, TV studios, teleconferencing installations, VTR bays, satellite link facilities, and any situation that requires professional monitoring. - Incredibly compact, fits almost anywhere, 1/2 rack wide, 1U high
- Premium quality subwoofer & mid-range speaker
- High-quality AMP series internal amplifier
- 2 balanced analog inputs with loop-through (1 stereo)
- 95 dB SPL at 2 feet (0.6 m)
- Premium quality drivers & power amplifiers
- Extended frequency response and low distortion
- Focused sound reduces adjacent bay crosstalk
- Electronic cancellation of bass frequencies provides audible indication of phase/polarity problems
- Thorough magnetic shielding for placement next to sensitive equipment
- Headphone jack mutes speakers
- Quick and simple installation
In the Box Wohler HRS-1S - Half-Rack Analog 2-Channel Audio Monitor 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler HRS-1S - Half-Rack Analog 2-Channel Audio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler HRS-1S Specs | Rack Height | 1RU (1 Half-Rack Space) | | Analog Inputs | 2 Balanced Analog Inputs on XLR | | Analog Outputs | 2 Balanced Analog Loop-Through Outputs on XLR | | Audio Outputs | 1/4" Headphone Jack (Mutes Speakers when Used)
Mid-Range Speaker
Woofer Speaker | | Controls | Volume, Group Select | | Status Indicator | Power LED | | Shielding | < 0.5 Gauss Any Adjacent Surface | | Hum & Noise | Better than -68 dB Below Full Output | | Frequency Response | 150 Hz - 20 kHz (+/- 5 dB)
(-10 dB @ 50 Hz, 22 kHz) | | Dimensions | 1.75 x 8.5 x 7.5" (44.5 x 216 x 190.5 mm) | | Weight | 2.0 lbs (0.9 kg) | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 17.1 x 14.3 x 4.7" |
