Product description Provided by third party: Wohler Technologies has been in the business of in-rack monitoring for over 25 years. iAM Series re-invented this critical piece of broadcast technology for the modern media enterprise.
iAM-VIDEO is designed to be easy to operate yet powerful enough to provide high quality, intuitive monitoring of multiple signal types within a compact form factor.

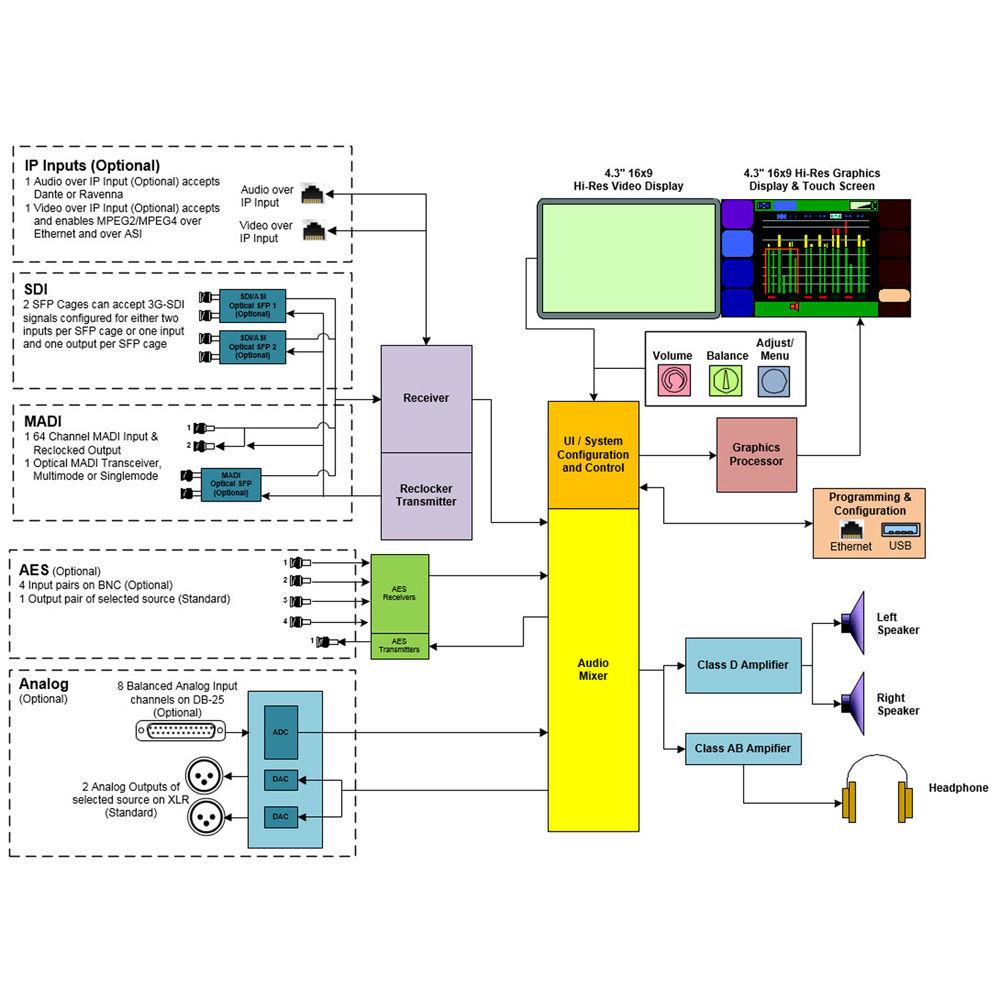

iAM-VIDEO is equipped with a variety of metering options and supports Analog, AES3 and MADI inputs, with options for VoIP formats including MPEG2/4 TS and SMPTE 2022, AoIP formats including Dante, Ravenna and AES67, 3G/HD/SD-SDI and a growing range of additional I/O options via an SFP interface.

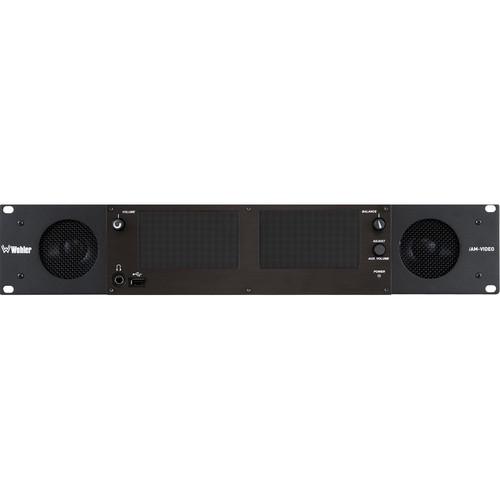

High quality touch screen panels allow for elegant and intuitive control, with simple to navigate menus and configuration. Physical front panel controls provide access to main and auxiliary volume controls, balance control and a front mounting USB port for simple software updates.
All iAM Series monitors are built with an on-board web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.
With both front mounting speakers and sub-woofers, the iAM-VIDEO provides powerful sound output and audio reproduction that adheres to Wohler's own strict specifications.
iAM-VIDEO can be software upgraded to support new and emerging technologies and is the perfect solution for any application that requires a compact unit for monitoring an evolving range of professional signals.
- Key Features
-
- Touch screen front panel for intuitive control
- Built-in speakers, headphone jack, USB and Ethernet ports
- A range of signal inputs, including AoIP, MPEG2/4 and SFP slots for future I/O
- Store and retrieve presets via USB or remote software control
- Software upgradeable, future-proof platform
- API for remote control
Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler Multi-Channel Audio & Video Monitor with 3G-SDI Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

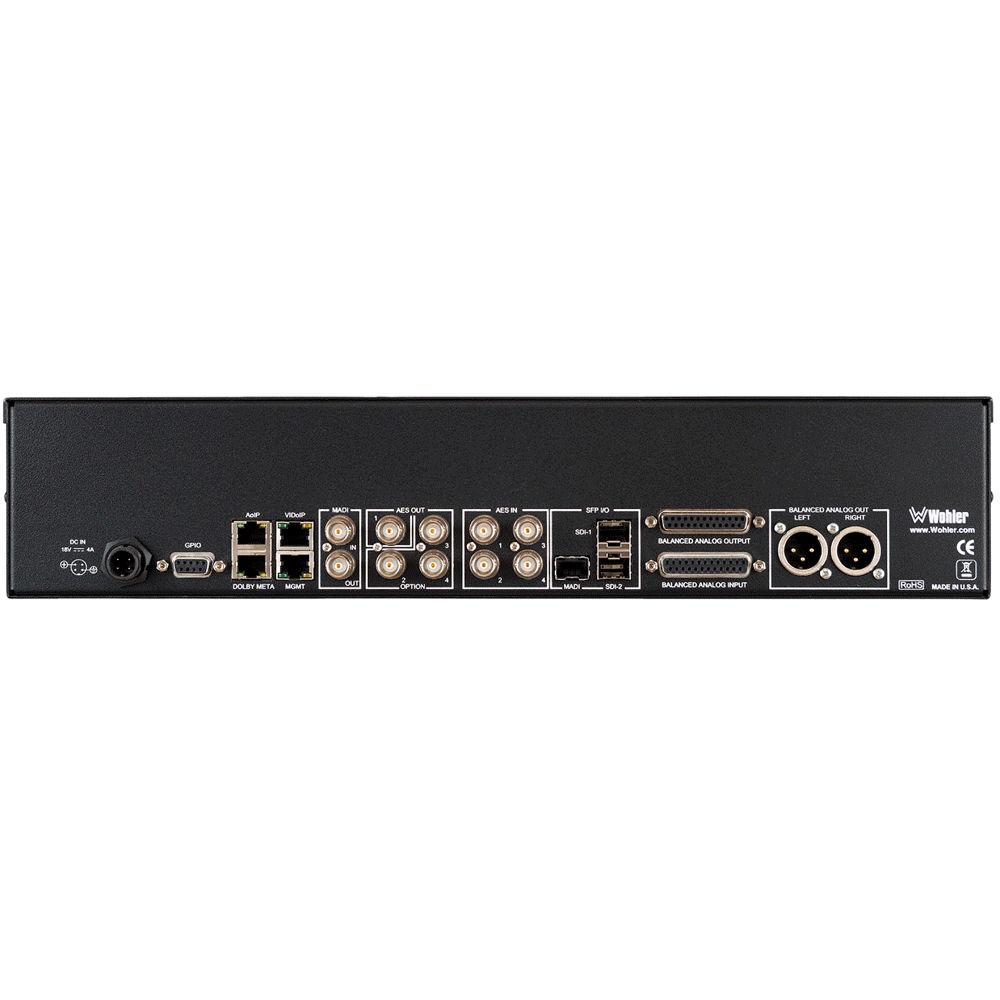

Technical parametersWohler IAM-VIDEO-2 Specs | | | Type | Audio/video program monitor | | Width | 19 in | | Height | 3.5 in | | | | Features | Built-in speakers, touch screen | | | | Low Voltage Power | DC 18 V | | | | Terminals | (1) x headphones - phone stereo 6.3 mm
(1) x USB - 4 pin USB type B
(1) x GPIO - 9 pin D-Sub (DB-9)
(1) x network - RJ-45
(1) x MADI input - BNC
(1) x MADI output - BNC
(4) x AES / EBU output - BNC
(4) x AES / EBU input - BNC
(1) x MADI - SFP
(2) x SDI input/output - SFP
(1) x balanced audio input - 25 pin D-Sub (DB-25)
(1) x balanced audio output - 25 pin D-Sub (DB-25)
(1) x balanced audio output - XLR x 2 |
