User Manual for Wohler Multi-Source Mixing Audio Monitor with Analog Interface

Click to enlarge the picture
Wohler Multi-Source Mixing Audio Monitor with Analog Interface Contents of the user manual for the Wohler Multi-Source Mixing Audio Monitor with
  • Product category: Rack Mount Monitors Wohler
  • Brand: Wohler
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Wohler Rack Mount Monitors

Wohler Multi-Source Mixing Audio Monitor with Analog Interface Wohler Multi-Source Mixing Audio Monitor with Analog Interface
User manual for the Wohler Multi-Source Mixing Audio Monitor with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Wohler product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Wohler user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Wohler product will considerably shorten its lifespan!



Product description

Provided by third party: Wohler Technologies has been in the business of in rack monitoring for over 25 years. iAM Series re-invented this critical piece of broadcast technology for the modern media enterprise.

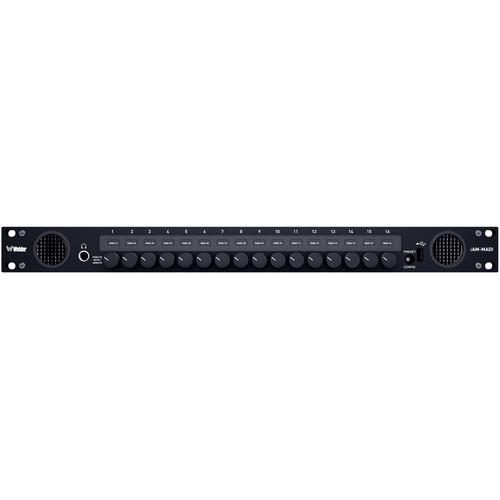

Specifically designed for fast-paced OB, studio and live-to-air production environments, iAM-MIX provides intuitive audio signal monitoring with instant access to 8 stored configurations of any user-defined channel groups for easy navigation between up to 64 channels.

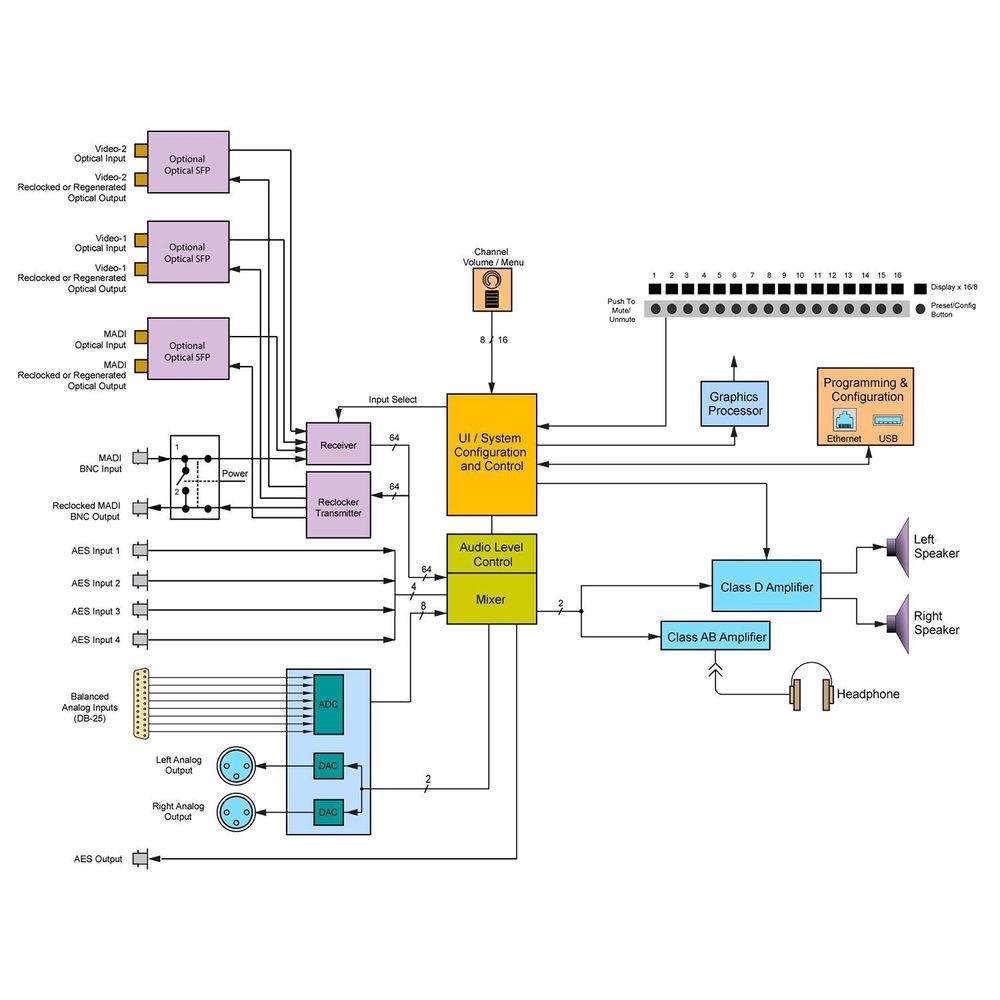

iAM-MIX comes equipped with Analog audio, AES and MADI inputs with options for 3G/HD/SD-SDI and multimode or singlemode fiber MADI interfaces and allows any source format to be routed to the front panel controls for monitoring and mixing. Individual OLED display indicators show status, presence metering and channel name ? which can be manually edited or automatically read from a network connected router.
Multiple units on the same network can be controlled via a browser-based user interface that supports fast configuration with role-based authentication to protect critical configurations. iAM-MIX is the perfect solution for any application that requires a simple, compact solution for monitoring a range of audio signals.
    Key Features
    • Channel names can be displayed for each input
    • Store and retrieve presets via USB or remote software control
    • Built-in speakers, headphone jack, USB and Ethernet ports
    • A range of useful connectors, including SFP slots for future I/O support
    • Open API for remote control, logging and setup
    • Apply software feature upgrades with zero downtime
    • Compact, space-saving units
Table of Contents




Upload User Manual

Have you got an user manual for the Wohler Multi-Source Mixing Audio Monitor with Analog Interface in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Wohler IAM-MIX16 Specs

Type Audio program monitor
Width 19 in
Depth 6 in
Height 1.8 in
Weight 4.41 lbs
Features Built-in speakers
Nominal Voltage AC 120/230 V
Frequency 50/60 Hz
Max Power Consumption 30 W
Low Voltage Power DC 18 V

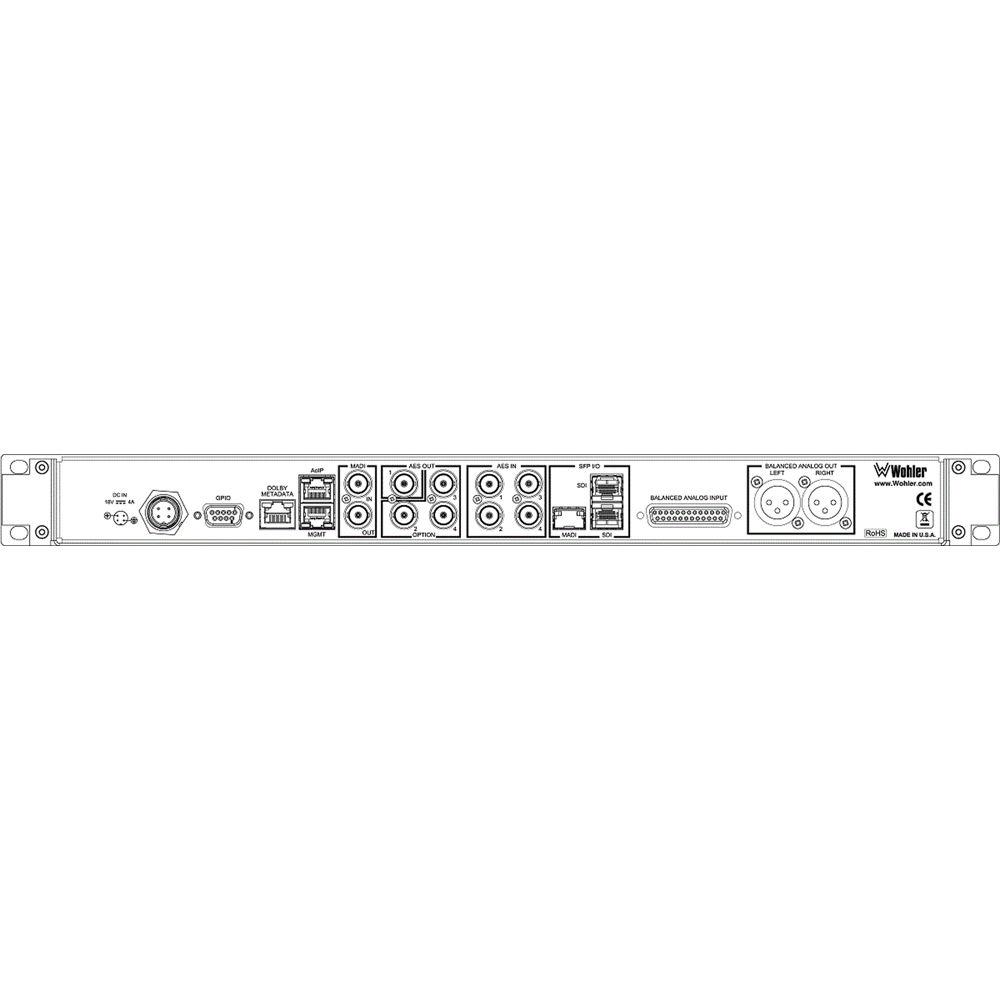

Terminals (1) x headphones - phone stereo 6.3 mm
(1) x USB - 4 pin USB type B
(1) x GPIO - 9 pin D-Sub (DB-9)
(1) x network - RJ-45
(1) x MADI input - BNC
(1) x MADI output - BNC
(4) x AES / EBU output - BNC
(4) x AES / EBU input - BNC
(1) x MADI - SFP
(2) x SDI input/output - SFP
(1) x balanced audio input - 25 pin D-Sub (DB-25)
(1) x balanced audio output - XLR x 2
