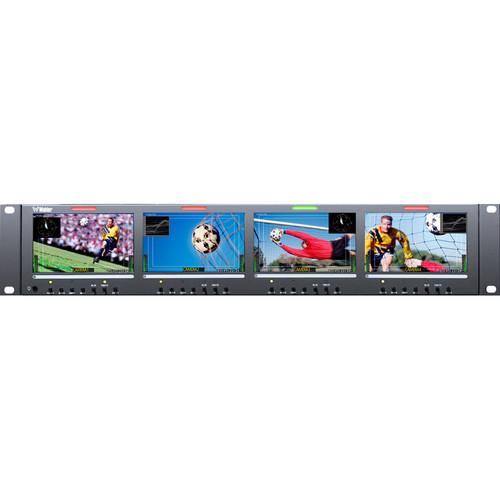

Product description Featuring four 4.3" monitors in a 2 RU rack mountable chassis, the Wohler RM-2443WS-3G2 enables confidence monitoring of multiple 3G/HD/SD-SDI or analog video sources, making it ideal for use in mobile trucks, news control rooms, duplication, and various post production applications. Each LCD screen has a resolution of 800 x 480 and dedicated BNC connectors that auto detect and accept 3G/HD/SD-SDI and composite video input signals. This RM-2443WS-3G2 model also offers a second video input connector for each LCD screen, letting you input two sources per display and switch between them.
For audio, each input is able to detect up to 8 of the 16 channels embedded in the SDI stream, with on-screen level metering letting you monitor each of the 8 channels. A headphone jack is also provided for audibly monitoring selected stereo channels. Additional features include selectable video waveform and vectorscope display, tally, time code, built-in color bars, and an intuitive on-screen configuration menu. Power is provided by an included AC power adapter. - Features
-
- Four 4.3" 800 x 480 LCD screens
- Dual video inputs per screen; accept 3G/HD/SD-SDI and composite video signals (16:9 and 4:3 selectable)
- 2 RU rack mountable design with vertical tilt
- In-picture waveform, and vectorscope display
- Tally and on-screen labeling provide quick and easy signal identification
- Timecode, detected video format, safe area, and title markers display
- On-screen image calibration controls
- CRT-style image controls allow video image enhancement for each screen individually
- Gamma color calibration
- Built-in color bars
- User-defined function buttons
- Intuitive on-screen menu
- Headphone output
In the Box Wohler RM-2443WS-3G2 Quad 4.3" LCD Rack Mount 3G-SDI Monitor with Dual Inputs AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler RM-2443WS-3G2 Quad 4.3" LCD Rack Mount 3G-SDI Monitor with Dual Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler RM-2443WS-3G2 Specs | Number of Displays | 4 | | Screen Type | LCD | | Screen Size | 4.3" (10.9 cm) | | Viewing Angle | 170° x 170° | | Luminance | 300 cd/m2 | | Contrast | 400:1 (typical) | | Color Depth | 8-bit | | Video Inputs/Outputs | 8 x 3G/HD/SD-SDI and Composite video on BNC (two per LCD screen) | | Supported Frame Rates | 60, 59.94, 50, 48, 30, 29.97, 25, 24 | | Audio Inputs | 8 channels embedded audio over SDI | | Audio Output | 3.5 mm headphone jack | | Control Interfaces | GPI x8 (DB9 connector)
RS-485 (RJ-45 connector) | | Power Requirement | 12 VDC | | Power Consumption | 10 W (3.8 A max.) | | AC Adapter | 100 to 240 VAC | | Rack Height | 2 RU | | Dimensions | 3.5 x 19 x 2.4" (8.9 x 48.3 x 6.1 cm) | | | | Package Weight | 7.1 lb | | Box Dimensions (LxWxH) | 24.2 x 11.3 x 7.8" |
