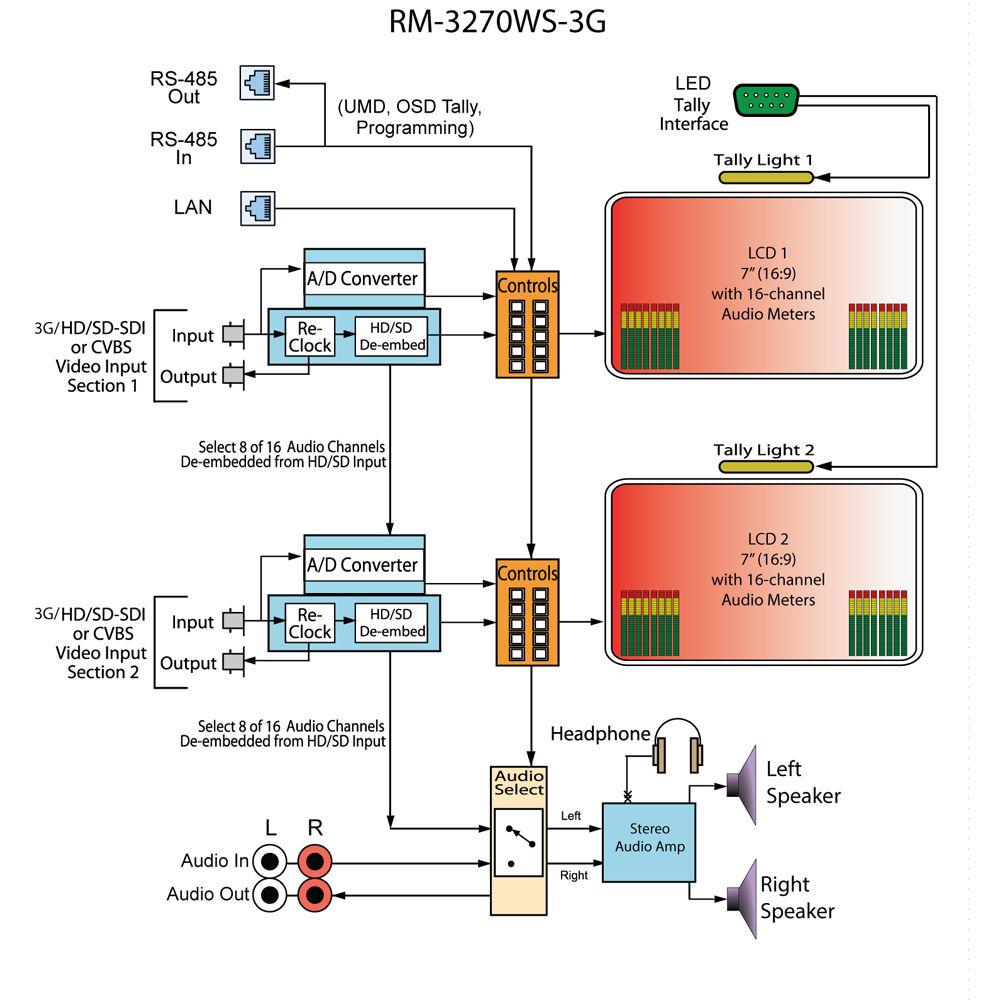

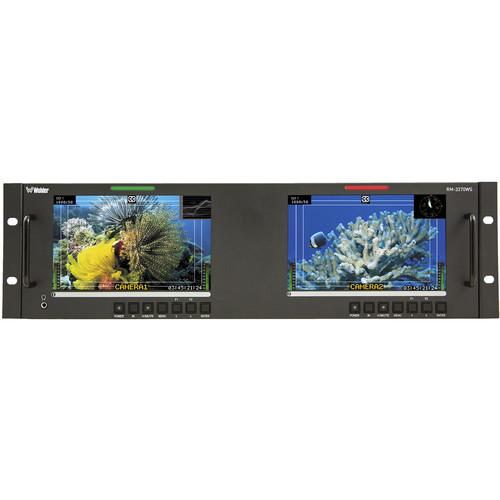

Product description The 7" RM-3270WS-3G Dual 3G/HD/SD-SDI Video Monitor from Wohler is a multi-featured in-rack 3G/HD/SD-SDI and CVBS video monitor designed for the many feeds in mobile trucks, news and transmission control rooms, duplication, and post production applications. This dual-tilting monitor comes standard with in-monitor level metering, selectable video waveform and vectorscope, safe and title markers, labeling, tally, timecode, video format, built-in color bars, and an intuitive on-screen configuration menu.Input signals are automatically detected, and up to eight of the 16 audio channels embedded in an HD/SD-SDI bit-stream may be selected for visual monitoring on eight on-screen bar graph-style level meters on the HD and 2HD models. A headphone jack or speaker (sold separately) can provide audible stereo monitoring of selected left and right channels. Each of the two high-resolution LCD screens display high-definition or standard video at either 16:9 or 4:3 aspect ratio. Parameters are selected and adjusted using an on-screen display menu. - In-picture level metering, waveform, and vectorscope display
- Labeling, tally, timecode, detected video format, safe area, and title markers display
- User-defined function buttons
- User-defined hot key functionality provides either H/V delay, underscan, on-screen display, and more
- On-screen level meters provide confidential audio monitoring
- Tally and on-screen labeling allow for quick and easy signal identification
- CRT-style image controls offer video image enhancement for each screen individually
In the Box Wohler RM-3270WS-3G Dual 3G/HD/SD-SDI Video Monitor (7") AC Power Cord Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler RM-3270WS-3G Dual 3G HD SD-SDI Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler RM-3270WS-3G Specs | | | Signal Inputs | 2 x Auto-sensing 3G/HD/SD-SDI, CVBS input on BNC (one per screen)
2 x RCA analog audio stereo input pair (one per screen) | | Signal Output | 2 x HD/SD-SDI, CVBS output on BNC (one per screen)
2 x RCA analog audio stereo output pair
1 x 1 x 3.5 mm Mini headphone jack | | | | Level Meters | On-screen 16-channel level metering | | | | Display Type | Active color matrix amorphous 7", LCD TFT screens | | Number of Displays | Two | | Display Size | 7" (18 cm) Diagonal | | Viewing Area (HxV) | 6.0 × 3.5" (15.0 x 8.8 cm) | | Aspect Ratio | 16:9 Native
4:3 Selectable | | Resolution | 800 x 480 | | Viewing Angle (H x V) | 135° x 110° | | Pixel Pitch (HxV) | 0.1905 x 0.1905 mm | | Pixel Response | <16 ms off-on-off (black to white to black) | | Luminance | 350 cd/m^2 | | Contrast | 700:1 | | Video Format | SDI | | Color Depth | 16.7 Million | | | | Space requirements | 3 RU In standard 19" rack | | Power Connector | AC power adapter
100-240 VAC to 12 VDC | | Power Requirement | Power to the unit connects to mains power
100 to 240 VAC ± 10%, 50/60 Hz | | Power Consumption | 10 W | | Dimensions | 5.3 x 19.1 x 2.6" (13.3 x 48.6 x 6.7 cm) | | Weight | 6 lb (2.7 kg) | | | | Box Dimensions (LxWxH) | 24.0 x 10.0 x 7.0" |
