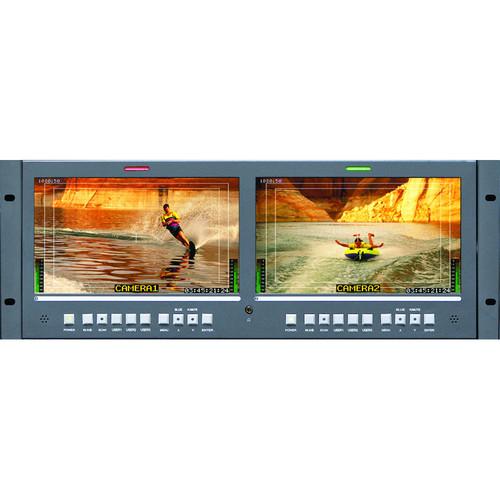

Product description The RM Series Dual 10” 3G/HD/SD-SDI/Analog Video Monitor from Wohler is a full-featured video monitor for the many feeds in mobile trucks, news and transmission control rooms, duplication, and post production applications. This monitor comes with in-monitor level metering, selectable video waveform and vectorscope, safe and title markers, labeling, tally, timecode, video format, and built-in color bars, as well as familiar CRT-style picture controls and an intuitive on-screen configuration menu.Input signals are automatically detected and embedded audio in a 3G/HD/SD-SDI bitstream may be selected for visual monitoring on-screen via bar graph style level meters. A headphone jack provides audible stereo monitoring of selected left and right channels. The high-resolution LCD screen displays high-definition video and comes with a selectable aspect ratio of either 16:9 or 4:3. Parameters can be selected and adjusted using an on-screen display menu. -
- On-screen level meters provide confidence audio monitoring
- Tally and on-screen labeling provide quick and easy signal identification
- CRT-style image controls allow video image enhancement for each screen individually
- User defined hot key functionality provides either H/V delay, underscan, on-screen display, and more
- In-picture waveform, and vectorscope display
- Labelling, tally, timecode, detected video format, safe area and title markers display
- On-screen image calibration controls
- Gamma color calibration
- Built-in color bars
- User-defined function buttons
- Intuitive on-screen menu
- Headphone output
In the Box Wohler RM Series Dual 10" 3G/HD/SD-SDI/Analog Video Monitor - Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler RM Series Dual 10" 3G HD SD-SDI Analog Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler RM-4210WS-3G2 Specs | Display Resolution | 1920 x 1080 | | Aspect Ratio | 16:9, 4:3 (selectable) | | Video Frame Rate | 60, 59.94, 50, 48, 30, 29.97, 25, 24 | | Viewing Angle (H x V) | 170 x 170° | | Luminance | 165 cd/m2 | | Contrast | 400:1 (typical) | | Color Depth | 16.7 M | | Video Inputs | 8 x Auto sensing 3G-/HD/SD-SDI/CVBS on BNC | | Audio Inputs | Embedded audio on SD | | Audio Outputs | 2 x Stereo Speakers 5 W | | Analog Audio Output | 2 x RCA jack | | OSD Audio Meters | 2-16 channels for each display window, from SDI | | Control Interfaces | 8 x GPI on DB9
1 x RS-485 on RJ45 | | Dimension | 7.0 x 19 x 2.5" (18 x 48 x 6.3 cm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 24.3 x 11.5 x 7.5" |
