User Manual for Wooden Camera 148300 2-Arm NATO Cage Click to enlarge the picture
Contents of the user manual for the Wooden Camera 148300 2-Arm NATO Cage
- Product category: Camcorder Supports & Rigs Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Camcorder Supports & Rigs
|
User manual for the Wooden Camera 148300 2-Arm NATO Cage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

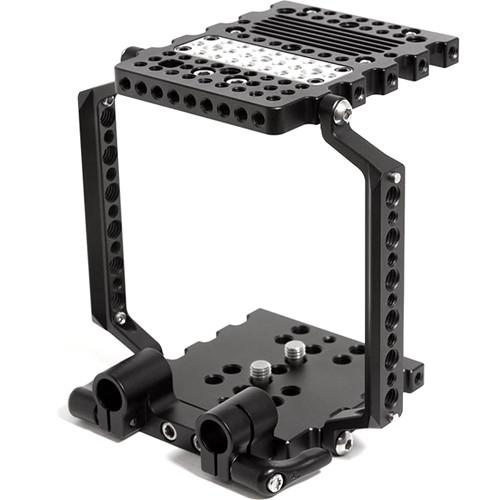

Product description The Wooden Camera 148300 2-Arm NATO Cage turns the RED Epic and Scarlet cameras into production-ready tools. This NATO cage includes an Easy Top X top plate, the Easy Riser, an LW 15mm Bracket, and 2 Safety Arms. This cage features arrays of mounting holes in RED standard spacing.
The Easy Top X is a top plate that features arrays of 1/4-20 holes in RED spacing and multiple 3/8-16 holes for large accessories. The removable Link Cover is used when the longest REDmote range is required. The Easy Top X comes with two 1/4-20 x 1/2" & four m4 x 12mm screws.
The Easy Riser shim plate combines with bridgeplate (0.74” / 19mm and 0.59” / 15mm studio) or original ET baseplates for rod support at the correct lens height. Two sets of mounting holes allow the camera to be positioned toward the front of the baseplate.
The Easy Riser plate combines with the included LW 15mm Bracket to allow attachment of lightweight rods at the correct lens height. It comes with 2 captured 3/8-16 riser screws.
The 2 Safety Arms are NATO standard side mounting arms that easily attach to the Easy Top X and Easy Riser to expand the mounting surface for accessories. Spring loaded pins on each end prevent accidental accessory removal. These arms are compatible with VF top and bottom plates and come with 2 1/4-20 x 1/2" screws. - Easy Top X features arrays of 1/4-20 holes in RED spacing and multiple 3/8-16 holes for large accessories
- Easy Riser shim plate combines with bridgeplate or original ET baseplates for rod support at the correct lens height
- Two sets of mounting holes allow camera positioning toward the front of the baseplate
- Easy Riser plate combines with the LW 15mm Bracket to allow attachment of lightweight rods at the correct lens height
- NATO standard side mounting arms easily attach to the Easy Top X and Easy Riser to expand the mounting surface for accessories
- Spring loaded pins on each end prevent accidental accessory removal
UPC: 610079105317 In the Box Wooden Camera 148300 2-Arm NATO Cage Easy Top X Plate for Select RED Cameras Easy Riser Baseplate for Epic and Scarlet Cameras LW 15mm Bracket for Epic or Scarlet Cameras 2 x Safety Arm for RED Cameras 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera 148300 2-Arm NATO Cage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 148300 Specs | Dimensions | 6.5 x 6 x 6.5" (165.1 x 152.4 x 165.1 mm)
Easy Top X: 4.8 x 3.9 x .5" (121.92 x 99.06 x 127 mm)
Easy Riser: 3.9 x 3.8 x .5" (99.06 x 96.52 x 127 mm)
LW 15mm Bracket: 5.1 x 1.4 x 1.3" (129.54 x 35.56 x 33.02 mm)
Safety Arm: 6.2 x .9 x 1.5" (157.48 x 228.6 x 38.1 mm) | | Weight | 1.5 lb (0.68 kg)
Easy Top X: 0.4 lb (0.18 kg)
Easy Riser: 0.4 lb (0.18 kg)
LW 15mm Bracket: 0.3 lb (0.13 kg)
Safety Arm: 0.1 lb (0.04 kg) | | | | Box Dimensions (LxWxH) | 6.5 x 6.5 x 6.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
