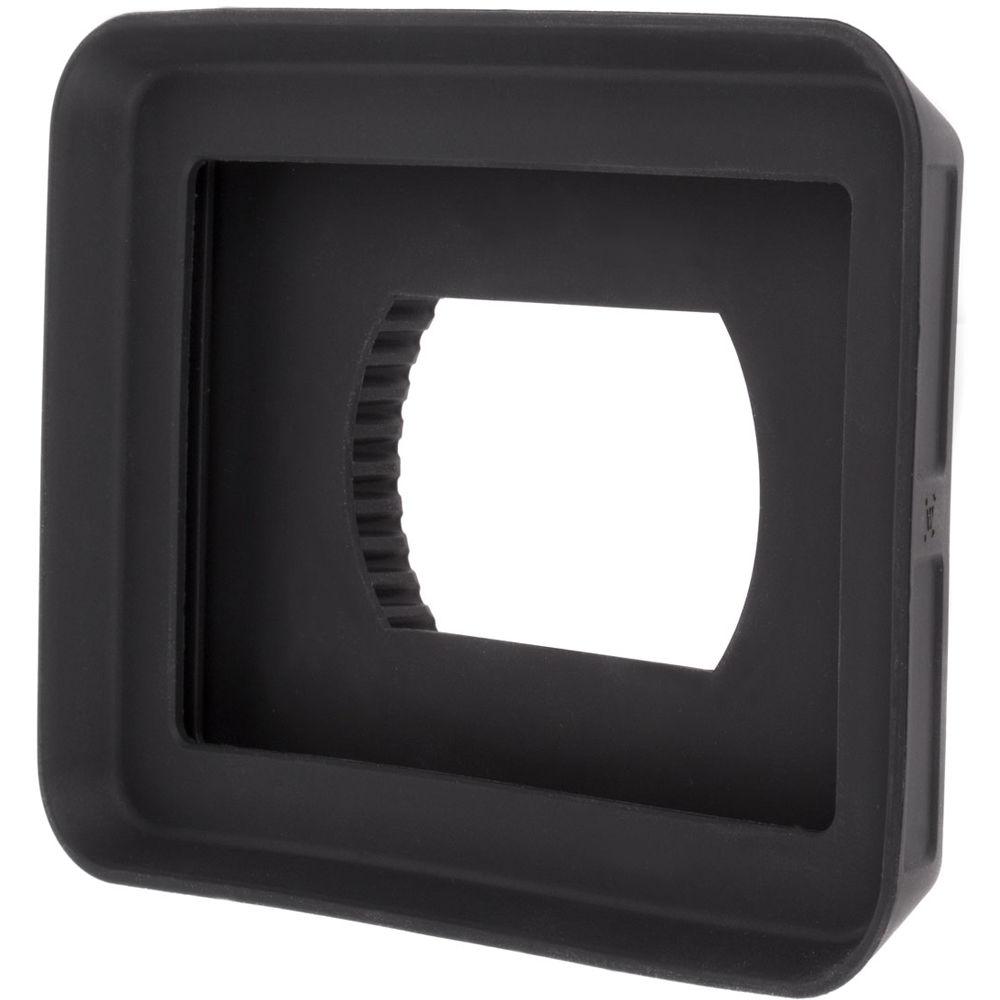

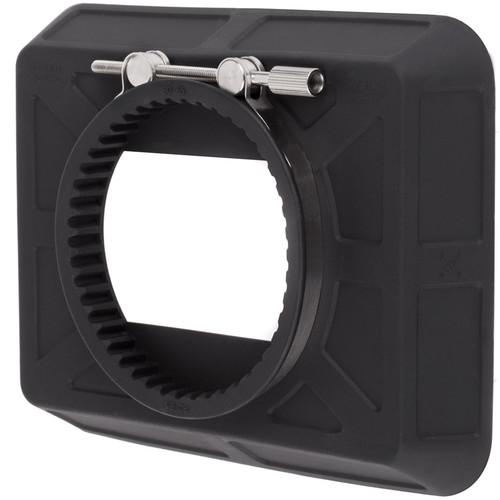

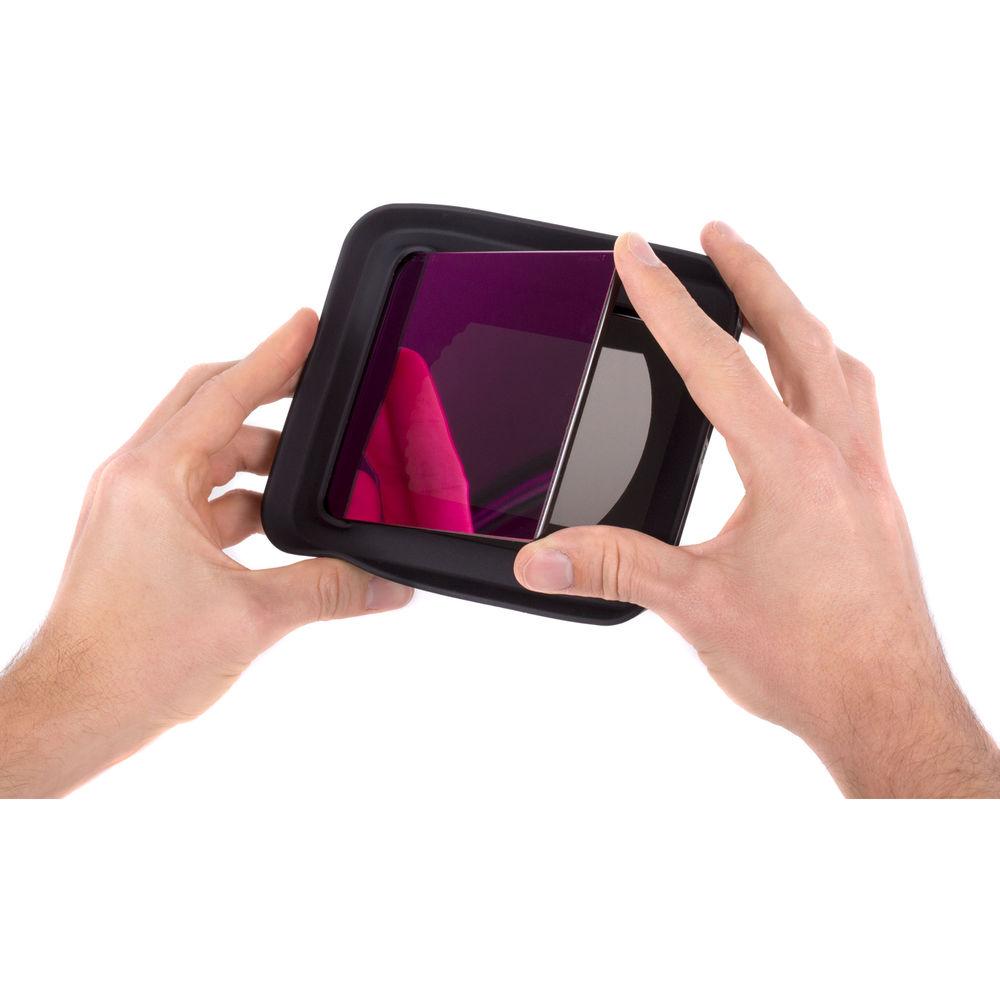

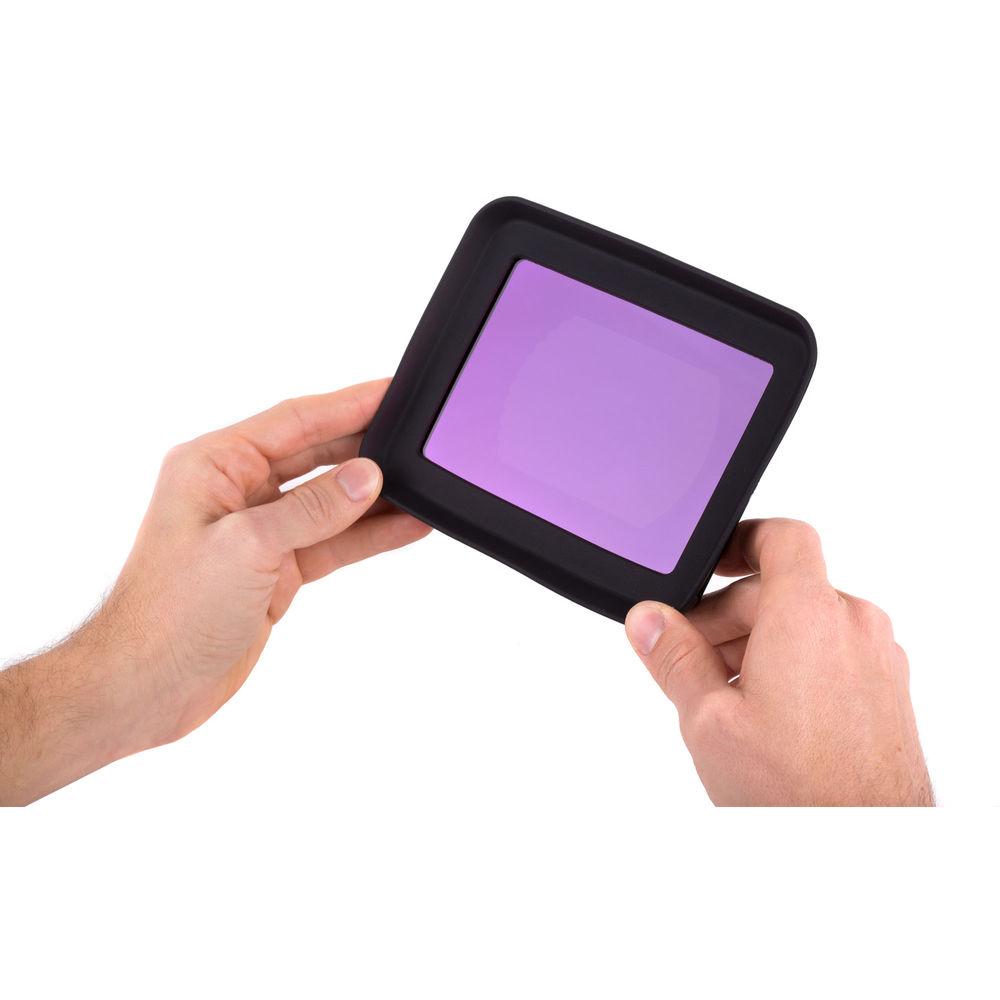

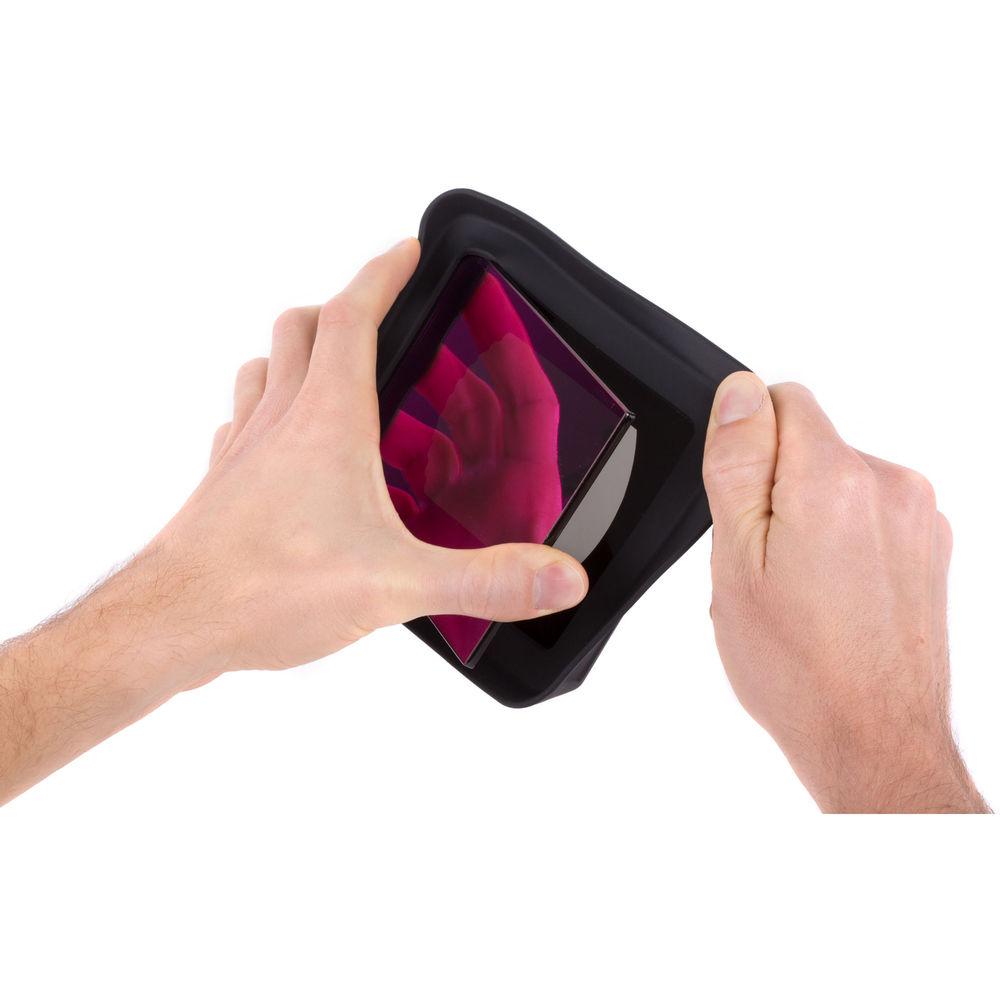

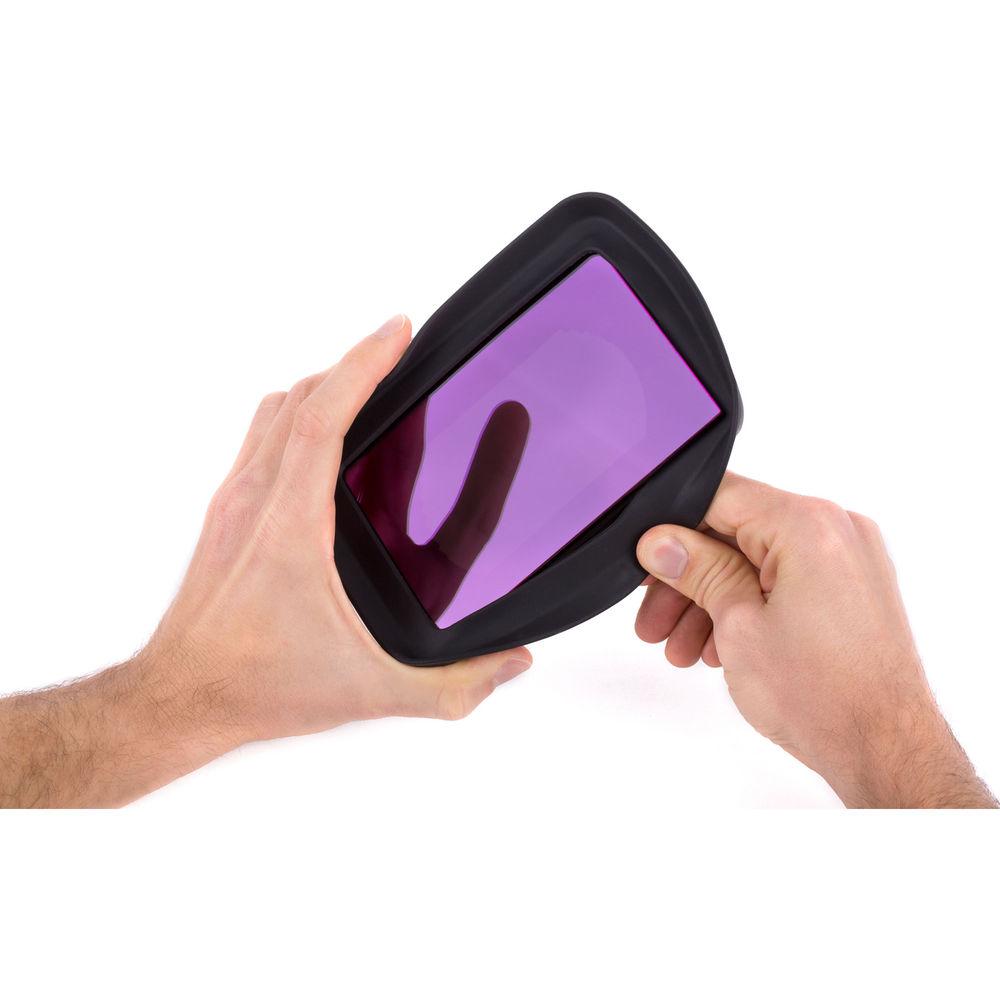

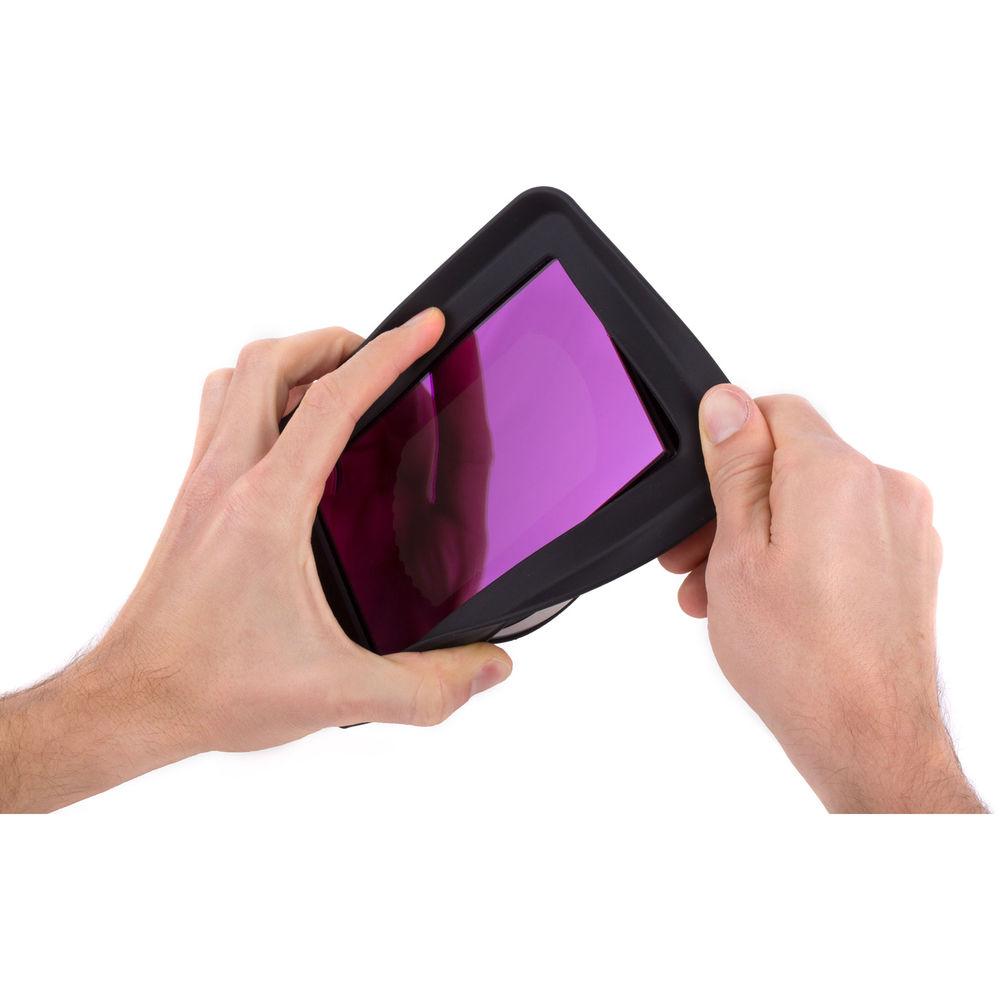

Product description The 2-Stage Clamp-On Zip Box (80-85mm) from Wooden Camera is a lightweight matte box/sunshade. It holds up to two 4 x 5.65" filters and will fit lenses with a front diameter of 3.1-3.3". Flex the rubber body to snugly fit around the filter(s), then tighten the thumbscrew to clamp the Zip Box onto the lens. Its wide design prevents vignetting even when used with wide lenses and large camera sensors. This matte box features a durable, unibody rubber design and stainless steel hardware. Note: To ensure compatibility, use the outside lens diameter measurement, not the threaded filter ring size. - Compatible Lenses
- Not a comprehensive list, check your lens diameter for compatibility; adapter rings are available separately
Cinema Lenses:
ARRI Standard Speed 16/24/32/40/50/85/100/135mm T1.3
ARRI Super Speed 18/25/35/50/65/85mm T1.3
ARRI Macro 16/24/32/40/50/60/100/200mm T2.1
COOKE Speed Panchro 18/25mm SII/III
COOKE Speed Panchro 32/40/50/75/100mm SII
Duclos Tokina 11-16mm
Canon Lenses:
Canon EF-S 10-22mm f/3.5-4.5 USM
Canon EF 16-35 2.8L USM
Canon EF 17-40mm f/4L USM
Canon EF-S 17-55mm f/2.8 IS USM
Canon EF 20-35 3.5-4.5 USM
Canon EF 24mm f/1.4L USM
Canon EF 24mm f/1.4L II USM
Canon EF 24-70mm f/2.8L USM
Canon EF 24-70mm f/4L IS USM
Canon EF 24-105mm f/4L IS USM
Canon EF 28-70 2.8L USM
Canon EF 28-300mm f/3.5-5.6L IS USM
Canon EF 300 2.8 L USM
Leica Lenses:
Leica Super-Elmar-M 18 mm f/ 3.8 ASPH (using Leica's 77mm adapter)
Most Leica lenses utilize smaller front diameters which require the Zip Box Adapter Rings (49, 52, 55, 58, 62, 67, 72, 77mm)
Nikon Lenses:
Nikon AF-S Nikkor 20mm f/1.8G ED
Nikon AF-S Nikkor 24mm f/1.4G ED
Nikon AF-S Nikkor 85mm f/1.4G
Nikon AF-S Nikkor 300mm f/4E PF ED VR
Nikon AF-S Nikkor 300mm f/4D IF-ED
Nikon AF-S DX Zoom-Nikkor 10-24mm f/3.5-4.5G ED
Nikon AF-S Zoom-Nikkor DX 12-24mm f/4G IF-ED
Nikon AF-S Zoom-Nikkor 16-35mm f/4G ED VR
Nikon AF-S Zoom-Nikkor 17-35mm f/2.8D IF-ED
Nikon AF-S Zoom-Nikkor 18-35mm f/3.5-4.5G ED
Nikon AF-S DX Zoom-Nikkor 17-55mm f/2.8G IF-ED
Nikon AF-S Zoom-Nikkor 24-70mm f/2.8G IF-ED
Nikon AF-S Zoom-Nikkor 24-120mm f/4G ED VR
Nikon AF-S Zoom-Nikkor 28-70mm f/2.8D IF-ED
Nikon AF-S Zoom-Nikkor 28-300mm f/3.5-5.6G ED VR
Nikon AF-S Zoom-Nikkor 70-200mm f/2.8G VR IF-ED
Nikon AF-S Zoom-Nikkor 70-200mm f/2.8G ED VR II
Nikon AF-S Zoom-Nikkor 70-200mm f/2.8G ED VR II
Nikon AF-S Zoom-Nikkor 80-200mm f/2.8D ED
Nikon AF-S Zoom-Nikkor 80-400mm f/4.5-5.6G ED VR
Sony Lenses:
Sony Carl Zeiss Vario-Sonnar T* 16-35 mm f/ 2.8 ZA Sony Carl Zeiss Vario-Sonnar T* 24-70 mm f/ 2.8 ZA
Most Sony lenses utilize smaller front diameters which require the Zip Box Adapter Rings (49, 52, 55, 58, 62, 67, 72, 77mm)
Zeiss Lenses:
Carl Zeiss Planar T* 55 mm f/ 1.2 C/Y
Carl Zeiss Planar T* 85 mm f/ 1.2 C/Y
3rd Party Lenses:
Tokina 11-16mm f/2.8 PRO DX II
Tokina 12-24mm f/4 PRO DX II
Tokina 12-28mm f/4 PRO DX
Tokina 16-50mm f/2.8 PRO DX
Tokina 16.5-135mm f/3.5-5.6 DX
Tokina 17 mm f/3.5 AF PRO
Tokina 19-35 mm f/3.5-4.5 AF
Tokina 20-35 mm f/2.8 AF PRO Features - Fits lenses with an outside front diameter of 3.1-3.3" (80-85 mm)
- Durable rubber and stainless steel clamp-on design

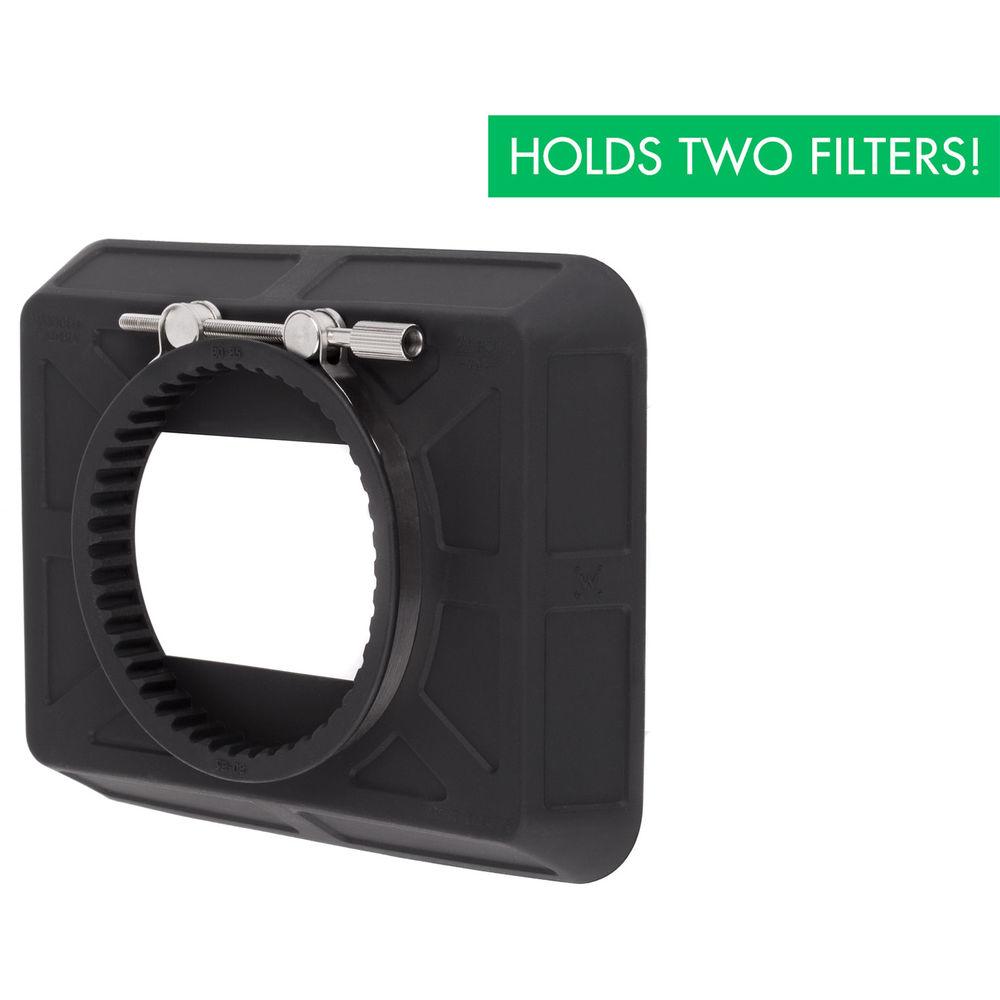

- Lightweight body flexes to hold one or two 4 x 5.65 filters without trays
- Wide sunshade design helps to avoid vignetting on wide lenses
UPC: 606184853106 In the Box Wooden Camera 2-Stage Clamp-On 4 x 5.65" Zip Box (80-85mm) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera 2-Stage Clamp-On 4 x 5.65" Zip Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 241600 Specs | Front Lens Diameter | Fits: 3.1-3.3" (80-85 mm) | | Type | Clamp-on | | Filter Type | 4 x 5.65" (101.6 x 143.5 mm) | | Total Filter Stages | 2 | | Materials | Rubber, stainless steel | | Dimensions (WxHxD) | 6.75 x 5 x 1.5" (17.15 x 12.7 x 3.81 cm) | | Weight | 4.8 oz (136 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.0 x 5.8 x 1.8" |
