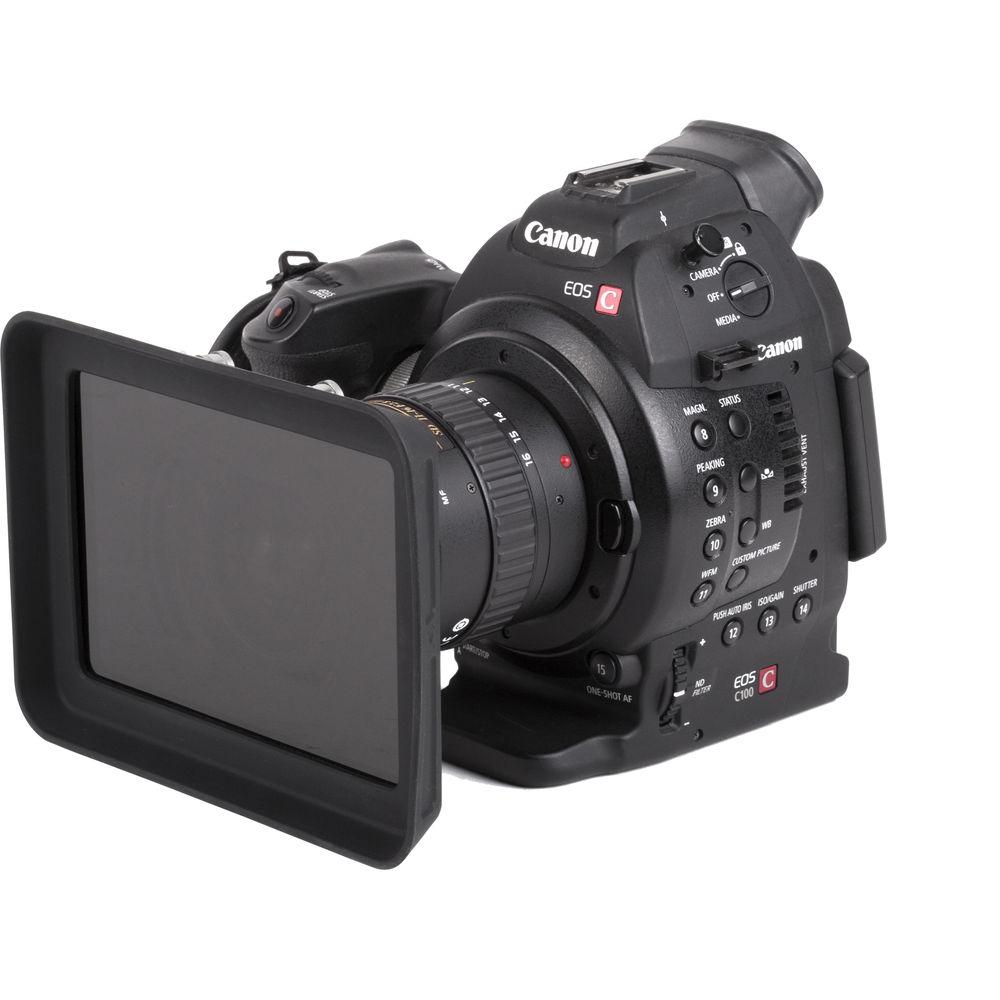

Product description The Wooden Camera Zip Box holds one 4 x 5.65" filter and is useful for handheld, stabilized, and drone filming where a small profile and low weight is desirable. The Zip Box clamps to the front of lenses with exterior diameter ranging from 80-85mm. The design of the rubber hood allows you to use the Zip Box with many wide-angle lenses without vignetting.

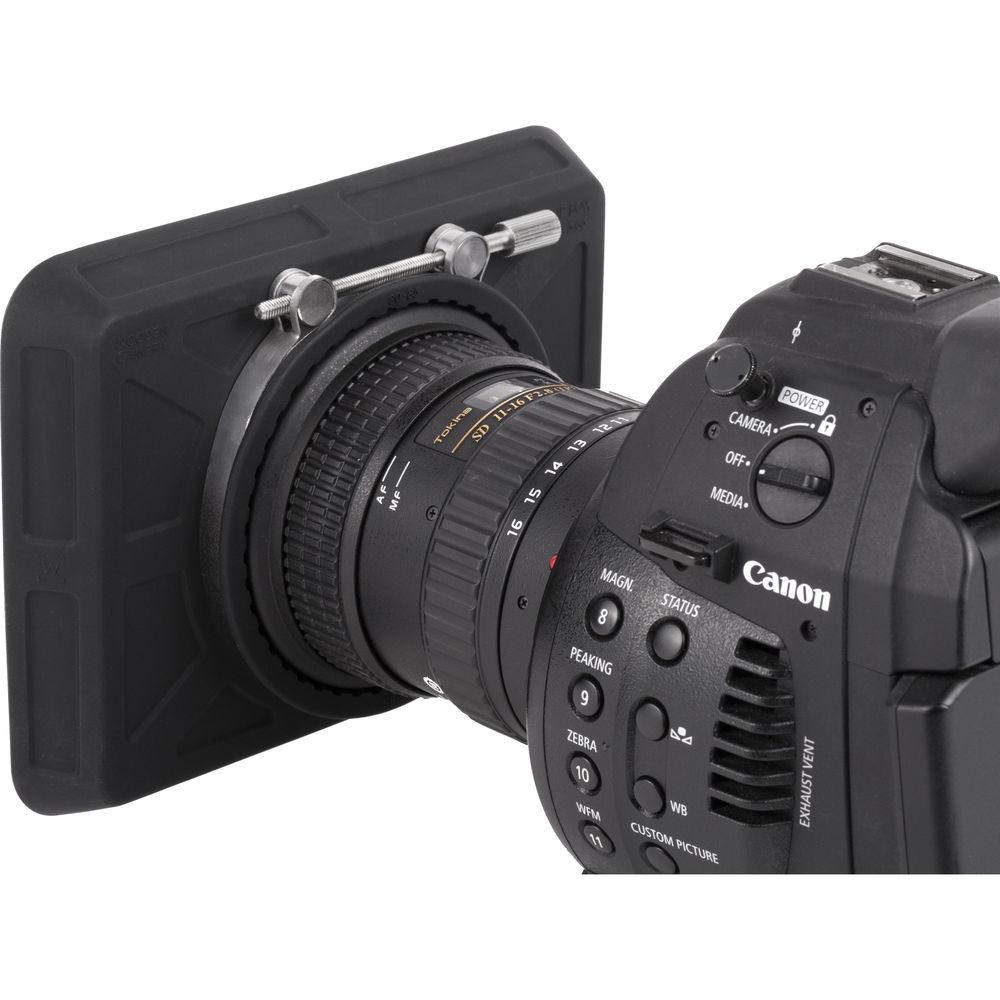

You might more accurately refer to the Zip Box as a filter holder instead of a matte box as it is designed to hold a single filter and when empty weighs about the same as a standard filter. The unibody rubber design and stainless steel clamp provide a secure grip on your lens. Optional Zip Box Adapter Rings are available for adapting this Zip Box to work with select lenses that have an outer diameter smaller than 80mm and a variety of threaded lens fronts. - Non-Rotating Front
- As with all clamp-on hoods, it is advisable to use the Zip Box on a lens with a non-rotating front, or the filter will rotate while focusing and may vignette your image.
- Filter Attachment

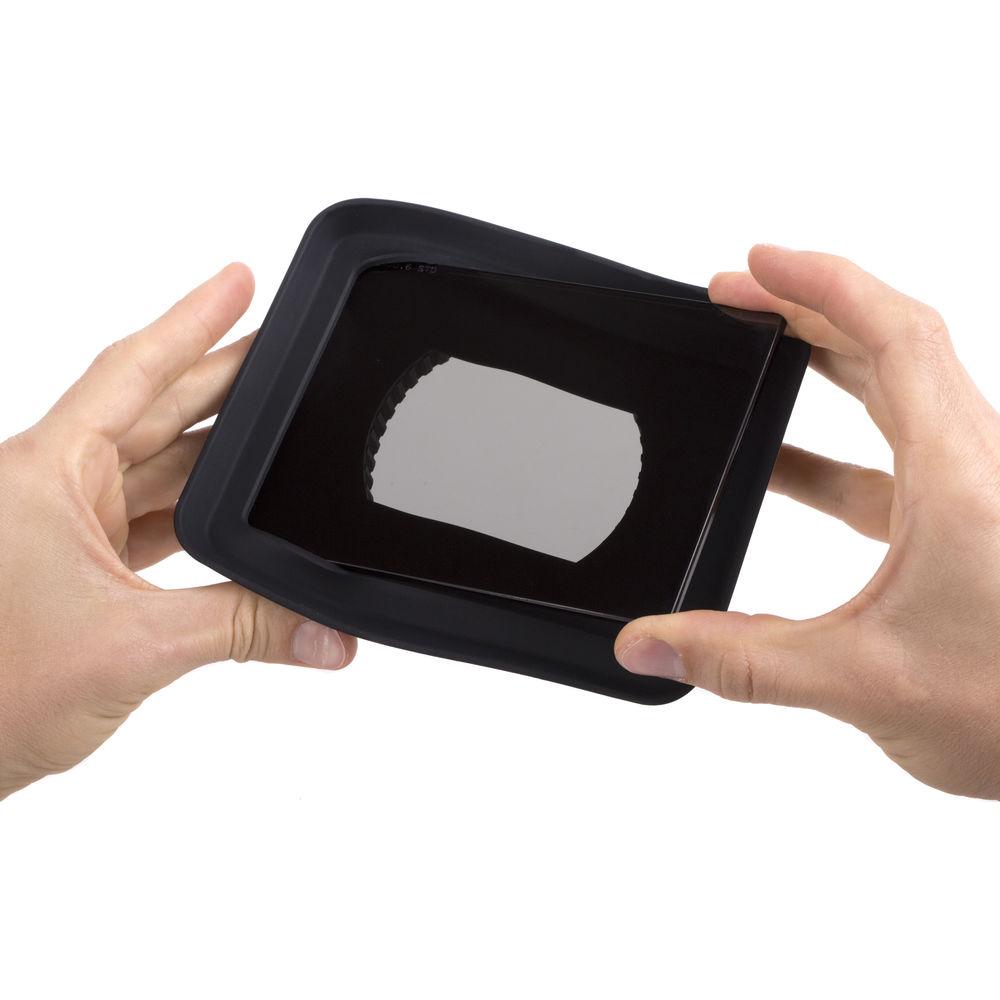

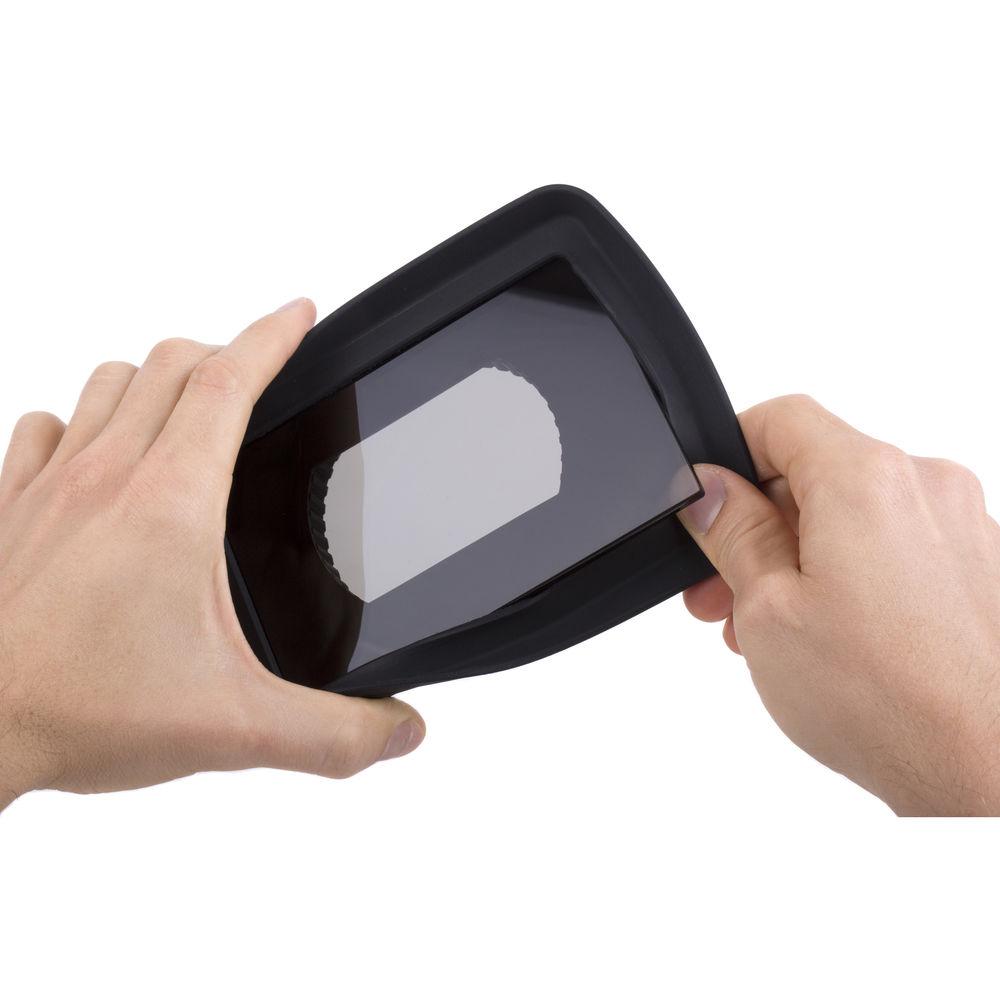

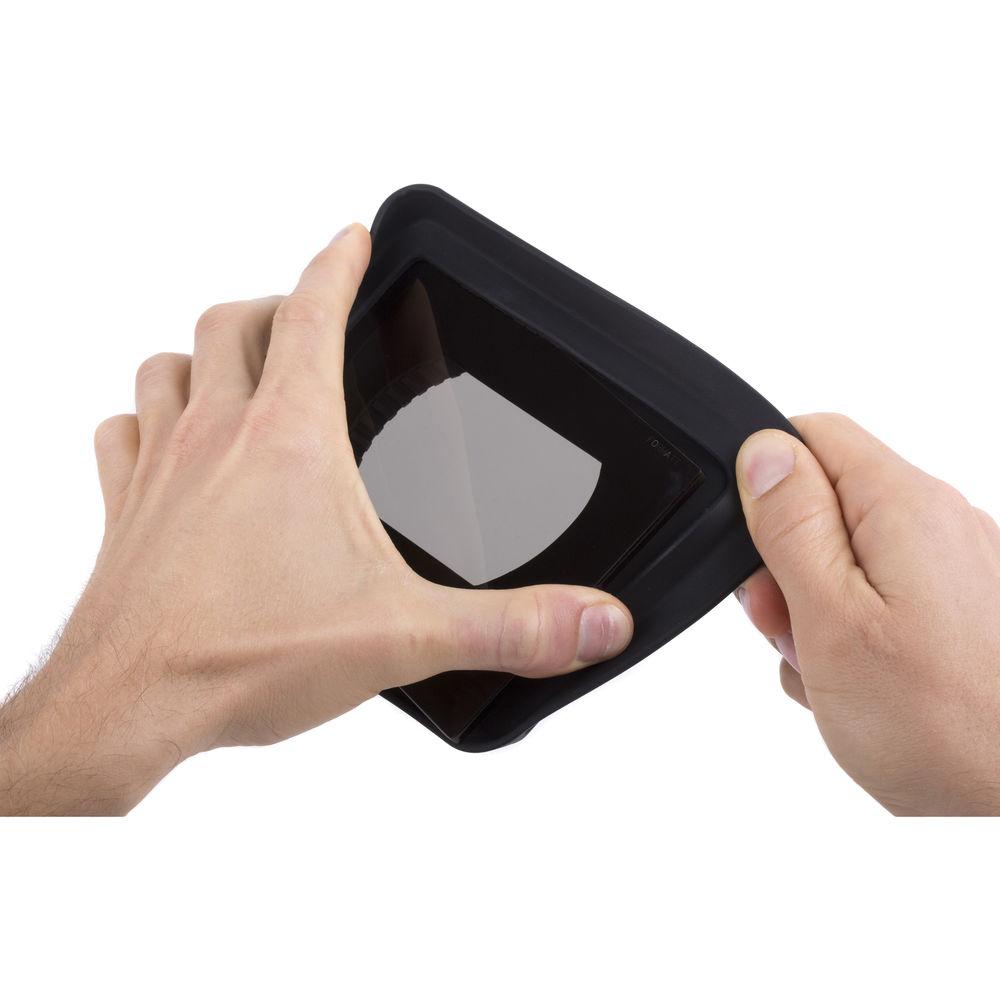

- The rubber hood has a grove on the inside edge that holds the filter securely without using a filter tray.
Compatibility - ARRI Standard Speed Cinema Lenses:
- 16mm T1.3
24mm T1.3
32mm T1.3
40mm T1.3
50mm T1.3
85mm T1.3
100mm T1.3
135mm T1.3 - ARRI Super Speed Cinema Lenses:
- 18mm T1.3
25mm T1.3
35mm T1.3
50mm T1.3
65mm T1.3
85mm T1.3 - ARRI Macro Cinema Lenses:
- 16mm T2.1
24mm T2.1
32mm T2.1
40mm T2.1
50mm T2.1
60mm T2.1
100mm T2.1
200mm T2.1 - COOKE Speed Panchro Cinema Lenses:
- 18mm SII/III
25mm SII/III
32mm SII
40mm SII
50mm SII
75mm SII
100mm SII - Canon EF-S USM Lenses:
- 10-22mm f/3.5-4.5
17-55mm f/2.8 IS - Canon EF USM Lenses:
- 16-35mm f/2.8L
17-40mm f/4L
20-35 3.5-4.5
24mm f/1.4L
24mm f/1.4L II
24-70mm f/2.8L
24-70mm f/4L IS
24-105mm f/4L IS
28-70mm f/2.8L
28-300mm f/3.5-5.6L IS
300mm f/2.8L - Leica Lenses:
- Leica Super-Elmar-M 18mm f/3.8 ASPH lens (using Leica's 77mm adapter)
Most Leica lenses utilize smaller front diameters which require the separately available Zip Box Adapter Rings - Nikon AF-S Nikkor Lenses:
- 20mm f/1.8G ED
24mm f/1.4G ED
85mm f/1.4G
300mm f/4E PF ED VR
300mm f/4D IF-ED - Nikon AF-S DX Zoom-Nikkor Lenses:
- 10-24mm f/3.5-4.5G ED
12-24mm f/4G IF-ED
17-55mm f/2.8G IF-ED - Nikon AF-S Zoom-Nikkor Lenses:
- 16-35mm f/4G ED VR
17-35mm f/2.8D IF-ED
18-35mm f/3.5-4.5G ED
24-70mm f/2.8G IF-ED
24-120mm f/4G ED VR
28-70mm f/2.8D IF-ED
28-300mm f/3.5-5.6G ED VR
70-200mm f/2.8G VR IF-ED
70-200mm f/2.8G ED VR II
70-200mm f/2.8G ED VR II
80-200mm f/2.8D ED
80-400mm f/4.5-5.6G ED VR - Sony Lenses:
- AF DT 11-18mm f/4.5-5.6 D lens
Carl Zeiss Vario-Sonnar T* 16-35mm f/2.8 ZA
Carl Zeiss Vario-Sonnar T* 24-70mm f/2.8 ZA
Most Sony lenses utilize smaller front diameters which require the separately available Zip Box Adapter Rings - Carl Zeiss Planar T* Lenses:
- 55mm f/1.2 C/Y
85mm f/1.2 C/Y - Tokina Lenses:
- 11-16mm f/2.8 PRO DX II
12-24mm f/4 PRO DX II
12-28mm f/4 PRO DX
16-50mm f/2.8 PRO DX
16.5-135mm f/3.5-5.6 DX
17 mm f/3.5 AF PRO
19-35 mm f/3.5-4.5 AF
20-35 mm f/2.8 AF PRO
Duclos Tokina 11-16mm cinema lens UPC: 606184852406 In the Box Wooden Camera 4 x 5.65" Filter Zip Box for 80-85mm Exterior Diameter Lenses Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera 4 x 5.65" Filter Zip Box for 80-85mm Exterior Diameter Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 231600 Specs | Filter Size | 4 x 5.65" (100 x 144 mm) | | Dimensions | 4.9 x 6.5 x 1.2" (124 x 164 x 30 mm) | | Weight | 3.8 oz (108 g) | | | | Package Weight | 0.265 lb | | Box Dimensions (LxWxH) | 8.85 x 6.7 x 1.2" |
