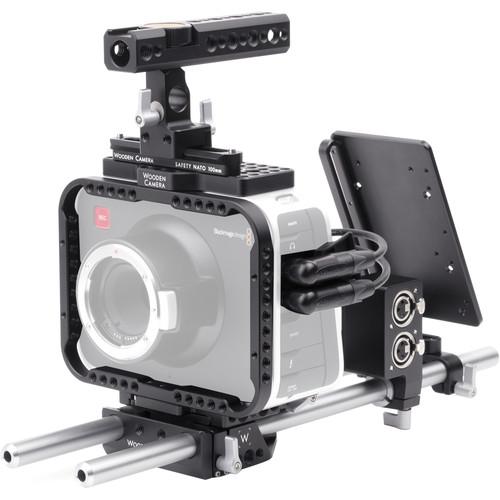

User Manual for Wooden Camera Advanced Accessory Kit for Blackmagic Cinema Camera

• Product category: Camcorder Supports & Rigs Wooden Camera
• Brand: Wooden Camera
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Wooden Camera Camcorder Supports & Rigs

Product description

• Quick Cage for Blackmagic Cinema Camera with 15mm Lightweight Rod Clamp The Wooden Camera Quick Cage with 15mm Lightweight Rod Clamp turns the Blackmagic Cinema Camera into a production-ready tool. It attaches to the camera with the help of 2 screws on the top and 1 locating pin and screw on the bottom, making the setup secure. The sleek and functional design leaves all of the camera's vital features easily accessible, such as the SSD door, LCD touch screen, and input/output ports. The cage frame contours to the body without adding any width. It keeps the controls at your fingertips like the REC button at the right index finger and Focus and Iris at your thumbs.This cage includes a lightweight 15mm support baseplate.
  • 1/4-20 holes in standard spacing (9mm center to center)
  • 3/8-16 holes in ARRI standard spacing (50mm center to center)
• 15mm Support Rod (15") This is a single, 15" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106130
• NATO Handle Kit (Plus, 100mm Rail) This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 3.9" / 100mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.

  The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.

  The NATO rail can be attached to any two 1/4"-20 threads positioned up to 72mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism.
  NATO Quick Release
  • The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.
  Rosette Based Rotating Grip
  • The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.
  Sideways 15mm Rod Clamp
  • The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.
  Front/Rear Rod Openings
  • A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.
  Integrated Cold Shoe
  • A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.
  Accessory Threads
  • 1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.
  Optional Front Rod Clamp
  • Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.
  UPC: 700987994636
• A-Box BMC-RA for Blackmagic Cinema Camera (Right-Angle 1/4" Connectors) Made specifically for the Blackmagic Cinema Camera, this Wooden Camera A-Box allows you to adapt two balanced XLR male connectors to the camera via two right-angle 1/4" balanced female connectors. It comes with a 1.5", bolt-on 19mm rod that has a threaded hole allowing attachment to 1/4"-20 threaded mounting holes. Note: This right-angle connector version will not work with the Wooden Camera BMC Cage. Please see the A-Box BMC model in such case. UPC: 700987993592
• 15mm Adapter Bushing The Wooden Camera 15mm Adapter Bushing allows you to adapt 19mm accessories to 15mm rod standards. UPC: 610079104990
• 15mm Rod Clamp The Wooden Camera 15mm Rod Clamp attaches to 15mm rods to add 1/4"-20 screw-holes to your camera rig. Among the variety of accessories that can be mounted to these screw-holes is Wooden Camera's QB Battery Back Plate. This plate comes in different versions, each designed to have a different type of battery plate and ultimately battery attached to it. With these attached, the QB Battery Back Plate can be mounted right onto the screw-holes of the Rod Clamp. The ability to attach so is especially useful when you have no way of mounting a battery directly onto your camera and as an alternative are looking for a way to get the battery near the camera (so you can connect the two). UPC: 610079106260
• Battery Slide The Battery Slide from Wooden Camera is an adjustable mounting system for V-Mount, Gold Mount, QRC Gold Mount, and RED/BLUESHAPE battery plates. Multiple rows of pass-through holes allow the attachment of rod clamps, cheese plates, and other accessories.

  In order to adjust the plate's position, the user only needs to apply firm pressure to tilt it into place. Sliding the plate into position is facilitated by an adjustable thumbscrew. Both these movements make the plate ideal for adjusting counterbalance and transitioning from studio to handheld position. UPC: 610079106451

• 1/4-20 Low Profile Screw

• 1/4-20 x 1/2" Screw

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• NATO Handle (Plus)

• Limited 1-Year Warranty

• WC-144900 19mm Bolt-On Rod

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2 x 1/4"-20 x 1/4" Screws

• 2 x 1/4"-20 x 3/4" Screws

• 1-Year Limited Warranty

• 2 x 1/4"-20 x 1/4" Socket Cap Screw

• 6 x M3 x 14mm Pan Head Screws

• 4 x M3 x 12mm Pan Head Screws

• 4 x M3 x 8mm Pan Head Screws

• 4 x M3 x 8mm Phillips Flat Head Screws

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Quick Cage for Blackmagic Cinema Camera with 15mm Lightweight Rod Clamp

  For Use with	Blackmagic Cinema Camera
  Hole Pattern	1/4"-20 holes in standard spacing (9 mm center to center) 3/8"-16 holes in ARRI standard spacing (50 mm center to center)

  Box Dimensions (LxWxH)	5.7 x 5.5 x 2.2"

• 15mm Support Rod (15")

  Rod Size	15 mm
  Rod Length	15" (38 cm)

  Box Dimensions (LxWxH)	15.0 x 1.0 x 1.0"

• NATO Handle Kit (Plus, 100mm Rail)

  NATO Rail Length	3.9" / 100 mm
  Rail Mounting Distance	Up to 2.8" / 72 mm apart

  Box Dimensions (LxWxH)	6.0 x 4.7 x 1.2"

• A-Box BMC-RA for Blackmagic Cinema Camera (Right-Angle 1/4" Connectors)

  Dimensions	A-Box: 3.9 x 1.6 x 1.5" (9.8 x 4 x 3.8 cm) 19 mm Bolt-On Rod: 1.5" (3.8 cm)
  Weight	Approx. 10 oz (approx. 280 g)

  Box Dimensions (LxWxH)	6.7 x 4.3 x 3.1"

• 15mm Adapter Bushing

  Dimensions	0.764 x 0.913 x 0.913" (19.4 x 23.2 x 23.2 mm)
  Weight	0.25 oz (7 g)

  Box Dimensions (LxWxH)	4.0 x 3.0 x 2.0"

• 15mm Rod Clamp

  Dimensions	4.4 x 1 x .6" (11 x 2.5 x 1.5 cm)
  Weight	.2 lbs (91 g)

  Box Dimensions (LxWxH)	3.0 x 1.95 x 1.0"

• Battery Slide

  Dimensions	6.0 x 4.5 x 1.8" (152.4 x 114.3 x 45.7 mm)
  Weight	8 oz (226.8 g)

  Box Dimensions (LxWxH)	8.7 x 6.4 x 2.3"
