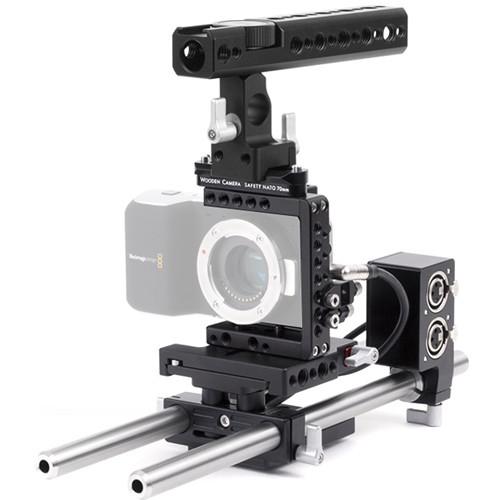

User Manual for Wooden Camera Advanced Accessory Kit for Blackmagic Pocket Cinema Camera

• Product category: Camcorder Supports & Rigs Wooden Camera
• Brand: Wooden Camera
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Wooden Camera Camcorder Supports & Rigs

Product description

• Pocket Cage for Blackmagic Design Pocket Cinema Camera The Wooden Camera Pocket Cage is designed to make your Blackmagic Design Pocket Cinema Camera ready for video production use. It attaches to your camera using 1/4"-20 screws, one on the top and one on the bottom with two additional locating pins for a secure fitting. The cage features multiple 1/4"-20 and 3/8"-16 mounting holes for attaching accessories and mounting onto a tripod plate. The Pocket Camera's battery door remains unobstructed when in the Pocket Cage, allowing for easy SD card and battery changes. The cage can be combined with Wooden Camera's optional Pocket 15mm Base for a lightweight 15mm rod support. UPC: 700987993967
• Pocket Lock (Power) The Wooden Camera Pocket Lock (Power) for Blackmagic Pocket Cinema Camera protects the power input port from damage caused by cable snags and repeated use. The cable lock is designed to attach to Wooden Camera's optional Pocket Cage using an included M4 screw. It fits a wide range of Pocket Cinema Camera power accessories from Wooden Camera, as well as the AC adapter cable provided with the camera itself. The power cable is secured in place using a silver thumbscrew. To accommodate third party power accessories with cables too large to fit within the cable lock, a 2.5mm male to 2.5mm female adapter cable comes included.
  • • Cable lock attaches to optional Pocket Cage
    • M4 Screw and Allen wrench included
    • Thumbscrew secures power cable in place
    • Compatible with Wooden Camera power accessories for the Pocket Cinema Camera
    • 2.5mm male to 2.5mm female cable included to accommodate third party power accessories that are too large for the cable lock
  UPC: 700987994476
• Pocket Lock (HDMI) The Wooden Camera Pocket Lock (HDMI) for Blackmagic Pocket Cinema Camera protects the micro HDMI port from damage and helps prevent signal loss caused by your cable coming loose. The cable lock is designed to attach to Wooden Camera's Pocket Cage using the included M4 screw. Once attached, the lock keeps your micro HDMI cable from pulling out during your shoot. This is especially useful when recording to an external device. To further protect the HDMI port from repeated use, a micro HDMI male to HDMI type A female adapter cable is included, which is secured by tightening a silver thumbscrew.
  • • Cable lock attaches to optional Pocket Cage
    • M4 Screw and Allen wrench included
    • Thumbscrew to securely attach micro HDMI cable
    • Micro HDMI male to HDMI female cable
• Pocket Quick Base for Blackmagic Design Pocket Cinema Camera The Wooden Camera Pocket Quick Base is a quick-release baseplate for the Blackmagic Design Pocket Cinema Camera and provides 15mm lightweight pass-through rod support. The baseplate can be used in combination with the Pocket Cage (sold separately) and can attach to any tripod plate.
  • 1/4"-20 and 3/8"-16 holes for attaching accessories
  • Quick-release slot based on an ARRI-standard dovetail
  • 1/4"-20 and 3/8"-16 holes at the bottom for attaching to a tripod or bridgeplate
• 15mm Support Rod (15") This is a single, 15" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106130
• NATO Handle Kit (Plus, 70mm Rail) This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 2.8" / 70mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.

  The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.

  The NATO rail can be attached to any two 1/4"-20 threads positioned up to 42mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism.
  NATO Quick Release
  • The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.
  Rosette Based Rotating Grip
  • The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.
  Sideways 15mm Rod Clamp
  • The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.
  Front/Rear Rod Openings
  • A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.
  Integrated Cold Shoe
  • A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.
  Accessory Threads
  • 1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.
  Optional Front Rod Clamp
  • Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.
  UPC: 700987994629
• A-Box Pocket Adapter The Wooden Camera A-Box Pocket Adapter is designed specifically for Blackmagic Design Pocket Cinema Camera. It helps adapt 2 industry standard XLR male plugs to 1 right angle 3.5mm stereo plug. The A-Box Adapter features professional grade connectors and comes with a bolt on a 19mm rod for attaching to any 1/4"-20 threaded hole and 15mm adapter bushing for clamping to 15mm rods. This adapter does not provide phantom power. UPC: 700987993981

• 2 x 1/4"-20 Screws

• Limited 1-Year Warranty

• M4 Socket Cap Screw

• Spare M3 Thumbscrew

• M3 Allen Wrench

• 2.5mm Male to 2.5mm Female Adapter Cable

• Limited 1-Year Warranty

• Micro HDMI Male to HDMI Female Cable

• M4 Socket Cap Screw

• Spare M3 Thumbscrew

• M3 Allen Wrench

• Limited 1-Year Warranty

• 1/4"-20 Low Profile Screw

• 3/8"-16 Low Profile Screw

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• NATO Handle (Plus)

• Limited 1-Year Warranty

• 1/4"-20 x 3/8" Screw

• Bolt-On 19mm Rod

• 15mm Adapter Bushing

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Pocket Cage for Blackmagic Design Pocket Cinema Camera

  Construction	Aluminum
  Mounting Holes	1/4"-20 holes, 9 mm center-to-center spacing 3/8"-16 holes
  Dimension L x W x H	4.0 x 3.0 x 1.5" (10.2 x 7.6 x 3.8 cm)
  Weight	4.8 oz (136.1 g)

  Box Dimensions (LxWxH)	5.5 x 2.9 x 0.6"

• Pocket Lock (Power)

  Box Dimensions (LxWxH)	5.0 x 3.0 x 0.5"

• Pocket Lock (HDMI)

  Box Dimensions (LxWxH)	5.5 x 3.0 x 0.5"

• Pocket Quick Base for Blackmagic Design Pocket Cinema Camera

  Box Dimensions (LxWxH)	7.8 x 4.4 x 1.5"

• 15mm Support Rod (15")

  Rod Size	15 mm
  Rod Length	15" (38 cm)

  Box Dimensions (LxWxH)	15.0 x 1.0 x 1.0"

• NATO Handle Kit (Plus, 70mm Rail)

  NATO Rail Length	2.8" / 70 mm
  Rail Mounting Distance	Up to 1.7" / 42 mm apart

  Box Dimensions (LxWxH)	7.75 x 4.3 x 2.25"

• A-Box Pocket Adapter

  Dimensions	3.0 x 3.0 x 7.0" (7.6 x 7.6 x 17.7 cm)
  Weight	0.8 lb (0.3 kg)

  Box Dimensions (LxWxH)	6.7 x 4.35 x 3.25"
