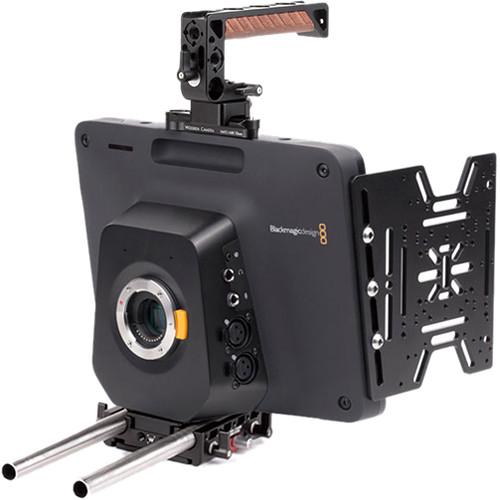

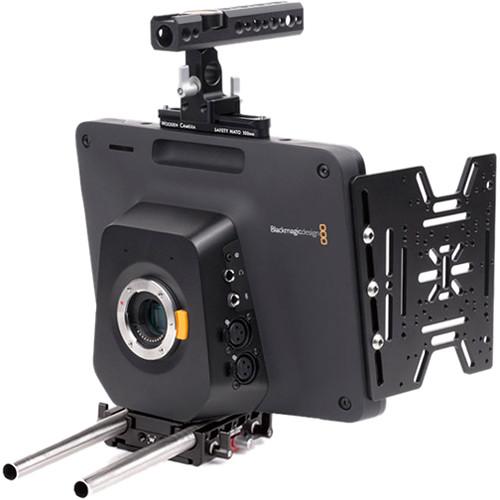

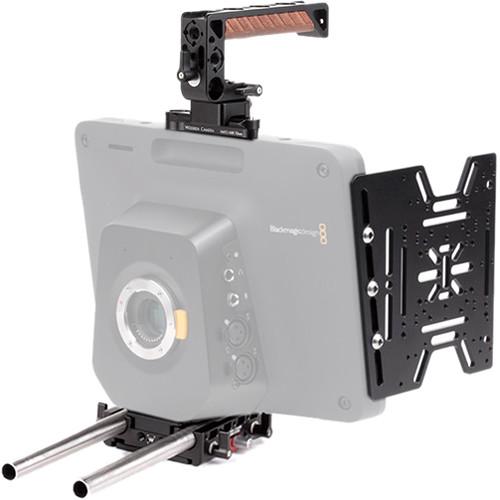

Wooden Camera Advanced Accessory Kit for

User Manual for Wooden Camera Advanced Accessory Kit for Blackmagic Studio Camera

• Product category: Camcorder Supports & Rigs Wooden Camera
• Brand: Wooden Camera
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Wooden Camera Camcorder Supports & Rigs

Product description

• Fixed Base for Blackmagic Studio Camera 4K/HD The Fixed Base for Blackmagic Studio Camera 4K/HD supports optional LWS 15mm rods while providing the correct lens height for use with a matte box. It is designed specifically for the Blackmagic Studio Camera 4K/HD and features 1/4"-20 and 3/8"-16 holes on the sides for attaching accessories and on the bottom for attaching to a tripod or bridgeplate.
  • • LWS 15mm rod ports
    • Maintains correct lens height for matte box use
    • 1/4"-20 and 3/8"-16 accessory threads on sides
    • 1/4"-20 and 3/8"-16 mounting threads on bottom
    • Two, low profile, 3/8"-16 captive camera mounting screws included
• Side Plate for Blackmagic Studio Camera The Wooden Camera Side Plate for Blackmagic Studio Camera is an accessory plate for the Blackmagic Studio Camera. It attaches to the side of the camera and provides mounting patterns for various devices as well as pass-through slots for 1/4"-20 screws. It can be flipped and reversed in different orientations to attach to the camera in different positions, such as facing in or out.

  Supported devices include V-Mount plates, QRC style Gold Mount plates, HyperDeck Shuttle, Odyssey 7Q, and wireless audio receivers. A variety of mounting screws is included. UPC: 700987995220
• 15mm Support Rod (15") This is a single, 15" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106130
• NATO Handle Kit (Plus, 100mm Rail) This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 3.9" / 100mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.

  The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.

  The NATO rail can be attached to any two 1/4"-20 threads positioned up to 72mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism.
  NATO Quick Release
  • The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.
  Rosette Based Rotating Grip
  • The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.
  Sideways 15mm Rod Clamp
  • The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.
  Front/Rear Rod Openings
  • A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.
  Integrated Cold Shoe
  • A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.
  Accessory Threads
  • 1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.
  Optional Front Rod Clamp
  • Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.
  UPC: 700987994636

• 2 x Low Profile 3/8"-16 Camera Screw

• Limited 1-Year Warranty

• 5 x 1/4-20" x 3/8" Socket Button

• 3 x 1/4"-20 x 5/8" Socket Button

• 4 x M3 x 12mm Phillips Pan Head

• 4 x M3 x 10mm Phillips Pan Head

• 4 x M3 x 8mm Phillips Pan Head

• M2.5 x 4mm Socket Cap (for Use as Locating Pin on Odyssey 7Q)

• 1-Year Limited Warranty

• Limited 1-Year Warranty

• NATO Handle (Plus)

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Fixed Base for Blackmagic Studio Camera 4K/HD

  Rod Compatibility	LWS 15mm
  Camera Mount Screws	2 x 3/8"-16
  Accessory Mounting Threads	1/4"-20 and 3/8"-16

  Box Dimensions (LxWxH)	4.8 x 4.3 x 1.4"

• Side Plate for Blackmagic Studio Camera

  Box Dimensions (LxWxH)	8.0 x 7.0 x 0.01"

• 15mm Support Rod (15")

  Rod Size	15 mm
  Rod Length	15" (38 cm)

  Box Dimensions (LxWxH)	15.0 x 1.0 x 1.0"

• NATO Handle Kit (Plus, 100mm Rail)

  NATO Rail Length	3.9" / 100 mm
  Rail Mounting Distance	Up to 2.8" / 72 mm apart

  Box Dimensions (LxWxH)	6.0 x 4.7 x 1.2"
