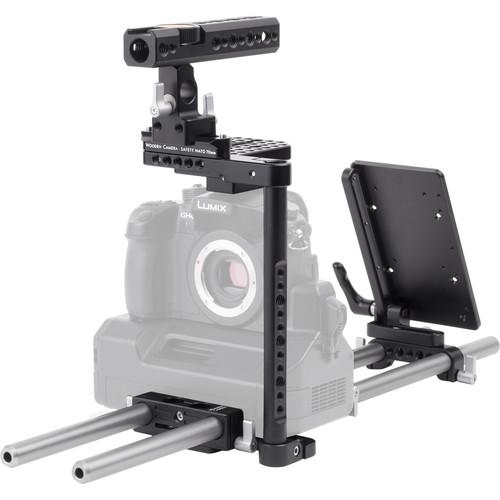

User Manual for Wooden Camera Advanced Accessory Kit for Panasonic GH4-YAGH Camera

• Product category: DSLR Video Supports & Rigs Wooden Camera
• Brand: Wooden Camera
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Wooden Camera DSLR Video Supports & Rigs

Product description

• Camera Cage for Panasonic GH4 and YAGH Interface Unit The Camera Cage for Panasonic GH4 and YAGH Interface Unit from Wooden Camera expands the accessory mounting capabilities of the GH4 with attached YAGH Interface Unit, while maintaining a minimalist design that doesn't block access to camera controls. It attaches via one 3/8"-16 and one 1/4"-20 screw on the bottom and a hot shoe pinch on top, and features 1/4"-20 and 3/8"-16 threaded holes along the top and side and left side of the cage for adding a variety of accessories. The cage is also designed to work with Wooden Camera's 19mm and 15mm rod bridge plates, providing the proper rods to lens center height for use with a matte box.
  • • 1/4"-20 holes - in standard spacing (9mm center to center)
    • 3/8"-16 holes - in ARRI standard spacing (50mm center to center)
    • Leaves camera buttons accessible and LCD viewable
    • 1/4" & 3/8" attachment screws
    • Hot shoe pinch
  UPC: 700987995244
• DSLR 15mm Bracket The DSLR 15mm Bracket from Wooden Camera provides 15mm lightweight rods at the correct lens height for larger DSLR cameras when combined with Quick Cage (DSLR, Large). Note: Quick Cage sold separately. UPC: 700987993431
• 15mm Support Rod (6") This is a single, 6" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106109
• NATO Handle Kit (Plus, 70mm Rail) This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 2.8" / 70mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.

  The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.

  The NATO rail can be attached to any two 1/4"-20 threads positioned up to 42mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism.
  NATO Quick Release
  • The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.
  Rosette Based Rotating Grip
  • The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.
  Sideways 15mm Rod Clamp
  • The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.
  Front/Rear Rod Openings
  • A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.
  Integrated Cold Shoe
  • A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.
  Accessory Threads
  • 1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.
  Optional Front Rod Clamp
  • Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.
  UPC: 700987994629
• 15mm Rod Clamp The Wooden Camera 15mm Rod Clamp attaches to 15mm rods to add 1/4"-20 screw-holes to your camera rig. Among the variety of accessories that can be mounted to these screw-holes is Wooden Camera's QB Battery Back Plate. This plate comes in different versions, each designed to have a different type of battery plate and ultimately battery attached to it. With these attached, the QB Battery Back Plate can be mounted right onto the screw-holes of the Rod Clamp. The ability to attach so is especially useful when you have no way of mounting a battery directly onto your camera and as an alternative are looking for a way to get the battery near the camera (so you can connect the two). UPC: 610079106260
• 15mm Support Rod (9") This is a single, 9" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106116
• Recorder Slide The Recorder Slide from Wooden Camera is a dual mount accessory plate designed to attach a power plate to one side and an on-board recorder to the other. The plate features multiple mounting patterns for the Ki Pro, Hyperdeck, Codex, Odyssey 7Q, PIX 240, V-Mount & Gold Mount batteries, wireless audio receivers, and 1/4"-20 accessories (via both threaded and pass through holes).

  An L-bracket is included with the slide to enable mounting of recorders like the Atomos Shogun, Pix-E5, and Pix-E7. Additionally, integrated dual rosette mounts and the plate's namesake sliding capability allow for positioning in nearly any direction.

  The base of the Recorder Slide features a slotted design that allows for the attachment of two 1/4"-20 screw threads up to 36mm apart, center to center. This feature allows for the attachment of rod clamps, if the user requires them.
  Compatibility
  • • Ki Pro
    • Hyperdeck
    • Codex
    • Odyssey 7Q
    • Pix240
    • V-Mount
    • Gold Mount
    • Audio Wireless Receiver Boxes
    • Miscellaneous 1/4"-20 Accessories
    • Atomos Shogun
    • Pix-E5
    • Pix-E7
  UPC: 702534252541

• 3/8"-16 Low Profile Screw

• 1/4"-20 Socket Cap Screw

• Limited 1-Year Warranty

• 2 x 1/4 to 20 x 1/2 Socket Cap Screw

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• NATO Handle (Plus)

• Limited 1-Year Warranty

• 2 x 1/4"-20 x 1/4" Screws

• 2 x 1/4"-20 x 3/4" Screws

• 1-Year Limited Warranty

• Limited 1-Year Warranty

• 8 x 1/4"-20 Screws

• 12 x Mini Screws

• L-Bracket

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Camera Cage for Panasonic GH4 and YAGH Interface Unit

  Hole Pattern

  1/4"-20 in standard spacing (9mm center to center) 3/8"-16 in ARRI standard spacing (50mm center to center)

  Box Dimensions (LxWxH)	11.0 x 6.0 x 0.3"

• DSLR 15mm Bracket

  Box Dimensions (LxWxH)	5.039 x 3.858 x 0.709"

• 15mm Support Rod (6")

  Rod Size	15 mm
  Rod Length	6" (15 cm)

  Box Dimensions (LxWxH)	6.1 x 2.0 x 1.5"

• NATO Handle Kit (Plus, 70mm Rail)

  NATO Rail Length	2.8" / 70 mm
  Rail Mounting Distance	Up to 1.7" / 42 mm apart

  Box Dimensions (LxWxH)	7.75 x 4.3 x 2.25"

• 15mm Rod Clamp

  Dimensions	4.4 x 1 x .6" (11 x 2.5 x 1.5 cm)
  Weight	.2 lbs (91 g)

  Box Dimensions (LxWxH)	3.0 x 1.95 x 1.0"

• 15mm Support Rod (9")

  Rod Size	15 mm
  Rod Length	9" (23 cm)

  Box Dimensions (LxWxH)	9.5 x 0.5 x 0.5"

• Recorder Slide

  Threaded Holes	1/4"-20
  Unthreaded Holes	Yes
  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	7.3 x 5.9 x 0.9"
