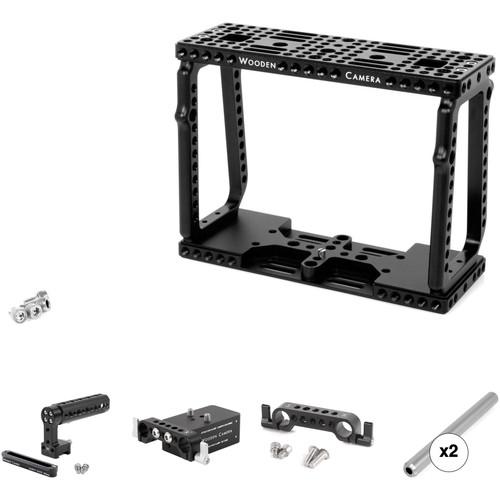

User Manual for Wooden Camera Advanced Cage Kit for the Blackmagic Camera

• Product category: Camcorder Supports & Rigs Wooden Camera
• Brand: Wooden Camera
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Wooden Camera Camcorder Supports & Rigs

Product description

• Wooden Camera NATO Handle Kit with Cheese Handle The Wooden Camera NATO Handle Kit with Cheese Handle is a quick release handle system that can be attached to anything that has on it two 1/4"-20 screw-holes spaced between 0 and 72mm apart. A 100mm long rail is the base of the system and is what attaches to the screw holes, and the handle dovetails onto rail. The rail can at all times stay where it's attached and the handle slipped on and off as needed. The handle features numerous 1/4" and 3/8" screw-holes in case you want to attach any accessory, like a Noga arm.

  70mm and 150mm rails are separately available. UPC: 610079106024
• Wooden Camera Mini Baseplate for the Blackmagic Camera The Wooden Camera Mini Baseplate for the Blackmagic Camera is a rod support system for the Blackmagic Camera. The camera attaches on top to make use of a 15mm Rod Clamp connected to the front of the plate. Rods can be installed into the clamp and a follow focus and a matte box mounted onto them for use with the camera. A second clamp can optionally be connected to the rear of the plate for additional rod support. The clamps can be mounted normally or upside-down to accommodate different lens heights. The plate can also be used to mount tripods, via 1/4" and 3/8" threads on its underside.

  Alternative to attaching the camera directly onto the plate, it can instead be placed in Wooden Camera's Blackmagic Camera Cage and the cage attached. A set of screws comes included for mounting the cage. The cage is sold separately. UPC: 610079106383
• Wooden Camera Camera Cage For Blackmagic Camera The Camera Cage For Blackmagic Camera from Wooden Camera provides an ideal production tool for the Blackmagic Cinema Camera. It has 1/4"-20 holes in standard 9mm center to center spacing and 3/8"-16 holes in ARRI standard 50mm center to center spacing. It's secured by three screws on the top and a single locating pin and screw on the bottom. All of the vital features of the camera, such as the SSD door, LCD Touch Screen, and input/output ports are easily accessible. The contoured grips put all the controls at your fingertips with the REC button at the right index finger and FOCUS and IRIS at your thumbs. Combine with the optional Universal Baseplate for lightweight 15mm support rods.
  • For Blackmagic Cinema Camera
  • 1/4"-20 & 3/8"-16 holes
  • All vital functions easily accessible
  UPC: 610079106246
• Wooden Camera 15mm Rod Clamp The Wooden Camera 15mm Rod Clamp attaches to 15mm rods to add 1/4"-20 screw-holes to your camera rig. Among the variety of accessories that can be mounted to these screw-holes is Wooden Camera's QB Battery Back Plate. This plate comes in different versions, each designed to have a different type of battery plate and ultimately battery attached to it. With these attached, the QB Battery Back Plate can be mounted right onto the screw-holes of the Rod Clamp. The ability to attach so is especially useful when you have no way of mounting a battery directly onto your camera and as an alternative are looking for a way to get the battery near the camera (so you can connect the two). UPC: 610079106260
• 2 x Wooden Camera 15mm Support Rod (15") This is a single, 15" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106130

• NATO Handle Kit with Cheese Handle vbzvzsfetyyubwsaqfrasafrxaxzbfs
• 148800 NATO Handle (Cheese)
• WC-151400 Safety NATO Accessory Rail (100mm)
• 2 x 1/4"-20 x 3/8" Screw
• 1-Year Limited Warranty

• Mini Baseplate for the Blackmagic Camera

• Camera Cage For Blackmagic Camera

• 15mm Rod Clamp

• 2 x 15mm Support Rod (15")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Wooden Camera NATO Handle Kit with Cheese Handle

  Dimensions	4.8 x 4 x 3.2" / 12 x 10 x 8 cm
  Weight	.5 lbs / .22 kg

  Box Dimensions (LxWxH)	6.0 x 3.0 x 1.0"

• Wooden Camera Mini Baseplate for the Blackmagic Camera

  Mount Types	2x 15 mm rod openings 1/4"-20 screw and a pin for attaching the camera 2x 1/4"-20 and 2x 3/8"-16 threads for mounting tripods
  Dimensions	1.8 x 1.3 x 3.1" (4.5 x 3.3 x 8 cm)
  Weight	.4 lb (.18 kg)

  Box Dimensions (LxWxH)	4.0 x 3.5 x 1.5"

• Wooden Camera Camera Cage For Blackmagic Camera

  Dimensions	7.5 x 5.5 x 3" (19.05 x 13.97 x 7.62 cm)
  Weight	1.6 lb (725.7 g)

  Box Dimensions (LxWxH)	8.0 x 3.0 x 2.0"

• Wooden Camera 15mm Rod Clamp

  Dimensions	4.4 x 1 x .6" (11 x 2.5 x 1.5 cm)
  Weight	.2 lbs (91 g)

  Box Dimensions (LxWxH)	3.0 x 1.95 x 1.0"

• 2 x Wooden Camera 15mm Support Rod (15")

  Rod Size	15 mm
  Rod Length	15" (38 cm)

  Box Dimensions (LxWxH)	15.0 x 1.0 x 1.0"
