Wooden Camera AJA CION Pro Accessory

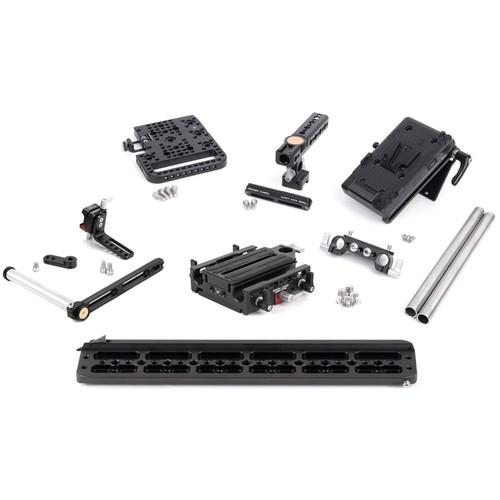

User Manual for Wooden Camera AJA CION Pro Accessory Kit with V-Mount Battery Plate

• Product category: Camcorder Supports & Rigs Wooden Camera
• Brand: Wooden Camera
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Wooden Camera Camcorder Supports & Rigs

Product description

• Top Plate for AJA CION The Wooden Camera Top Plate for AJA CION attaches via four 1/4"-20 screws to the camera top and features rows of 1/4"-20 and 3/8"-16 holes in standard spacing. The original CION handle included with the camera can be re-installed on top plate. ARRI style accessory mounts with 3/8"-16 threads and locating pins are present on top and side. Integrated HDMI clamping mechanism locks cables securely in place and prevents strain or damage. Open area over the removable CION cover plate for servicing flange focus.Note: Tape hook should be removed from top and installed on camera side. UPC: 702534251735
• Fixed Base for AJA CION The Fixed Base for AJA CION from Wooden Camera provides LWS 15mm pass-through rod support at the correct lens height. The baseplate can attach to any tripod plate or ARRI standard bridge plate, such as Wooden Camera's 19mm or 15mm Studio Bridge Plates. When rods are not needed, a separately-available Dovetail Clamp can be added instead to interface with 2060 Dovetails, Safety Dovetails, or Shoulder Rigs.
  • • 1/4"-20 and 3/8"-16 holes on sides for attaching accessories
    • 1/4"-20 and 3/8"-16 holes on bottom for attaching to tripod or bridge plate
    • Optional GO Shoulder low-profile shoulder pad and optional Rosette Bracket available
• 15mm Support Rod (9") This is a single, 9" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106116
• NATO Handle Kit (Plus, 100mm Rail) This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 3.9" / 100mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.

  The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.

  The NATO rail can be attached to any two 1/4"-20 threads positioned up to 72mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism.
  NATO Quick Release
  • The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.
  Rosette Based Rotating Grip
  • The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.
  Sideways 15mm Rod Clamp
  • The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.
  Front/Rear Rod Openings
  • A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.
  Integrated Cold Shoe
  • A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.
  Accessory Threads
  • 1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.
  Optional Front Rod Clamp
  • Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.
  UPC: 700987994636
• Dovetail Clamp The Wooden Camera Dovetail Clamp allows you to attach cameras, baseplates, or accessories to an ARRI standard dovetail. It features slots at multiple locations for inserting mounting screws from underneath, and comes with two 3/8"-16 and two 1/4"-20 low profile screws. UPC: 610079106468
• Safety Dovetail Plate (12") The 12" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations. UPC: 610079105492
• Rear Rod Adapter (CION, 15mm LW) The Rear Rod Adapter (CION, 15mm LW) from Wooden Camera attaches to the two 1/4"-20 holes at the bottom rear of a AJA CION camera to provide 15mm LW rear rod support. This adapter is ideal for holding a second set of rear rods without obstructing access to the integrated camera shoulder pad. It is the correct height for passing through 15mm LW rods from Fixed Base (CION) all the way to the back. UPC: 702534252770
• Battery Slide with Gold Mount Plate and AJA CION Molex Connector The Battery Slide from Wooden Camera features an Anton Bauer gold mount battery plate and an AJA CION Molex connector. This custom battery slide attaches directly to the Molex connector on the back of the camera so you have the ability to also plug in an AC adapter or block battery to the XLR power input on the camera and hot swap between the two without powering down. The battery plate position can be adjusted by loosening the thumbscrew. The AJA CION camera with the rear low profile Battery Slide fits into its camera case. UPC: 702534252763

• 4 x 1/4"-20 x 1/2" Screws

• Spare HDMI Locking Screw

• Limited 1-Year Warranty

• 2 x 1/4"-20 Low-Profile Screw

• 2 x 3/8"-16 Low-Profile Screw

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• NATO Handle (Plus)

• Limited 1-Year Warranty

• 2 x 3/8"-16 Low Profile Screw

• 2 x 1/4"-20 Low Profile Screw

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2 x 1/4"-20 Low Profile Screw

• 2 x 1/4"-20 x 1" Button Head Screw

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Top Plate for AJA CION

  Dimensions	Not Specified by Manufacturer
  Weight	Not Specified by Manufacturer

  Box Dimensions (LxWxH)	8.0 x 6.0 x 2.0"

• Fixed Base for AJA CION

  Camera Mount Screw Sizes	1/4"-20 & 3/8"-16
  Accessory Mounting Threads	1/4"-20 & 3/8"-16
  Dimensions	5.5 x 5 x 2" (139.7 x 127 x 50.8 mm)
  Weight	11.6 oz (329 g)

• 15mm Support Rod (9")

  Rod Size	15 mm
  Rod Length	9" (23 cm)

  Box Dimensions (LxWxH)	9.5 x 0.5 x 0.5"

• NATO Handle Kit (Plus, 100mm Rail)

  NATO Rail Length	3.9" / 100 mm
  Rail Mounting Distance	Up to 2.8" / 72 mm apart

  Box Dimensions (LxWxH)	6.0 x 4.7 x 1.2"

• Dovetail Clamp

  Dimensions	3.5 x 4 x 0.8" (9 x 10 x 2 cm)
  Weight	0.4 lb ( lb (164 g)

  Box Dimensions (LxWxH)	4.9 x 3.85 x 1.0"

• Safety Dovetail Plate (12")

  Dimensions	12.0 x 2.7 x 0.5" / 30.5 x 6.8 x 1.3 cm
  Weight	0.9 lb / 0.4 kg

  Box Dimensions (LxWxH)	12.2 x 3.6 x 0.5"

• Rear Rod Adapter (CION, 15mm LW)

  Dimensions	4.3 x 1.0 x 0.6" (108.8 x 24.6 x 15 mm)
  Weight	0.1 lb (68 g)

  Box Dimensions (LxWxH)	4.2 x 1.5 x 1.0"

• Battery Slide with Gold Mount Plate and AJA CION Molex Connector

  Connector

  1 x D-Tap port for accessory power

  Box Dimensions (LxWxH)	5.5 x 4.5 x 1.5"
