User Manual for Wooden Camera ARRI ALEXA 65 SXT 24V Sharkfin Battery Bracket Click to enlarge the picture
Contents of the user manual for the Wooden Camera ARRI ALEXA 65 SXT
- Product category: Battery Mounting Plates Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Battery Mounting Plates
 |
User manual for the Wooden Camera ARRI ALEXA 65 SXT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

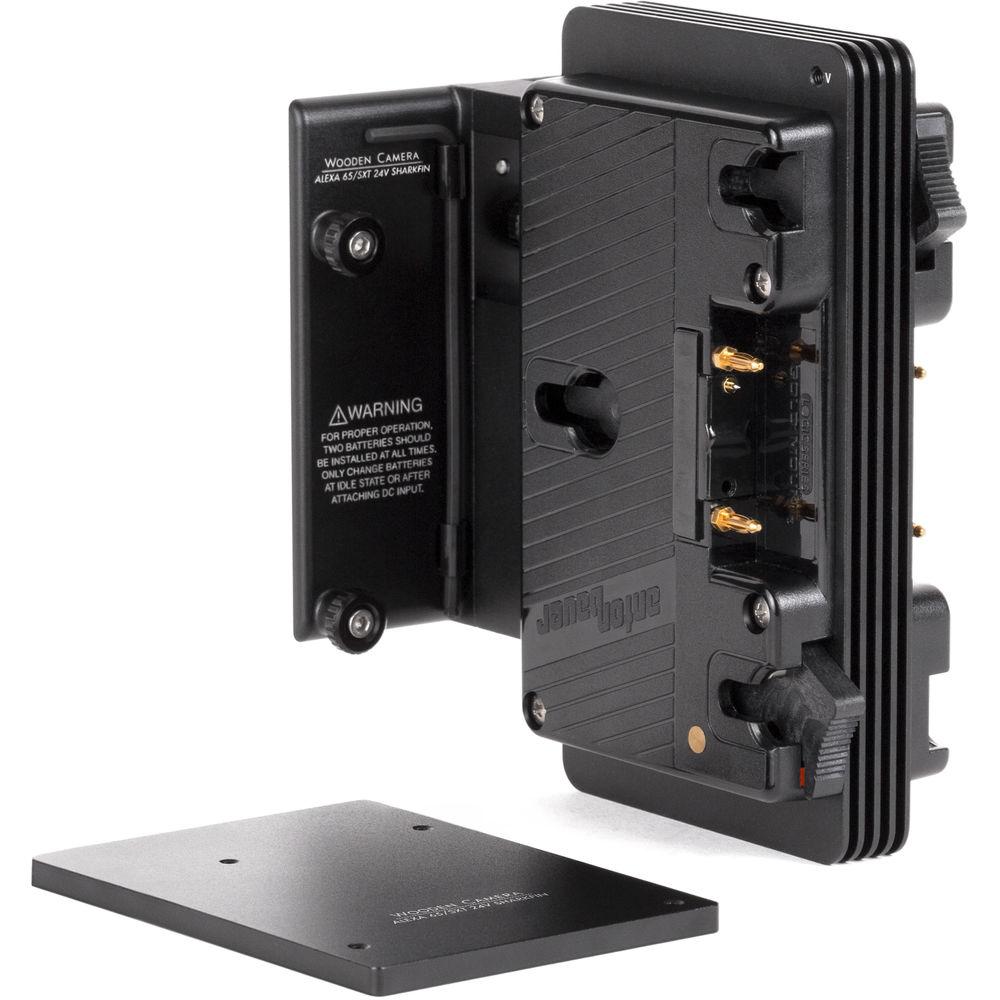

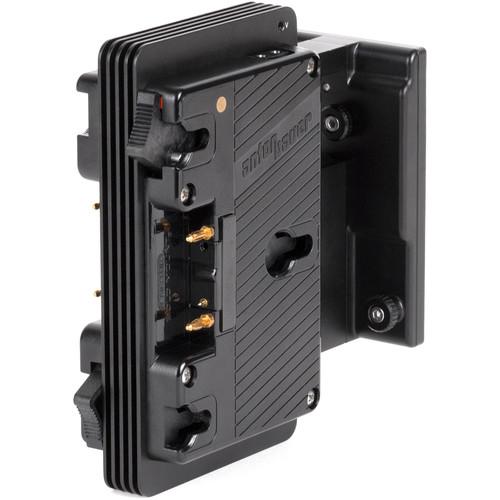

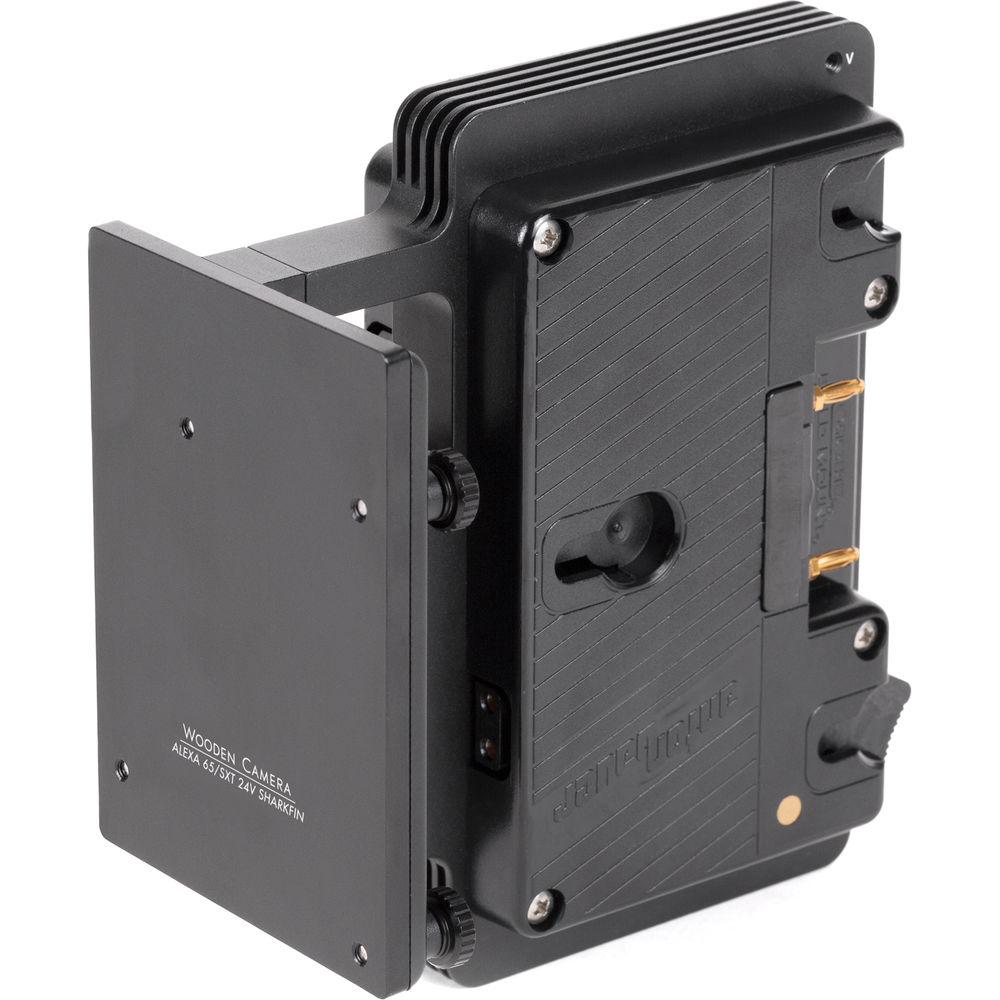

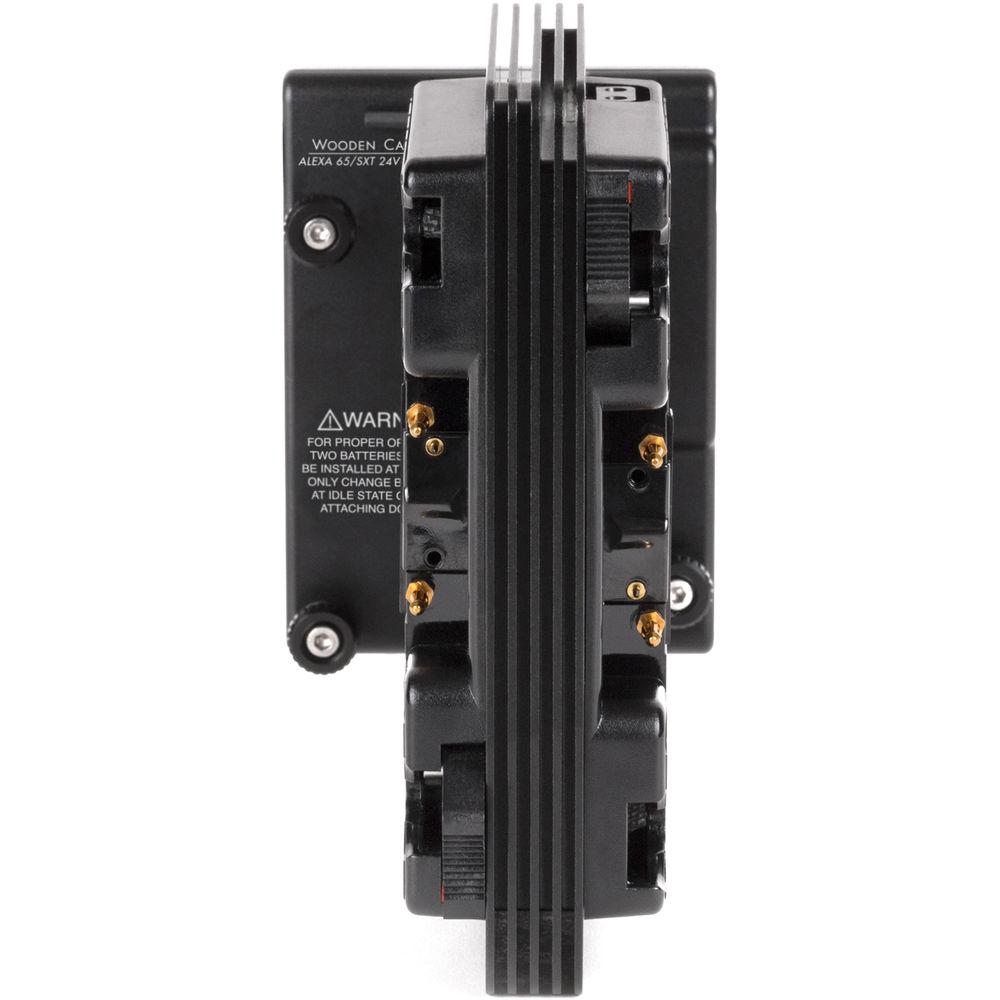

Product description Use this ARRI ALEXA 65/SXT 24V Sharkfin Battery Bracket from Wooden Camera to power your ARRI ALEXA 65 or SXT camera with two separately available Gold mount batteries.
The bracket features four D-Tap ports to power various accessories. The D-Tap ports are always powered, even when there's only one battery installed. Two batteries with up to 10A draw are recommended to be installed when operating the camera. Each battery can be hot-swapped seamlessly one at a time when the camera and accessories are in idle positions. You can also hot swap between a block battery and the onboard batteries.

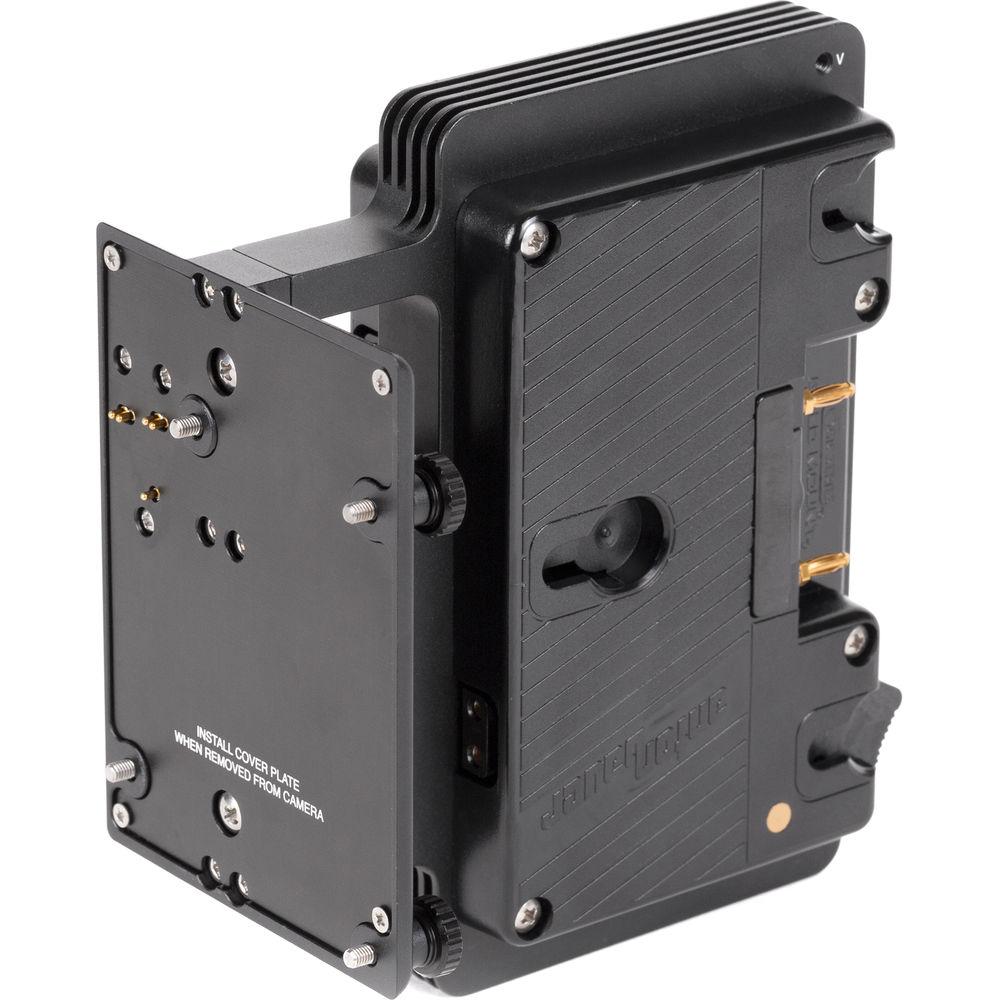

The bracket passes through Anton Bauer formatted battery data, combines it, and sends it to the camera where battery data such as battery percentage can be read on the camera's LCD display or EVF. The bracket installs easily onto the camera via pogo pins and captive thumbscrews on the plate. The thumbscrews can be tightened further if needed with the included Allen wrench. A protective cover plate is included to place over the pogo pin plate when it is not in use. UPC: 606184857715 In the Box Wooden Camera ARRI ALEXA 65/SXT 24V Sharkfin Battery Bracket (Gold Mount) Protective Cover Plate 4 x M3 Thumbscrew Allen Wrench Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera ARRI ALEXA 65 SXT 24V Sharkfin Battery Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 269400 Specs | Compatibility | ARRI ALEXA 65 and SXT | | Power Input | 2 x Gold Mount Batteries
1 x DC Barrel | | Power Output | 4 x D-Tap | | Power Draw | 10 A | | Dimensions | 5.5 x 5.8 x 3.8" / 14 x 14.6 x 9.5 cm | | Weight | 2 lb / 907 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
