Product description

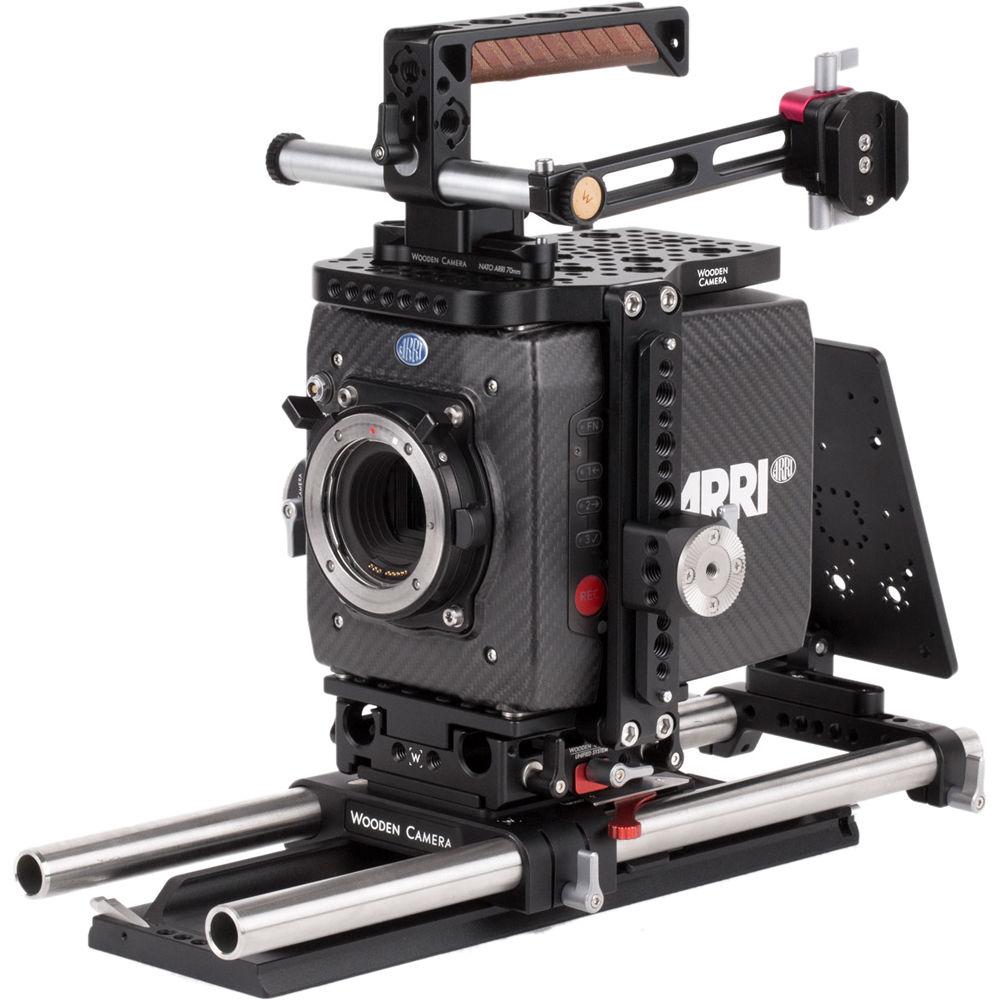

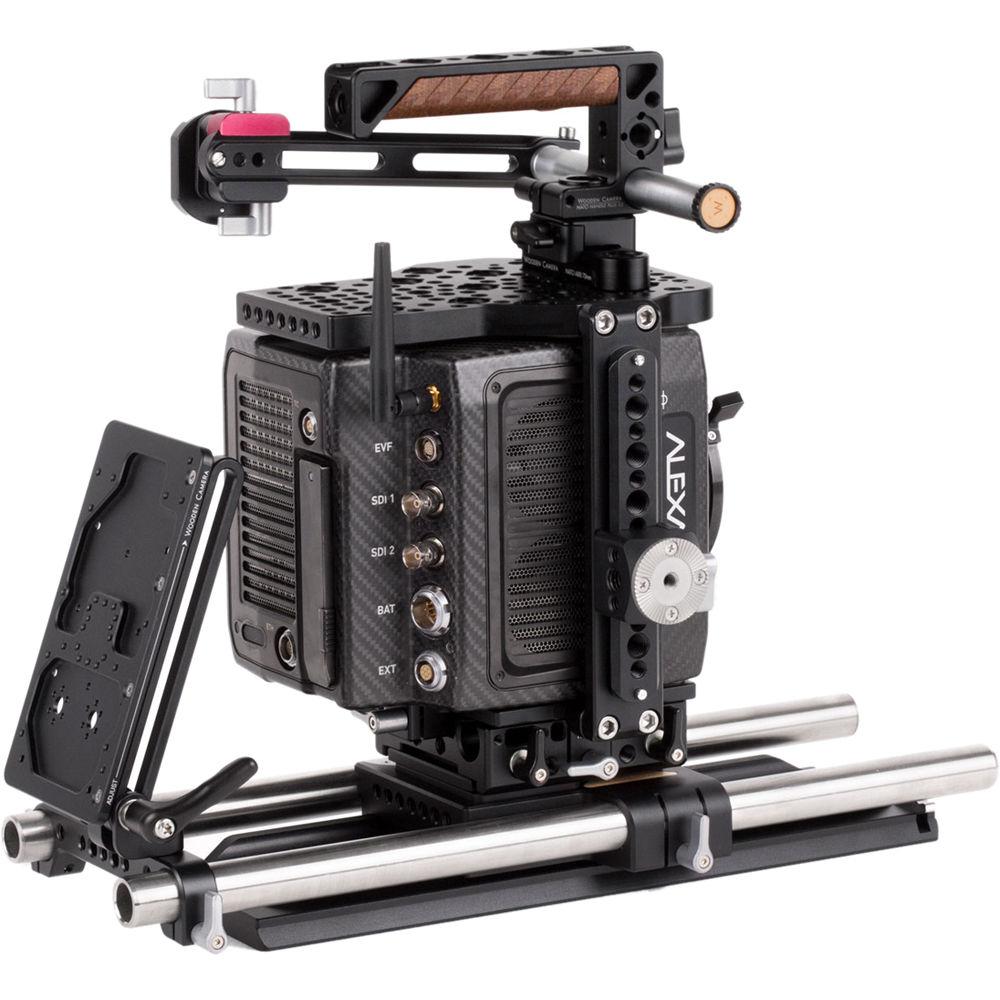

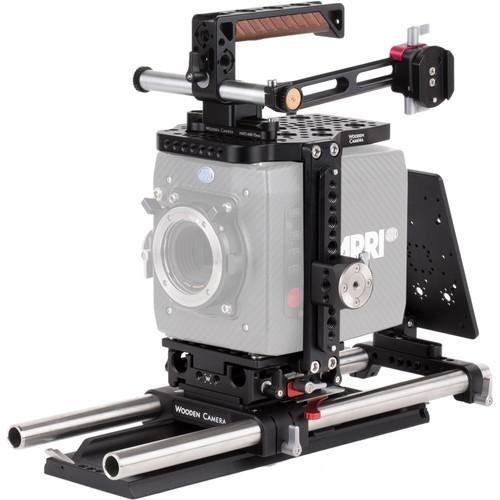

• Unified Cage (Alexa Mini+LW) The Unified Cage (Alexa Mini + LW) from Wooden Camera is a form fitting cage plus a 15mm lightweight baseplate for the ARRI Alexa Mini. It attaches securely by four M4 screws on top and four M4 screws on the bottom. The M4 hole pattern found on the camera body is present on the cage top plate. This allows for attachment of ARRI brand handles and accessories. It features arrays of 1/4-20” holes in standard spacing and multiple 3/8-16” holes for accessories.

  The cage also has a lightweight 15mm support baseplate that allows for 15mm pass-through rods. The bottom of the baseplate is comprised of the Lower Quick Dovetail which has 1/4-20” and 3/8-16” threaded holes for attaching to a tripod plate or ARRI standard bridgeplate such as Unified Bridgeplate (19mm or 15mm Studio, sold separately). To remove the camera from the included Lower Quick Dovetail and take the 15mm lightweight rods with you, unlock the left thumbscrew, slide the baseplate backwards a short distance, and lift up. This action exposes an integrated ARRI dovetail slot on the bottom which can attach directly to any 2060 dovetails, safety dovetails, or shoulder rigs.The cage side pieces feature NATO standard accessory rails with spring-loaded safety pins on each end to prevent accidental removal. The NATO rails also feature 1/4-20” and 3/8-16” holes. Clamped to the side rails are two NATO Rosettes (ARRI) which adapt an ARRI standard rosette to a quick-release NATO rail. Furthermore, this Unified Cage can be attached to the Unified VCT Wedge Plate, providing easy counterbalance ability while on the shoulder. This could then be attached to the Unified VCT-14 Tripod Plate which would be attached to the tripod head. Note: Unified Baseplate is backwards compatible with the Quick Dovetail (standard) and Quick Dovetail (DSLR, large). UPC: 606184851935
• 19mm Support Rod (3") This is a single, 3" long 19mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106161
• NATO Handle Kit (Plus, 100mm Rail) This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 3.9" / 100mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.

  The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.

  The NATO rail can be attached to any two 1/4"-20 threads positioned up to 72mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism.
  NATO Quick Release
  • The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.
  Rosette Based Rotating Grip
  • The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.
  Sideways 15mm Rod Clamp
  • The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.
  Front/Rear Rod Openings
  • A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.
  Integrated Cold Shoe
  • A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.
  Accessory Threads
  • 1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.
  Optional Front Rod Clamp
  • Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.
  UPC: 700987994636
• UVF Mount for ARRI Multi Viewfinder MVF-1 for Alexa Mini (No Clamp) Provided by third party: UVF Mount is a version of the popular UVF Mount v2 but without the 15mm Tube Clamp portion. This kit attaches the ARRI Multi Viewfinder MVF-1 directly and works great with NATO Handle (Plus) which has an integrated 15mm clamp. Two points of adjustment: NATO thumbscrew (identified by red component) for positioning on NATO rail and tension thumbscrew to adjust tilt of EVF. Toolless design allows quick installation and removal of UVF v2 Sled. Safety pin prevents accidental removal. UVF v2 Sled can attach to any NATO-style rail.

• Unified Bridgeplate (15mm Studio) The Wooden Camera Unified Bridgeplate (15mm Studio) is an ARRI standard bridge plate with 15mm studio offset spacing and rods spaced 100mm center-to-center. It can be converted from RED standard height to ARRI standard height, making it compatible with any type of camera rig. The rubberized top coating prevents twisting and slotted design accommodates non-standard screw spacing.

  When combined with Unified Baseplates, it offers correct rod height on cameras like the Sony FS7/FS5/F55/F5, Canon's C100 and C300 Mark II/C100/C300/C500, Blackmagic URSA Mini, Panasonic VariCam 35/VariCam LT, and risers for RED WEAPON/SCARLET-W/RAVEN/EPIC/SCARLET. UPC: 702534256570
• 2060/2575/120EX Dovetail Plate for OConnor Tripods (12") The 2060/2575/120EX Dovetail Plate from Wooden Camera is a 12" ARRI standard plate with safety catches on each end for OConnor tripods.
  Compatibility
  • • OConnor 2060
    • OConnor 2575
    • OConnor 120EX
    • Sachtler Cine 30
    • Also attaches to most other tripods head via screws
  UPC: 610079105003
• WC-150400 Rod Clamp (19mm) The Wooden Camera WC-150300 Rod Clamp (19mm) is a versatile, compact, and lightweight unit. It can be attached to existing 0.74" (19mm) studio rods to provide 1/4-20 and 3/8-16 mounting points. This rod clamp can also be turned over and bolted to cheeseplates, cages, and battery plates.
  • Attaches to existing 0.74" (19mm) studio rods
  • Can also be used with cheeseplates, cages, and battery plates
  • Compact and lightweight design
  UPC: 610079106284
• Battery Slide The Battery Slide from Wooden Camera is an adjustable mounting system for V-Mount, Gold Mount, QRC Gold Mount, and RED/BLUESHAPE battery plates. Multiple rows of pass-through holes allow the attachment of rod clamps, cheese plates, and other accessories.

  In order to adjust the plate's position, the user only needs to apply firm pressure to tilt it into place. Sliding the plate into position is facilitated by an adjustable thumbscrew. Both these movements make the plate ideal for adjusting counterbalance and transitioning from studio to handheld position. UPC: 610079106451
• 19mm Support Rod (15") This is a single, 15" long 19mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106208

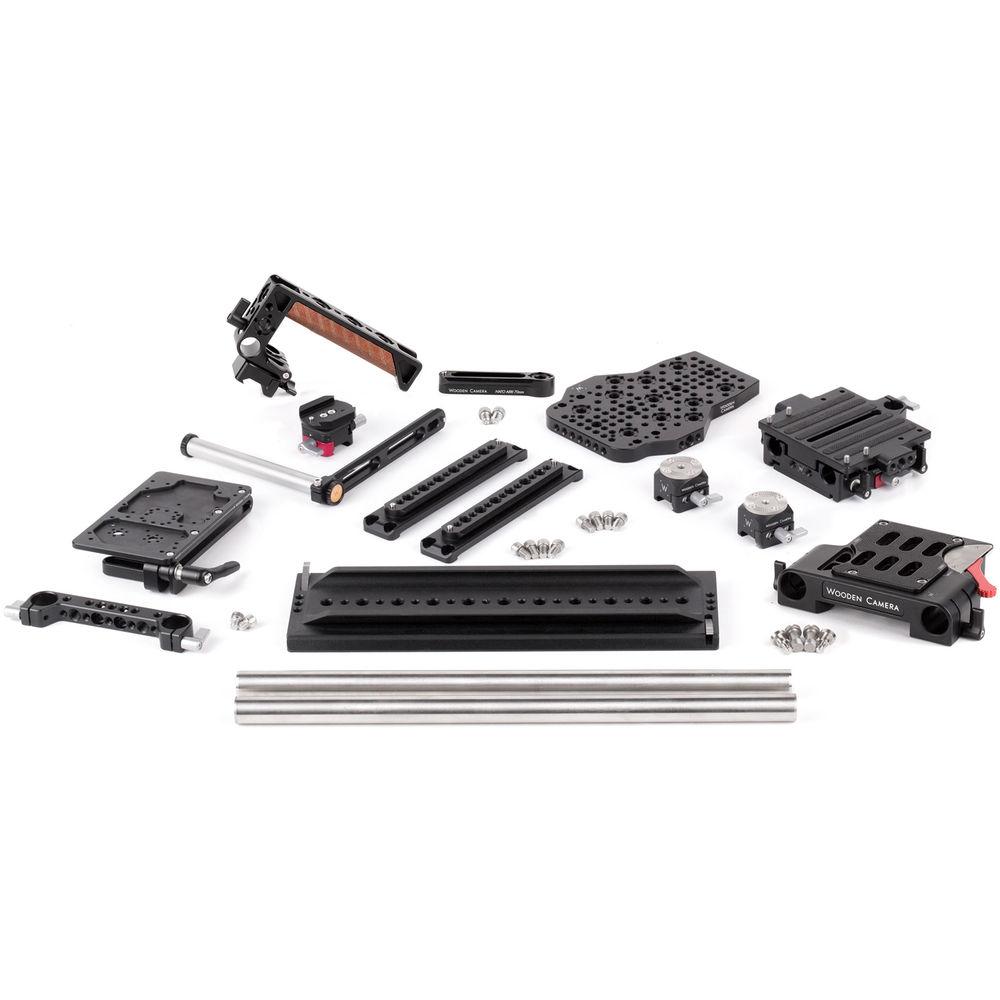

• 4 x M4 x 8mm Socket Cap Screw

• 4 x M4 x 14mm Socket Cap Screw

• 8 x 1/4-20 x 3/8" Socket Cap Screw

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• NATO Handle (Plus)

• Limited 1-Year Warranty

• 2 x 3/8"-16 Screw

• 2 x 1/4"-20 Screw

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2 x 1/4-20 x 1/4" Screw

• 2 x 1/4-20 x 3/4" Screw

• 1-Year Limited Warranty

• 2 x 1/4"-20 x 1/4" Socket Cap Screw

• 6 x M3 x 14mm Pan Head Screws

• 4 x M3 x 12mm Pan Head Screws

• 4 x M3 x 8mm Pan Head Screws

• 4 x M3 x 8mm Phillips Flat Head Screws

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Unified Cage (Alexa Mini+LW)

  Dimensions	6 x 4 x 7" (15 x 10 x 18 cm)
  Weight	2.6 lb (1.2 kg)

  Box Dimensions (LxWxH)	7.7 x 7.5 x 2.45"

• 19mm Support Rod (3")

  Rod Size	19 mm
  Rod Length	3" (7.6 cm)

  Box Dimensions (LxWxH)	3.2 x 1.25 x 0.8"

• NATO Handle Kit (Plus, 100mm Rail)

  NATO Rail Length	3.9" / 100 mm
  Rail Mounting Distance	Up to 2.8" / 72 mm apart

  Box Dimensions (LxWxH)	6.0 x 4.7 x 1.2"

• UVF Mount for ARRI Multi Viewfinder MVF-1 for Alexa Mini (No Clamp)

  Accessory Type	Mounting adapter
  Width	6.3 in
  Depth	5.7 in
  Height	1.8 in
  Weight	9.95 oz

  Intended For	Viewfinder

• Unified Bridgeplate (15mm Studio)

  Dimensions (L x W x H)	7 x 5 x 2" / 17.8 x 12.7 x 5.1 cm
  Weight	1 lb / 0.45 kg

  Box Dimensions (LxWxH)	8.8 x 6.4 x 2.5"

• 2060/2575/120EX Dovetail Plate for OConnor Tripods (12")

  Compatibility	OConnor 2060/2575/120EX and Sachtler Cine 30 tripods
  Dimensions	12 x 3.8 x 0.6" (30.48 x 9.65 x 1.52 cm)
  Weight	1.4 lb (0.63 kg)

  Box Dimensions (LxWxH)	12.9 x 4.05 x 0.95"

• WC-150400 Rod Clamp (19mm)

  Dimensions	6.2 x 1.2 x 0.6" (15.74 x 3.04 x 1.52 cm)
  Weight	0.2 lb (0.09 kg)

  Box Dimensions (LxWxH)	6.0 x 2.0 x 1.0"

• Battery Slide

  Dimensions	6.0 x 4.5 x 1.8" (152.4 x 114.3 x 45.7 mm)
  Weight	8 oz (226.8 g)

  Box Dimensions (LxWxH)	8.7 x 6.4 x 2.3"

• 19mm Support Rod (15")

  Rod Size	19 mm
  Rod Length	15" (38 cm)

  Box Dimensions (LxWxH)	15.4 x 2.0 x 0.85"
