Product description

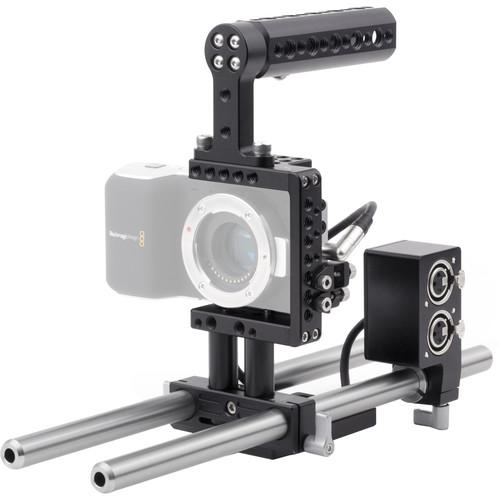

• Pocket Cage for Blackmagic Design Pocket Cinema Camera The Wooden Camera Pocket Cage is designed to make your Blackmagic Design Pocket Cinema Camera ready for video production use. It attaches to your camera using 1/4"-20 screws, one on the top and one on the bottom with two additional locating pins for a secure fitting. The cage features multiple 1/4"-20 and 3/8"-16 mounting holes for attaching accessories and mounting onto a tripod plate. The Pocket Camera's battery door remains unobstructed when in the Pocket Cage, allowing for easy SD card and battery changes. The cage can be combined with Wooden Camera's optional Pocket 15mm Base for a lightweight 15mm rod support. UPC: 700987993967
• Pocket Lock (Power) The Wooden Camera Pocket Lock (Power) for Blackmagic Pocket Cinema Camera protects the power input port from damage caused by cable snags and repeated use. The cable lock is designed to attach to Wooden Camera's optional Pocket Cage using an included M4 screw. It fits a wide range of Pocket Cinema Camera power accessories from Wooden Camera, as well as the AC adapter cable provided with the camera itself. The power cable is secured in place using a silver thumbscrew. To accommodate third party power accessories with cables too large to fit within the cable lock, a 2.5mm male to 2.5mm female adapter cable comes included.
  • • Cable lock attaches to optional Pocket Cage
    • M4 Screw and Allen wrench included
    • Thumbscrew secures power cable in place
    • Compatible with Wooden Camera power accessories for the Pocket Cinema Camera
    • 2.5mm male to 2.5mm female cable included to accommodate third party power accessories that are too large for the cable lock
  UPC: 700987994476
• Pocket Lock (HDMI) The Wooden Camera Pocket Lock (HDMI) for Blackmagic Pocket Cinema Camera protects the micro HDMI port from damage and helps prevent signal loss caused by your cable coming loose. The cable lock is designed to attach to Wooden Camera's Pocket Cage using the included M4 screw. Once attached, the lock keeps your micro HDMI cable from pulling out during your shoot. This is especially useful when recording to an external device. To further protect the HDMI port from repeated use, a micro HDMI male to HDMI type A female adapter cable is included, which is secured by tightening a silver thumbscrew.
  • • Cable lock attaches to optional Pocket Cage
    • M4 Screw and Allen wrench included
    • Thumbscrew to securely attach micro HDMI cable
    • Micro HDMI male to HDMI female cable
• 15mm Pocket Base The Wooden Camera 15mm Pocket Base is a height-adjustable baseplate attachment that provides 15mm lightweight rod support at the correct lens height for the Blackmagic Design Pocket Cinema Camera when combined with the Pocket Cage. The baseplate can attach to any tripod plate. Note: A separately sold Pocket Cage is required to attach the 15mm Pocket Base to the camera. UPC: 700987993974
• 15mm Support Rod (12") This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106123
• WC-153900 Top Handle (Cheese) The Wooden Camera WC-153900 Top Handle (Cheese) is used for securely carrying and stabilizing the camera during hand-held shooting. It bolts on to two 1/4-20 holes spaced 1.4" (36mm) apart center. The cheese grip handle bar features an array of 1/4-20 and 3/8-16 holes in standard spacing for accessory mounting. UPC: 610079105713
• A-Box Pocket Adapter The Wooden Camera A-Box Pocket Adapter is designed specifically for Blackmagic Design Pocket Cinema Camera. It helps adapt 2 industry standard XLR male plugs to 1 right angle 3.5mm stereo plug. The A-Box Adapter features professional grade connectors and comes with a bolt on a 19mm rod for attaching to any 1/4"-20 threaded hole and 15mm adapter bushing for clamping to 15mm rods. This adapter does not provide phantom power. UPC: 700987993981

• 2 x 1/4"-20 Screws

• Limited 1-Year Warranty

• M4 Socket Cap Screw

• Spare M3 Thumbscrew

• M3 Allen Wrench

• 2.5mm Male to 2.5mm Female Adapter Cable

• Limited 1-Year Warranty

• Micro HDMI Male to HDMI Female Cable

• M4 Socket Cap Screw

• Spare M3 Thumbscrew

• M3 Allen Wrench

• Limited 1-Year Warranty

• 2 x 1/4"-20 x 3/8" Socket Cap Screw

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2 x 1/4-20 x 1/2" Screw

• 1-Year Warranty

• 1/4"-20 x 3/8" Screw

• Bolt-On 19mm Rod

• 15mm Adapter Bushing

• Limited 1-Year Warranty
