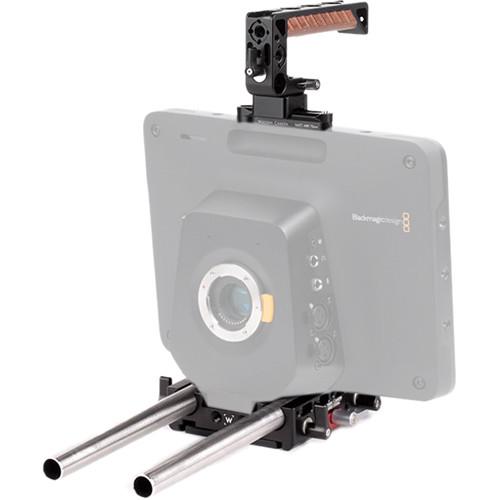

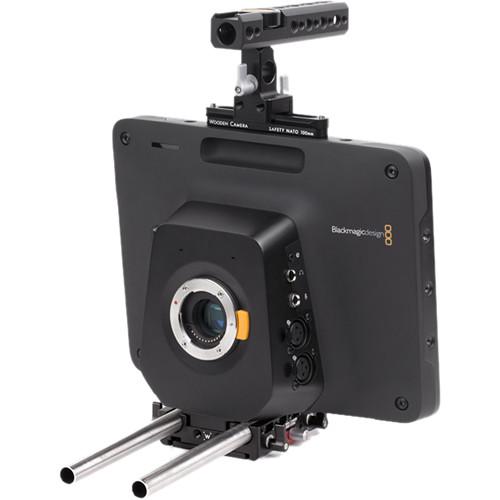

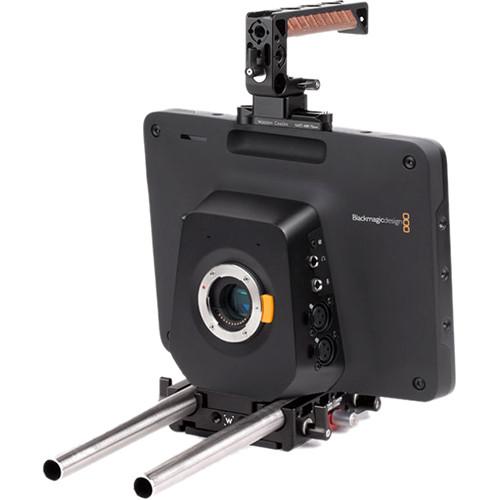

Product description The Basic Accessory Kit from Wooden Camera is a basic camera support package designed for the Blackmagic Studio Camera. This kit includes the following: a Fixed Base (BMSC) for holding the rods at the correct lens height, two 15mm Rods (12"), and a NATO Handle Kit (Plus, 100mm) that attaches to the top of the camera. - Fixed Base for Blackmagic Studio Camera 4K/HD The Fixed Base for Blackmagic Studio Camera 4K/HD supports optional LWS 15mm rods while providing the correct lens height for use with a matte box. It is designed specifically for the Blackmagic Studio Camera 4K/HD and features 1/4"-20 and 3/8"-16 holes on the sides for attaching accessories and on the bottom for attaching to a tripod or bridgeplate.
-
- LWS 15mm rod ports
- Maintains correct lens height for matte box use
- 1/4"-20 and 3/8"-16 accessory threads on sides
- 1/4"-20 and 3/8"-16 mounting threads on bottom
- Two, low profile, 3/8"-16 captive camera mounting screws included
- 15mm Support Rod (12") This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106123
- NATO Handle Kit (Plus, 100mm Rail) This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 3.9" / 100mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.
The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.
The NATO rail can be attached to any two 1/4"-20 threads positioned up to 72mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism. - NATO Quick Release
- The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.
- Rosette Based Rotating Grip
- The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.
- Sideways 15mm Rod Clamp
- The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.
- Front/Rear Rod Openings
- A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.
- Integrated Cold Shoe
- A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.
- Accessory Threads
- 1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.
- Optional Front Rod Clamp
- Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.
UPC: 700987994636 In the Box Bundle Items Fixed Base for Blackmagic Studio Camera 4K/HD dvexsqactryubarwrweywywyryxbtdz - 2 x Low Profile 3/8"-16 Camera Screw
2 x 15mm Support Rod (12") NATO Handle Kit (Plus, 100mm Rail) dvexsqactryubarwrweywywyryxbtdz Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Basic Accessory Kit for Blackmagic Studio Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Fixed Base for Blackmagic Studio Camera 4K/HD
| Rod Compatibility | LWS 15mm | | Camera Mount Screws | 2 x 3/8"-16 | | Accessory Mounting Threads | 1/4"-20 and 3/8"-16 | | | | Box Dimensions (LxWxH) | 4.8 x 4.3 x 1.4" | - 15mm Support Rod (12")
| Rod Size | 15 mm | | Rod Length | 12" (30.5 cm) | | | | Box Dimensions (LxWxH) | 12.05 x 1.35 x 0.6" | - NATO Handle Kit (Plus, 100mm Rail)
| NATO Rail Length | 3.9" / 100 mm | | Rail Mounting Distance | Up to 2.8" / 72 mm apart | | | | Box Dimensions (LxWxH) | 6.0 x 4.7 x 1.2" |
