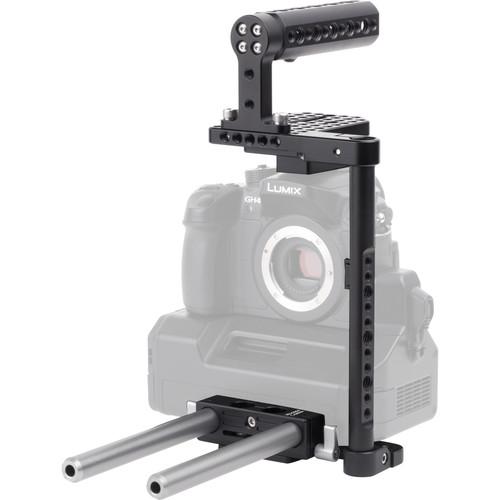

Product description The Basic Accessory Kit from Wooden Camera is a basic camera support package designed for the Panasonic GH4-YAGH camera. This kit includes the following: a Camera Cage for secure camera attachment, two 15mm Rods (6"), a DSLR 15mm Bracket for holding the rods at the correct lens height, and a bolt-on Top Handle (Cheese) for secure camera handling. - Camera Cage for Panasonic GH4 and YAGH Interface Unit The Camera Cage for Panasonic GH4 and YAGH Interface Unit from Wooden Camera expands the accessory mounting capabilities of the GH4 with attached YAGH Interface Unit, while maintaining a minimalist design that doesn't block access to camera controls. It attaches via one 3/8"-16 and one 1/4"-20 screw on the bottom and a hot shoe pinch on top, and features 1/4"-20 and 3/8"-16 threaded holes along the top and side and left side of the cage for adding a variety of accessories. The cage is also designed to work with Wooden Camera's 19mm and 15mm rod bridge plates, providing the proper rods to lens center height for use with a matte box.
-
- 1/4"-20 holes - in standard spacing (9mm center to center)
- 3/8"-16 holes - in ARRI standard spacing (50mm center to center)
- Leaves camera buttons accessible and LCD viewable
- 1/4" & 3/8" attachment screws
- Hot shoe pinch
UPC: 700987995244 - DSLR 15mm Bracket The DSLR 15mm Bracket from Wooden Camera provides 15mm lightweight rods at the correct lens height for larger DSLR cameras when combined with Quick Cage (DSLR, Large). Note: Quick Cage sold separately. UPC: 700987993431
- 15mm Support Rod (6") This is a single, 6" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106109
- WC-153900 Top Handle (Cheese) The Wooden Camera WC-153900 Top Handle (Cheese) is used for securely carrying and stabilizing the camera during hand-held shooting. It bolts on to two 1/4-20 holes spaced 1.4" (36mm) apart center. The cheese grip handle bar features an array of 1/4-20 and 3/8-16 holes in standard spacing for accessory mounting. UPC: 610079105713
In the Box Bundle Items Camera Cage for Panasonic GH4 and YAGH Interface Unit bzquydyfubuexzecxfct - 3/8"-16 Low Profile Screw
DSLR 15mm Bracket - 2 x 1/4 to 20 x 1/2 Socket Cap Screw
2 x 15mm Support Rod (6") WC-153900 Top Handle (Cheese) Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Basic Accessory Kit for Panasonic GH4-YAGH Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Camera Cage for Panasonic GH4 and YAGH Interface Unit
| Hole Pattern | 1/4"-20 in standard spacing (9mm center to center)
3/8"-16 in ARRI standard spacing (50mm center to center) | | | | Box Dimensions (LxWxH) | 11.0 x 6.0 x 0.3" | - DSLR 15mm Bracket
| | | Box Dimensions (LxWxH) | 5.039 x 3.858 x 0.709" | - 15mm Support Rod (6")
| Rod Size | 15 mm | | Rod Length | 6" (15 cm) | | | | Box Dimensions (LxWxH) | 6.1 x 2.0 x 1.5" | - WC-153900 Top Handle (Cheese)
| Dimensions | 4.8 x 2.7 x 1.9" (121.92 x 6.86 x 4.82 mm) | | Weight | 0.4 lb (181.43 g) | | | | Box Dimensions (LxWxH) | 7.7 x 4.35 x 2.3" |
