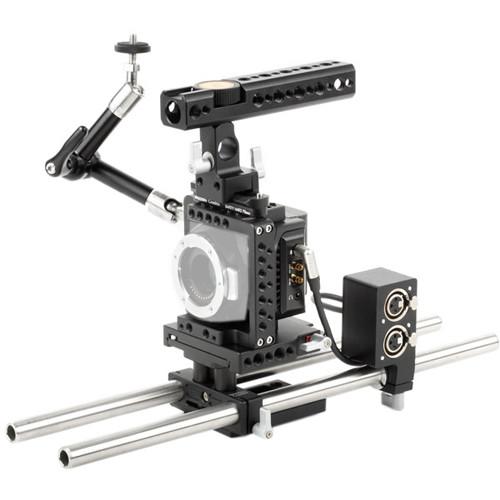

Product description The Blackmagic Micro Camera Accessory Kit (Advanced) from Wooden Camera is a camera support package for the Blackmagic Micro Cinema Camera & Blackmagic Micro Studio Camera. This accessory package includes a Micro Cage (BMMCC, BMMSC) which attaches around the camera to provide 1/4"-20 and 3/8"-16 mounting points as well as the ARRI accessory mount in two places, a Quick Base (Pocket, BMMCC, BMMSC), a quick release, 15mm Baseplate for holding the two 15mm Rods (15") at the correct lens height, a NATO Handle Kit (Plus, 70mm) a quick-release handle that attaches to the top of the cage, has a rotating top grip, multiple mounting points for accessories, integrated shoe mount, and a 15mm/19mm rod opening, a A-Box (Pocket, BMMCC, BMMSC) for XLR audio inputs, and the articulating WC Magic Arm (7") which can be used for attaching an on-board recorder or LCD.The Micro Cage (BMMCC, BMMSC) provides a form fitting cage for the Blackmagic Micro Cinema Camera and Blackmagic Micro Studio Camera. It attaches securely by two screws on the bottom and one screw on the top, and there are multiple mounting points on all sides allowing easy attachment of a tripod plate, accessories, or other production rigging. Batteries can be easily installed and removed and access is available to all ports and buttons.The Quick Base (Pocket, BMMCC, BMMSC) is a quick release baseplate for the Blackmagic Design Pocket Cinema Camera that provides lightweight 15mm pass through rods. The baseplate can be used in combination with the Pocket Cage and can attach to any tripod plate or ARRI standard bridgeplate. The two 15mm diameter iris rods are used for mounting accessories like follow focus, matte box, lens support, servo motors, and more. The NATO Handle Kit (Plus, 70mm) is a quick-release top handle that attaches and detaches without screws. It includes a NATO Handle (Plus) and Safety NATO Rail (70mm) at a reduced package price. To attach to camera, slide onto NATO rail and turn thumbscrew to lock in place.Made specifically for Blackmagic Design Pocket Cinema Camera, the A-Box (Pocket, BMMCC, BMMSC) adapts two industry standard XLR male plugs to one right angle 3.5mm stereo plug. The 7" Magic Arm is an articulating arm with 1/4"-20 threaded posts on each end, ratcheting center thumbscrew with rosette, and stainless steel ball-joint construction. - Micro Cage for Blackmagic Micro Cameras Expand the mounting options of your Blackmagic Micro Cinema or Micro Studio Camera with the Micro Cage from Wooden Camera, a formfitting cage that adds 1/4"-20 and 3/8"-16 mounting threads on all sides of the camera for easy attachment of a tripod plate, accessories, or creative camera rigging. It attaches using two screws on the top and one on bottom and maintains access to all ports and buttons, includes the battery compartment. Two ARRI standard accessory mounts enable attachment of optional accessories, such as a Wooden Camera's Microphone Shock Mount, Universal Offset Bracket, and Universal Hot Shoe.
- Features
-
- 1/4"-20 holes in standard 9 mm center-to-center spacing
- 3/8"-16 holes for larger accessories and tripod mounting
- Two ARRI-standard accessory mounts
UPC: 702534255016 - Pocket Quick Base for Blackmagic Design Pocket Cinema Camera The Wooden Camera Pocket Quick Base is a quick-release baseplate for the Blackmagic Design Pocket Cinema Camera and provides 15mm lightweight pass-through rod support. The baseplate can be used in combination with the Pocket Cage (sold separately) and can attach to any tripod plate.
- 1/4"-20 and 3/8"-16 holes for attaching accessories
- Quick-release slot based on an ARRI-standard dovetail
- 1/4"-20 and 3/8"-16 holes at the bottom for attaching to a tripod or bridgeplate
- 15mm Support Rod (15") This is a single, 15" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106130
- NATO Handle Kit (Plus, 70mm Rail) This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 2.8" / 70mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.
The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.
The NATO rail can be attached to any two 1/4"-20 threads positioned up to 42mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism. - NATO Quick Release
- The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.
- Rosette Based Rotating Grip
- The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.
- Sideways 15mm Rod Clamp
- The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.
- Front/Rear Rod Openings
- A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.
- Integrated Cold Shoe
- A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.
- Accessory Threads
- 1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.
- Optional Front Rod Clamp
- Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.
UPC: 700987994629 - A-Box Pocket Adapter The Wooden Camera A-Box Pocket Adapter is designed specifically for Blackmagic Design Pocket Cinema Camera. It helps adapt 2 industry standard XLR male plugs to 1 right angle 3.5mm stereo plug. The A-Box Adapter features professional grade connectors and comes with a bolt on a 19mm rod for attaching to any 1/4"-20 threaded hole and 15mm adapter bushing for clamping to 15mm rods. This adapter does not provide phantom power. UPC: 700987993981
- WC Magic Arm (7") The 7" WC Magic Arm from Wooden Camera is an articulating arm with 1/4"-20 threaded posts on each end, ratcheting center thumbscrew with rosette, and stainless steel ball-joint construction. It is suitable for attaching LCDs, lights, audio recorders, and similar accessories. UPC: 702534253319
In the Box Bundle Items Micro Cage for Blackmagic Micro Cameras ubrtqtydyv - 3 x 1/4"-20 x 3/8" Socket Cap Screws
- 8 x M3 x 10 Socket Cap Screws
Pocket Quick Base for Blackmagic Design Pocket Cinema Camera - 1/4"-20 Low Profile Screw
- 3/8"-16 Low Profile Screw
2 x 15mm Support Rod (15") NATO Handle Kit (Plus, 70mm Rail) A-Box Pocket Adapter WC Magic Arm (7") Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Blackmagic Micro Camera Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Micro Cage for Blackmagic Micro Cameras
| Mounting Threads | 1/4"-20 holes in standard spacing (9 mm center to center)
3/8"-16 holes in ARRI standard spacing (50 mm center to center)
2 x ARRI standard accessory mounts | | | | Box Dimensions (LxWxH) | 4.85 x 3.7 x 1.05" | - Pocket Quick Base for Blackmagic Design Pocket Cinema Camera
| | | Box Dimensions (LxWxH) | 7.8 x 4.4 x 1.5" | - 15mm Support Rod (15")
| Rod Size | 15 mm | | Rod Length | 15" (38 cm) | | | | Box Dimensions (LxWxH) | 15.0 x 1.0 x 1.0" | - NATO Handle Kit (Plus, 70mm Rail)
| NATO Rail Length | 2.8" / 70 mm | | Rail Mounting Distance | Up to 1.7" / 42 mm apart | | | | Box Dimensions (LxWxH) | 7.75 x 4.3 x 2.25" | - A-Box Pocket Adapter
| Dimensions | 3.0 x 3.0 x 7.0" (7.6 x 7.6 x 17.7 cm) | | Weight | 0.8 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 6.7 x 4.35 x 3.25" | - WC Magic Arm (7")
| | | Box Dimensions (LxWxH) | 7.6 x 5.5 x 1.3" |
