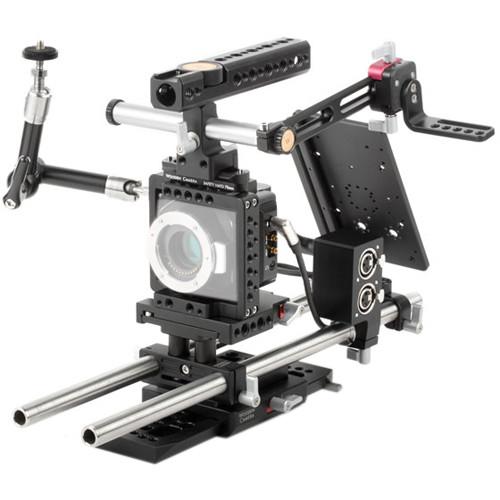

Wooden Camera Blackmagic Micro Cinema Camera

User Manual for Wooden Camera Blackmagic Micro Cinema Camera Accessory Kit

• Product category: Camcorder Supports & Rigs Wooden Camera
• Brand: Wooden Camera
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Wooden Camera Camcorder Supports & Rigs

Product description

• Micro Cage for Blackmagic Micro Cameras Expand the mounting options of your Blackmagic Micro Cinema or Micro Studio Camera with the Micro Cage from Wooden Camera, a formfitting cage that adds 1/4"-20 and 3/8"-16 mounting threads on all sides of the camera for easy attachment of a tripod plate, accessories, or creative camera rigging. It attaches using two screws on the top and one on bottom and maintains access to all ports and buttons, includes the battery compartment. Two ARRI standard accessory mounts enable attachment of optional accessories, such as a Wooden Camera's Microphone Shock Mount, Universal Offset Bracket, and Universal Hot Shoe.
  Features
  • • 1/4"-20 holes in standard 9 mm center-to-center spacing
    • 3/8"-16 holes for larger accessories and tripod mounting
    • Two ARRI-standard accessory mounts
  UPC: 702534255016
• Pocket Quick Base for Blackmagic Design Pocket Cinema Camera The Wooden Camera Pocket Quick Base is a quick-release baseplate for the Blackmagic Design Pocket Cinema Camera and provides 15mm lightweight pass-through rod support. The baseplate can be used in combination with the Pocket Cage (sold separately) and can attach to any tripod plate.
  • 1/4"-20 and 3/8"-16 holes for attaching accessories
  • Quick-release slot based on an ARRI-standard dovetail
  • 1/4"-20 and 3/8"-16 holes at the bottom for attaching to a tripod or bridgeplate
• 15mm Support Rod (15") This is a single, 15" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106130
• NATO Handle Kit (Plus, 70mm Rail) This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 2.8" / 70mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.

  The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.

  The NATO rail can be attached to any two 1/4"-20 threads positioned up to 42mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism.
  NATO Quick Release
  • The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.
  Rosette Based Rotating Grip
  • The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.
  Sideways 15mm Rod Clamp
  • The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.
  Front/Rear Rod Openings
  • A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.
  Integrated Cold Shoe
  • A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.
  Accessory Threads
  • 1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.
  Optional Front Rod Clamp
  • Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.
  UPC: 700987994629
• A-Box Pocket Adapter The Wooden Camera A-Box Pocket Adapter is designed specifically for Blackmagic Design Pocket Cinema Camera. It helps adapt 2 industry standard XLR male plugs to 1 right angle 3.5mm stereo plug. The A-Box Adapter features professional grade connectors and comes with a bolt on a 19mm rod for attaching to any 1/4"-20 threaded hole and 15mm adapter bushing for clamping to 15mm rods. This adapter does not provide phantom power. UPC: 700987993981
• WC Magic Arm (7") The 7" WC Magic Arm from Wooden Camera is an articulating arm with 1/4"-20 threaded posts on each end, ratcheting center thumbscrew with rosette, and stainless steel ball-joint construction. It is suitable for attaching LCDs, lights, audio recorders, and similar accessories. UPC: 702534253319
• 15mm Rod Clamp The Wooden Camera 15mm Rod Clamp attaches to 15mm rods to add 1/4"-20 screw-holes to your camera rig. Among the variety of accessories that can be mounted to these screw-holes is Wooden Camera's QB Battery Back Plate. This plate comes in different versions, each designed to have a different type of battery plate and ultimately battery attached to it. With these attached, the QB Battery Back Plate can be mounted right onto the screw-holes of the Rod Clamp. The ability to attach so is especially useful when you have no way of mounting a battery directly onto your camera and as an alternative are looking for a way to get the battery near the camera (so you can connect the two). UPC: 610079106260
• Battery Slide The Battery Slide from Wooden Camera is an adjustable mounting system for V-Mount, Gold Mount, QRC Gold Mount, and RED/BLUESHAPE battery plates. Multiple rows of pass-through holes allow the attachment of rod clamps, cheese plates, and other accessories.

  In order to adjust the plate's position, the user only needs to apply firm pressure to tilt it into place. Sliding the plate into position is facilitated by an adjustable thumbscrew. Both these movements make the plate ideal for adjusting counterbalance and transitioning from studio to handheld position. UPC: 610079106451
• Dovetail Clamp The Wooden Camera Dovetail Clamp allows you to attach cameras, baseplates, or accessories to an ARRI standard dovetail. It features slots at multiple locations for inserting mounting screws from underneath, and comes with two 3/8"-16 and two 1/4"-20 low profile screws. UPC: 610079106468
• Safety Dovetail Plate (8") The 8" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations. UPC: 610079106338
• UVF Mount (No Clamp) The Wooden Camera UVF Mount allows you to support an EVF or monitor from an available 15mm rod port on your rig. It is similar to the UVF v2 Mount but doesn't include a 15mm rod clamp. Instead, it is designed to be used with top handles or other on-camera hardware that have a rod clamp built-in. It features a NATO rail kit, UVF v2 sled, and L-bracket that combine to offer tilt, horizontal, and vertical adjustments for positioning your EVF or monitor.

  The NATO rail kit consists of a 15mm rod with a 4" NATO rail attached. The rod portion slots into a sideways-oriented rod clamp on your top handle or rig, allowing for tilt and distance adjustment. The included UVF v2 sled slides onto the NATO rail, securing into place using a thumbscrew, and provides attachment points for the L-bracket. The Sled can also attach to any NATO-standard rail.

  Your EVF or monitor attaches to the L-bracket, which supports devices with two 1/4"-20 screw holes spaced between 25mm and 36mm center to center. An adapter for using Alphatron, SmallHD, and other viewfinders with a single 1/4"-20 thread comes included. A safety pin at the end of the NATO rail prevents the mounting bracket and your monitor or EVF from accidental removal.
  • • UVF Mount without 15mm rod clamp
    • Use with top handles or rigs with a built-in sideways-oriented 15mm rod clamp
    • Accepts most EVFs and on-screen monitors
    • Tension thumbscrew to adjust tilt
    • NATO rail kit with 15mm rod and 4" NATO rail
    • UVF v2 sled attaches to any NATO compatible rail
    • Safety pin prevents accidental removal
    • L-bracket supports to two 1/4"-20 screw holes spaced between 25mm and 36mm center to center
    • Adapter for devices with single 1/4"-20 screw hole
    • Quick installation and removal
    • Screws and Allen wrenches included
  UPC: 700987995046

• 3 x 1/4"-20 x 3/8" Socket Cap Screws

• 8 x M3 x 10 Socket Cap Screws

• M2.5 Allen Wrench

• 3/16" Allen Wrench

• Limited 1-Year Warranty

• 1/4"-20 Low Profile Screw

• 3/8"-16 Low Profile Screw

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• NATO Handle (Plus)

• Limited 1-Year Warranty

• 1/4"-20 x 3/8" Screw

• Bolt-On 19mm Rod

• 15mm Adapter Bushing

• Limited 1-Year Warranty

• 2 x 1/4"-20 x 1/4" Screws

• 2 x 1/4"-20 x 3/4" Screws

• 1-Year Limited Warranty

• 2 x 1/4"-20 x 1/4" Socket Cap Screw

• 6 x M3 x 14mm Pan Head Screws

• 4 x M3 x 12mm Pan Head Screws

• 4 x M3 x 8mm Pan Head Screws

• 4 x M3 x 8mm Phillips Flat Head Screws

• Limited 1-Year Warranty

• 2 x 3/8"-16 Low Profile Screw

• 2 x 1/4"-20 Low Profile Screw

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• NATO Rail Kit

• Knuckle

• L-Bracket

• Alpha Adapter for Single 1/4"-20 Screw Hole

• 2 x #6-32 x 1/2" Flat Head Screw

• 2 x 1/4"-20 x 3/8" Socket Cap Screw

• 1/4"-20 x 1/4" Socket Cap Screw

• 3/16 Allen Wrench

• 5/64 Allen Wrench

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Micro Cage for Blackmagic Micro Cameras

  Mounting Threads

  1/4"-20 holes in standard spacing (9 mm center to center) 3/8"-16 holes in ARRI standard spacing (50 mm center to center) 2 x ARRI standard accessory mounts

  Box Dimensions (LxWxH)	4.85 x 3.7 x 1.05"

• Pocket Quick Base for Blackmagic Design Pocket Cinema Camera

  Box Dimensions (LxWxH)	7.8 x 4.4 x 1.5"

• 15mm Support Rod (15")

  Rod Size	15 mm
  Rod Length	15" (38 cm)

  Box Dimensions (LxWxH)	15.0 x 1.0 x 1.0"

• NATO Handle Kit (Plus, 70mm Rail)

  NATO Rail Length	2.8" / 70 mm
  Rail Mounting Distance	Up to 1.7" / 42 mm apart

  Box Dimensions (LxWxH)	7.75 x 4.3 x 2.25"

• A-Box Pocket Adapter

  Dimensions	3.0 x 3.0 x 7.0" (7.6 x 7.6 x 17.7 cm)
  Weight	0.8 lb (0.3 kg)

  Box Dimensions (LxWxH)	6.7 x 4.35 x 3.25"

• WC Magic Arm (7")

  Length

  7" (17.8 cm)

  Box Dimensions (LxWxH)	7.6 x 5.5 x 1.3"

• 15mm Rod Clamp

  Dimensions	4.4 x 1 x .6" (11 x 2.5 x 1.5 cm)
  Weight	.2 lbs (91 g)

  Box Dimensions (LxWxH)	3.0 x 1.95 x 1.0"

• Battery Slide

  Dimensions	6.0 x 4.5 x 1.8" (152.4 x 114.3 x 45.7 mm)
  Weight	8 oz (226.8 g)

  Box Dimensions (LxWxH)	8.7 x 6.4 x 2.3"

• Dovetail Clamp

  Dimensions	3.5 x 4 x 0.8" (9 x 10 x 2 cm)
  Weight	0.4 lb ( lb (164 g)

  Box Dimensions (LxWxH)	4.9 x 3.85 x 1.0"

• Safety Dovetail Plate (8")

  Dimensions	8.0 x 2.7 x 0.5" / 20.3 x 6.8 x 1.3 cm
  Weight	0.6 lb / 0.3 kg

  Box Dimensions (LxWxH)	9.0 x 2.8 x 0.65"

• UVF Mount (No Clamp)

  NATO Rail Length	4" (10.16 cm)
  Dimensions	6.7 x 0.9 x 0.6" (16.99 x 2.16 x 1.56 cm)
  Weight	7.8 oz (222 g)

  Box Dimensions (LxWxH)	8.8 x 6.4 x 2.3"
