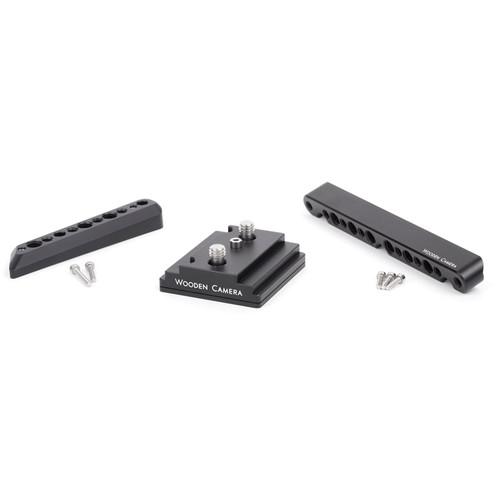

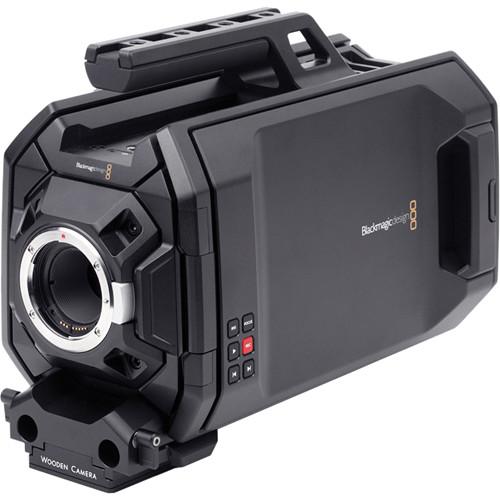

Product description The BlackMagic URSA Accessory Kit (Base) from Wooden Camera is a basic camera support package designed for the BlackMagic URSA camera. The kit includes a Bridgeplate Adapter (URSA), which adapts the camera to any tripod plate or ARRI standard bridgeplate and a Side Plate (URSA) and a Wireless Side Plate Adapter (URSA) which are side plates that expand mounting surface for attaching accessories. - Bridgeplate Adapter (URSA) The Bridgeplate Adapter (URSA) from Wooden Camera adapts the Blackmagic URSA Camera to any tripod plate or ARRI standard bridgeplate such as Bridgeplate (19mm) or Bridgeplate (15mm Studio). When studio rods are not needed, a Dovetail Clamp can be added instead to interface with 2060 Dovetails, Safety Dovetails, or Shoulder Rigs. UPC: 702534252749

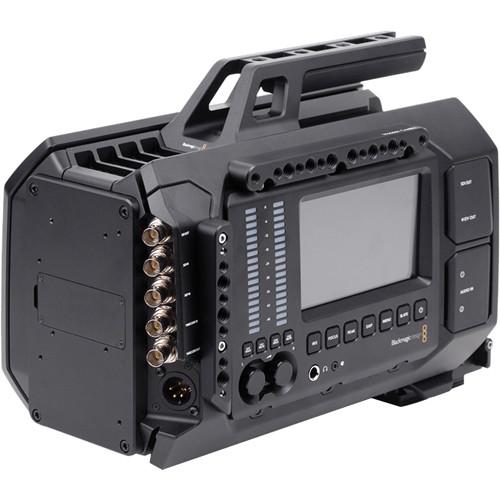

- Side Plate Blackmagic URSA Camera The Side Plate from Wooden Camera is a side mounting plate for Blackmagic URSA Camera. It attaches over the right side LCD control interface to expand mounting surface for accessories. There are arrays of 1/4"-20 and 3/8"-16 holes in standard spacing. UPC: 702534252633
- Wireless Side Plate Adapter for URSA The Wooden Camera Wireless Side Plate Adapter mounts next to the SDI connectors on the rear right side of the Blackmagic Design URSA camera and allows you to attach the Wooden Camera Universal Wireless Side Plate, sold separately. The Universal Wireless Side Plate supports various 1/4"-20 and 3/8"-16 accessories, including wireless receivers. UPC: 702534252640
In the Box Bundle Items Bridgeplate Adapter (URSA) vzbaaydxeeeq Side Plate Blackmagic URSA Camera Wireless Side Plate Adapter for URSA - M3 x 20mm Socket Cap Screw
- M3 x 16mm Socket Cap Screw
Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera BlackMagic URSA Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bridgeplate Adapter (URSA)
| Dimensions | 3.4 x 2.4 x 0.1" (86.6 x 59.9 x 2.9 mm) | | Weight | 0.1 lb (28 g) | | | | Box Dimensions (LxWxH) | 3.3 x 3.05 x 0.85" | - Side Plate Blackmagic URSA Camera
| | | Box Dimensions (LxWxH) | 6.4 x 2.8 x 0.4" | - Wireless Side Plate Adapter for URSA
| | | Box Dimensions (LxWxH) | 5.5 x 2.7 x 0.6" |
