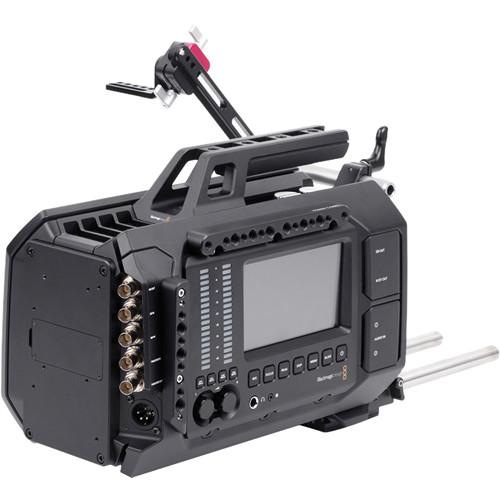

Product description The Blackmagic URSA Advanced Accessory Kit from Wooden Camera is a camera support package for the Blackmagic URSA camera. It includes a UVF Mount for supporting an EVF or external monitor, a bridge plate adapter for mounting the camera onto any tripod plate or ARRI standard bridge plate, and a pair of 9"-long 15mm rods that slot into the URSA's built-in rod mount. Also included in the kit are side mounting plates that add mounting threads on the right side of the camera for attaching various accessories. - UVF Mount for Blackmagic Design URSA Camera Attach an EVF or small LCD monitor to your Blackmagic Design URSA with this Wooden Camera UVF Mount. The universal design accommodates most EVFs and LCDs while offering three points of adjustment to achieve ideal positioning depending on the camera setup. All adjustments are tool-less with a rod clamp for adjusting horizontal positioning and rotation, a 4" NATO rail for telescoping the mount fore and aft, and a friction lock for swing adjustments. The NATO rail has a safety pin to prevent the mount from derailing accidentally. The system affixes directly to the URSA camera body via two 1/4"-20 screws. The included adapter allows for Alphatron and SmallHD hardware to be secured to this UVF mount.
- Compatibility
- Works with most hardware from the following brands and more:
- Alphatron
- Cineroid
- RED
- SmallHD
- Zacuto
UPC: 702534252725 - Bridgeplate Adapter (URSA) The Bridgeplate Adapter (URSA) from Wooden Camera adapts the Blackmagic URSA Camera to any tripod plate or ARRI standard bridgeplate such as Bridgeplate (19mm) or Bridgeplate (15mm Studio). When studio rods are not needed, a Dovetail Clamp can be added instead to interface with 2060 Dovetails, Safety Dovetails, or Shoulder Rigs. UPC: 702534252749
- 15mm Support Rod (9") This is a single, 9" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106116
- Side Plate Blackmagic URSA Camera The Side Plate from Wooden Camera is a side mounting plate for Blackmagic URSA Camera. It attaches over the right side LCD control interface to expand mounting surface for accessories. There are arrays of 1/4"-20 and 3/8"-16 holes in standard spacing. UPC: 702534252633
- Wireless Side Plate Adapter for URSA The Wooden Camera Wireless Side Plate Adapter mounts next to the SDI connectors on the rear right side of the Blackmagic Design URSA camera and allows you to attach the Wooden Camera Universal Wireless Side Plate, sold separately. The Universal Wireless Side Plate supports various 1/4"-20 and 3/8"-16 accessories, including wireless receivers. UPC: 702534252640
In the Box Bundle Items UVF Mount for Blackmagic Design URSA Camera - Adapter for SmallHD and Alphatron Viewfinders
Bridgeplate Adapter (URSA) 2 x 15mm Support Rod (9") Side Plate Blackmagic URSA Camera Wireless Side Plate Adapter for URSA - M3 x 20mm Socket Cap Screw
- M3 x 16mm Socket Cap Screw
Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Blackmagic URSA Advanced Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - UVF Mount for Blackmagic Design URSA Camera
| | | Box Dimensions (LxWxH) | 6.5 x 5.5 x 1.0" | - Bridgeplate Adapter (URSA)
| Dimensions | 3.4 x 2.4 x 0.1" (86.6 x 59.9 x 2.9 mm) | | Weight | 0.1 lb (28 g) | | | | Box Dimensions (LxWxH) | 3.3 x 3.05 x 0.85" | - 15mm Support Rod (9")
| Rod Size | 15 mm | | Rod Length | 9" (23 cm) | | | | Box Dimensions (LxWxH) | 9.5 x 0.5 x 0.5" | - Side Plate Blackmagic URSA Camera
| | | Box Dimensions (LxWxH) | 6.4 x 2.8 x 0.4" | - Wireless Side Plate Adapter for URSA
| | | Box Dimensions (LxWxH) | 5.5 x 2.7 x 0.6" |
