Wooden Camera Blackmagic URSA Pro Accessory

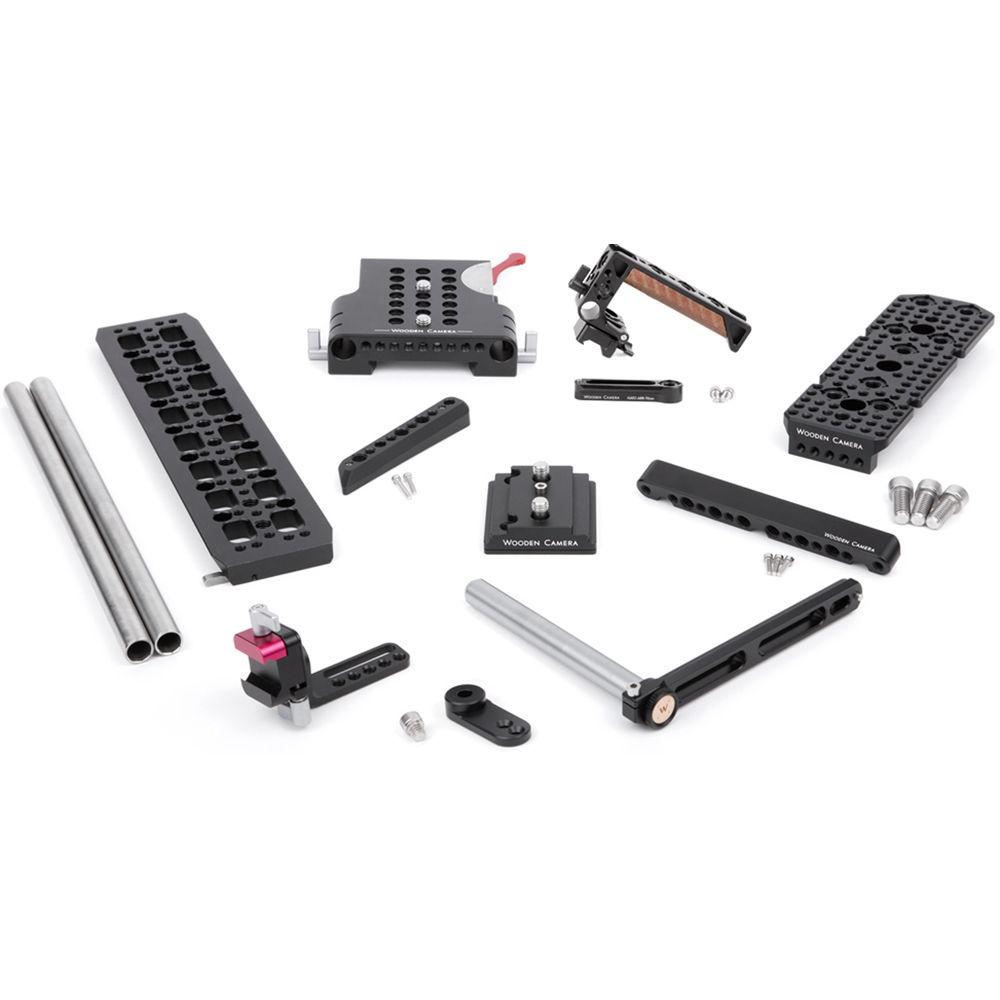

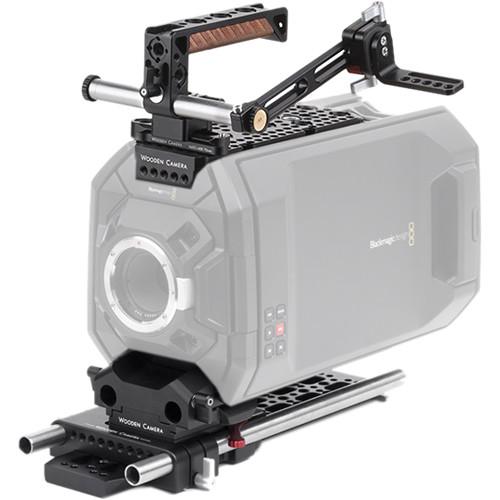

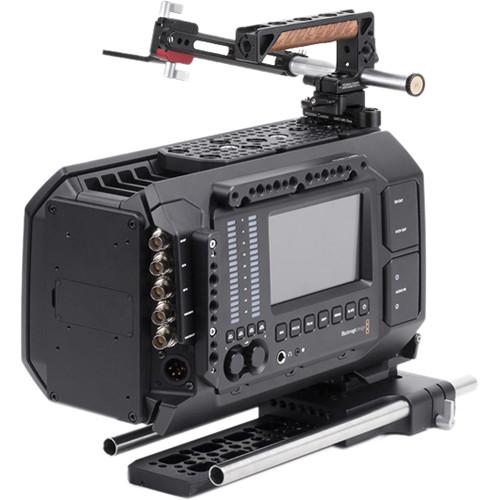

User Manual for Wooden Camera Blackmagic URSA Pro Accessory Kit with 15mm Rods

• Product category: Camcorder Supports & Rigs Wooden Camera
• Brand: Wooden Camera
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Wooden Camera Camcorder Supports & Rigs

Product description

• Top Plate for Blackmagic URSA Camera The Top Plate from Wooden Camera is a mounting plate for Blackmagic URSA Camera. The plate attaches to the camera top by three 3/8"-16 screws to expand mounting surface for accessories and fills channel to allow for Steadicam configurations. It features an array of 1/4"-20 and 3/8"-16 holes in standard spacing and ARRI accessory mounts (3/8"-16 holes with adjacent locating pins). UPC: 702534251810
• NATO Handle Kit (Plus, 70mm Rail) This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 2.8" / 70mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.

  The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.

  The NATO rail can be attached to any two 1/4"-20 threads positioned up to 42mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism.
  NATO Quick Release
  • The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.
  Rosette Based Rotating Grip
  • The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.
  Sideways 15mm Rod Clamp
  • The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.
  Front/Rear Rod Openings
  • A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.
  Integrated Cold Shoe
  • A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.
  Accessory Threads
  • 1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.
  Optional Front Rod Clamp
  • Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.
  UPC: 700987994629
• UVF Mount (No Clamp) The Wooden Camera UVF Mount allows you to support an EVF or monitor from an available 15mm rod port on your rig. It is similar to the UVF v2 Mount but doesn't include a 15mm rod clamp. Instead, it is designed to be used with top handles or other on-camera hardware that have a rod clamp built-in. It features a NATO rail kit, UVF v2 sled, and L-bracket that combine to offer tilt, horizontal, and vertical adjustments for positioning your EVF or monitor.

  The NATO rail kit consists of a 15mm rod with a 4" NATO rail attached. The rod portion slots into a sideways-oriented rod clamp on your top handle or rig, allowing for tilt and distance adjustment. The included UVF v2 sled slides onto the NATO rail, securing into place using a thumbscrew, and provides attachment points for the L-bracket. The Sled can also attach to any NATO-standard rail.

  Your EVF or monitor attaches to the L-bracket, which supports devices with two 1/4"-20 screw holes spaced between 25mm and 36mm center to center. An adapter for using Alphatron, SmallHD, and other viewfinders with a single 1/4"-20 thread comes included. A safety pin at the end of the NATO rail prevents the mounting bracket and your monitor or EVF from accidental removal.
  • • UVF Mount without 15mm rod clamp
    • Use with top handles or rigs with a built-in sideways-oriented 15mm rod clamp
    • Accepts most EVFs and on-screen monitors
    • Tension thumbscrew to adjust tilt
    • NATO rail kit with 15mm rod and 4" NATO rail
    • UVF v2 sled attaches to any NATO compatible rail
    • Safety pin prevents accidental removal
    • L-bracket supports to two 1/4"-20 screw holes spaced between 25mm and 36mm center to center
    • Adapter for devices with single 1/4"-20 screw hole
    • Quick installation and removal
    • Screws and Allen wrenches included
  UPC: 700987995046
• Bridgeplate Adapter (URSA) The Bridgeplate Adapter (URSA) from Wooden Camera adapts the Blackmagic URSA Camera to any tripod plate or ARRI standard bridgeplate such as Bridgeplate (19mm) or Bridgeplate (15mm Studio). When studio rods are not needed, a Dovetail Clamp can be added instead to interface with 2060 Dovetails, Safety Dovetails, or Shoulder Rigs. UPC: 702534252749
• WC-145300 ARRI Style Bridge Plate (15mm) The Wooden Camera WC-145300 ARRI Style Bridge Plate (15mm) features 15mm studio offset spacing (rods spaced 100mm center to center). Its height is compatible for use with the RED ONE camera. In addition, it can be used with the Universal Baseplate to adjust the lens height on the camera, or with the Easy Riser to adjust the lens height on the RED Epic and Scarlet cameras. UPC: 610079105133
• 15mm Support Rod (12") This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106123
• Safety Dovetail Plate (12") The 12" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations. UPC: 610079105492
• Side Plate Blackmagic URSA Camera The Side Plate from Wooden Camera is a side mounting plate for Blackmagic URSA Camera. It attaches over the right side LCD control interface to expand mounting surface for accessories. There are arrays of 1/4"-20 and 3/8"-16 holes in standard spacing. UPC: 702534252633
• Wireless Side Plate Adapter for URSA The Wooden Camera Wireless Side Plate Adapter mounts next to the SDI connectors on the rear right side of the Blackmagic Design URSA camera and allows you to attach the Wooden Camera Universal Wireless Side Plate, sold separately. The Universal Wireless Side Plate supports various 1/4"-20 and 3/8"-16 accessories, including wireless receivers. UPC: 702534252640

• 3 x 3/8"-16 Socket Cap Screw

• NATO Handle (Plus)

• Limited 1-Year Warranty

• NATO Rail Kit

• Knuckle

• L-Bracket

• Alpha Adapter for Single 1/4"-20 Screw Hole

• 2 x #6-32 x 1/2" Flat Head Screw

• 2 x 1/4"-20 x 3/8" Socket Cap Screw

• 1/4"-20 x 1/4" Socket Cap Screw

• 3/16 Allen Wrench

• 5/64 Allen Wrench

• Limited 1-Year Warranty

• 2 x Riser Screw

• 1-Year Limited Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 3 x M3 Socket Cap Screw

• M3 x 20mm Socket Cap Screw

• M3 x 16mm Socket Cap Screw

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Top Plate for Blackmagic URSA Camera

  Box Dimensions (LxWxH)	8.0 x 2.5 x 1.0"

• NATO Handle Kit (Plus, 70mm Rail)

  NATO Rail Length	2.8" / 70 mm
  Rail Mounting Distance	Up to 1.7" / 42 mm apart

  Box Dimensions (LxWxH)	7.75 x 4.3 x 2.25"

• UVF Mount (No Clamp)

  NATO Rail Length	4" (10.16 cm)
  Dimensions	6.7 x 0.9 x 0.6" (16.99 x 2.16 x 1.56 cm)
  Weight	7.8 oz (222 g)

  Box Dimensions (LxWxH)	8.8 x 6.4 x 2.3"

• Bridgeplate Adapter (URSA)

  Dimensions	3.4 x 2.4 x 0.1" (86.6 x 59.9 x 2.9 mm)
  Weight	0.1 lb (28 g)

  Box Dimensions (LxWxH)	3.3 x 3.05 x 0.85"

• WC-145300 ARRI Style Bridge Plate (15mm)

  Dimensions	6.9 x 4.5 x 1.2" (175.26 x 114.3 x 30.48 mm)
  Weight	1.2 lb (0.54 kg)

  Box Dimensions (LxWxH)	6.0 x 5.0 x 2.0"

• 15mm Support Rod (12")

  Rod Size	15 mm
  Rod Length	12" (30.5 cm)

  Box Dimensions (LxWxH)	12.05 x 1.35 x 0.6"

• Safety Dovetail Plate (12")

  Dimensions	12.0 x 2.7 x 0.5" / 30.5 x 6.8 x 1.3 cm
  Weight	0.9 lb / 0.4 kg

  Box Dimensions (LxWxH)	12.2 x 3.6 x 0.5"

• Side Plate Blackmagic URSA Camera

  Box Dimensions (LxWxH)	6.4 x 2.8 x 0.4"

• Wireless Side Plate Adapter for URSA

  Box Dimensions (LxWxH)	5.5 x 2.7 x 0.6"
