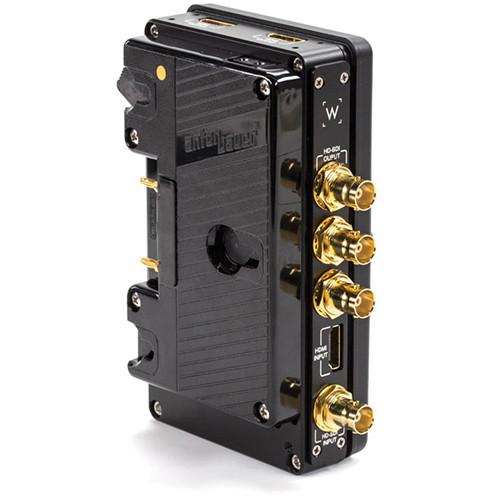

User Manual for Wooden Camera C-Box 3G-SDI and HDMI Converter Click to enlarge the picture
Contents of the user manual for the Wooden Camera C-Box 3G-SDI and HDMI
- Product category: Signal Converters Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Signal Converters
|
User manual for the Wooden Camera C-Box 3G-SDI and HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|
Product description Slotting between any Anton Bauer Gold Mount plate and battery, the Wooden Camera C-Box 3G-SDI and HDMI Converter provides both video signal conversion and signal splitting. It accepts an HDMI or 3G/HD/SD-SDI input signal and provides three SDI and two HDMI outputs that are all simultaneously active. This lets you send your video signal to several external HDMI and SDI devices, including monitors, records, and wireless transmitters.
The converter accepts 12 to 24 VDC power from an optional Gold Mount battery mounted to a male Gold Mount plate. Power is then passed through to your camera via a female Gold Mount plate on the reverse side. The Gold Mount male plate has an additional D-Tap output for powering accessories. A 5 VDC Mini USB output is also provided on the converter itself, useful for powering wireless transmitters. To monitor the power and signal status, there are LED indicators are operator's side of the converter. -
- Attaches between any Gold Mount battery and plate
- HDMI and 3G/HD/SD-SDI inputs (selectable via a switch on the operator's side)
- Three 3G/HD/SD-SDI outputs and two HDMI outputs; simultaneously active
- Re-clocks SDi outputs to match original signal strength
- Auto bypasses non-standard SDI rates from 20 Mbps to 3 Gbps
- Passes SDI embedded audio and ancillary data
- Draws power from optional Gold Mount battery and passes it to camera
- D-Tap power output on male Gold Mount plate
- 5 VDC Mini USB output for accessory power
- LED indicators for signal and power on operator's side
- 1/4"-20 holes on the bottom of the device for attaching rod clamps, cheeseplate, and other accessories
UPC: 700987994698 In the Box Wooden Camera C-Box 3G-SDI and HDMI Converter (Gold Mount) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera C-Box 3G-SDI and HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 176400 Specs | Inputs | 1 x 3G/HD/SD-SDI, BNC connector
1 x HDMI, Type A | | Outputs | 3 x 3G/HD/SD-SDI, BNC connectors
2 x HDMI, Type A | | Data Types | SMPTE 259M/292M/424M | | Data Rates | 19 Mbps to 3.0 Gbps | | Re-Clocking Data Rates | 270 Mbps, 1.485 Gbps, 2.97 Gbps | | Input/Output Return Loss | > 15 dB (HD-SDI)
> 12 dB (3G-SDI) | | Input Level | 800 mV P-P, ± 20% | | Input Impedance | 75 ohm, ± 1% | | Output Level | 800 mV P-P, ± 5% | | Output Impedance | 75 ohm, ± 1% | | Output Jitter | < 0.2 UI | | Mounting Threads | 1/4"-20 holes on bottom | | Power Input | Anton Bauer Gold Mount, 12 to 24 VDC, 0.5 A | | USB Power Port | 1 x Mini USB, 5 VDC | | Operating Temperature | 32 to 104° (0 to 40° C) | | Operating Humidity | 0 to 90% non-condensing | | Dimensions | 5 x 3 x 7" (12.7 x 7.6 x 17.8 cm) | | Weight | 1.4 lb (0.635 kg) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.7 x 6.4 x 3.4" |
