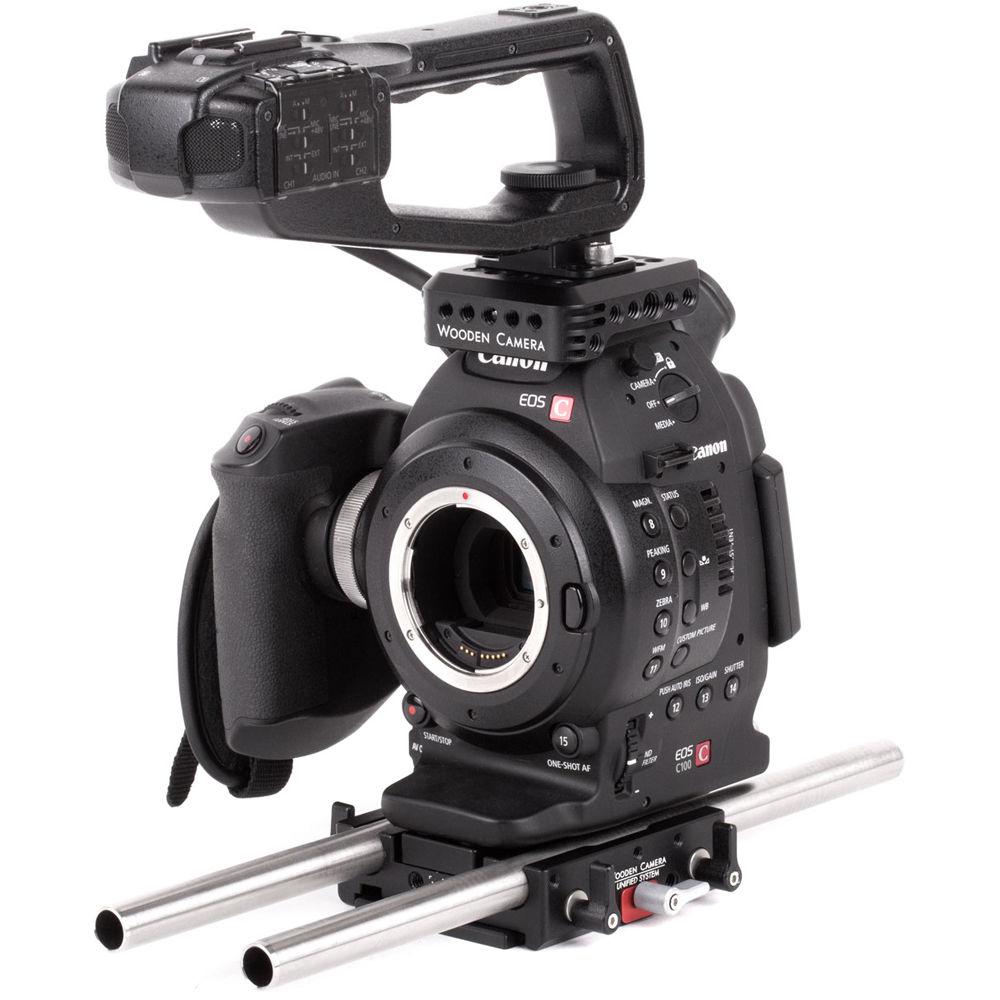

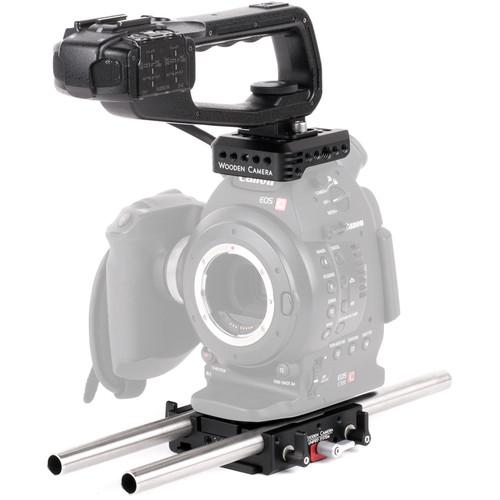

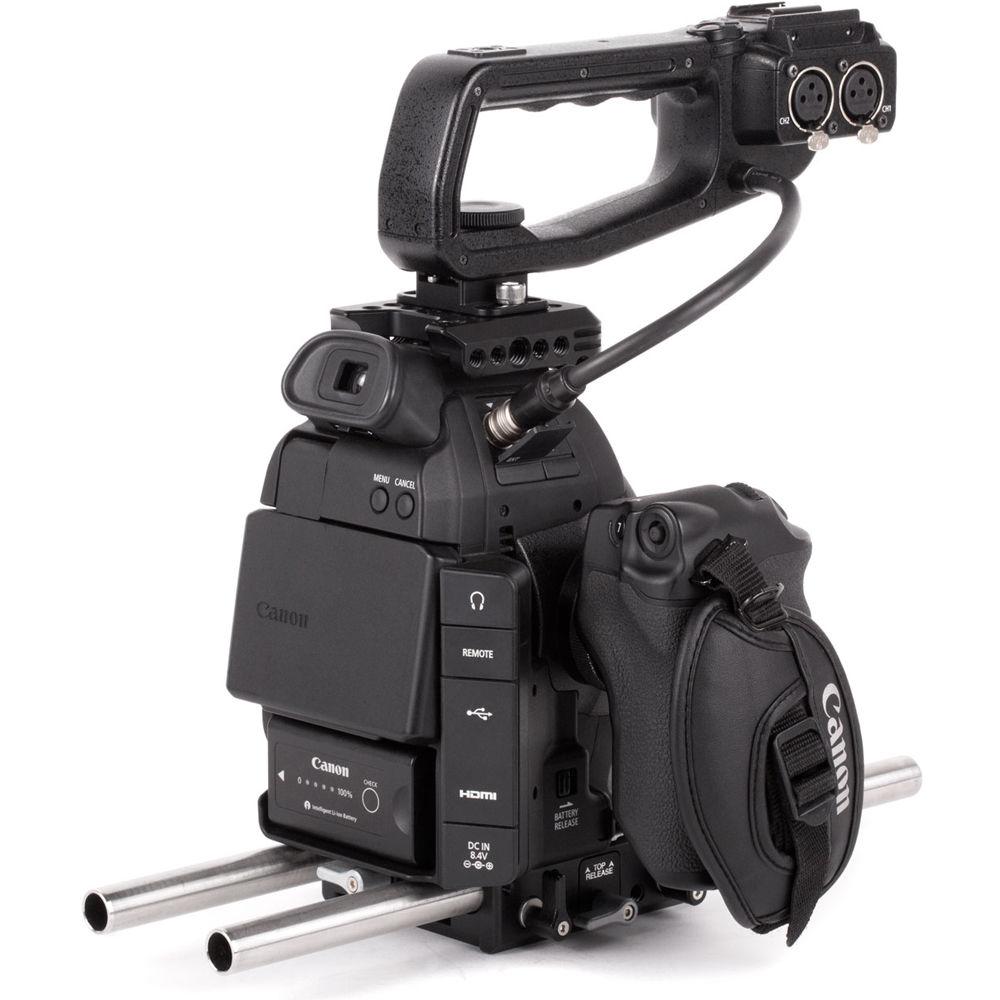

Product description The Wooden Camera Canon C100/C100mkII Unified Accessory Kit (Base) is a camera support package designed for the Canon C100 and C100mkII cameras. The C100 accessory package includes the Top Plate (C100, C300, C500), a top mounting camera cheese plate, Unified Baseplate (Canon C100, C100mkII), a quick release baseplate, two 15mm Rods (12”), and the Shoe Handle Mount. The kit measures 13 x 6 x 3” and weighs 1.8 lb.
The Unified Baseplate is designed for use with Sony FS7, Canon C100mkII, C300mkII, C100, C300, and C500 cameras. It is a quick release baseplate that provides lightweight 15mm rod support at the correct lens height. 15mm rods pass through front to back and have 2 locking thumbscrews per side. The baseplate releases quickly in two ways, giving the user the option to take the 15mm lightweight rods or to leave them behind.
The Top Plate for C100, C300, and C500 provides numerous 1/4" and multiple 3/8" threads on the top and sides for EVF mounts, handles, monitors, and other accessories. You can also attach an optional Wooden Camera Shoe Handle Mount to this top plate and attach the original Canon handle or monitor to the Shoe Handle Mount.
Machined from stainless steel for corrosion resistance and maximum rigidity, the 15mm Support Rod (12") comes in a pack of 2 and is used for mounting accessories including follow focus systems, matte boxes, lens supports, and servo motors. The rod is chamfered at each end to ease sliding accessories on and off the rod and for inserting the rod into your rod clamp.
The Shoe Handle Mount is designed to attach the original handles and LCD monitors of the Canon C100, C300, and C500 cameras onto various Wooden Camera products made for these cameras, such as the Top Plate for C100/C300/C500. You can also attach on-camera lights, microphone shock mounts, flashes, and other accessories, and a 1/4" thread at the center will let you attach articulating arms. The mount screws into two holes up to 18mm apart lengthwise and two holes between 33mm and 36mm widthwise. Two screws come included. - Unified Baseplate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500 The Wooden Camera Unified Baseplate supports 15mm LWS rods at the correct lens height, and offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit. This Kit allows you to support different lens adapters from Wooden Camera, Metabones, and other brands.
The Baseplate includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Dovetail Camera Plate for the Sony FS7 and Canon C100 Mk II, C300 Mk II, and C100/C300/C500. Other Unified Baseplate Dovetail Plates are also supported, allowing for quick swaps with a variety of cameras.
The Baseplate provides two quick release options. You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig.
The Dovetail Camera Plate features a long slot along its center that lets you secure it to the camera with multiple screws (included), which can be set up to 2.8" (70mm) apart. It also has a non-slip rubber surface that will prevent the camera from twisting.
The Dovetail Camera Plate has an ARCA Swiss standard dovetail compatible with many third-party products. It also has threaded 1/4"-20 threaded holes on the bottom for attaching to gimbals or other compatible tripod plates. The Lower Quick Dovetail has 1/4"-20 and 3/8"-16 threaded holes for attaching to tripod plates or ARRI standard bridgeplates, such as the Wooden Camera Unified Bridgeplates.
The Unified Baseplate can also be upgraded for VCT-14 compatible mounting options. Simply attach it to the optional Unified VCT Wedge Plate, which can then be mounted on the Unified VCT-14 Tripod Plate, also sold separately. The Unified Baseplate is backward compatible with Wooden Camera's original Quick Dovetails (Standard, DSLR, and Large). - Key Features
-
- Supports 15mm LWS rods at the correct lens height
- Offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit (for lens adapter support)
- Includes the Core Unit, Lower Quick Dovetail tripod plate, and Dovetail Camera Plate
- Two quick release options—remove Core Unit or remove Dovetail Camera Plate
- Core Unit features a dovetail on the bottom, compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig
- Dovetail Camera Plate features an ARCA Swiss standard dovetail and threaded holes for attaching to gimbals or other compatible tripods plates
- Lower Quick Dovetail offers threaded holes for attaching to tripod plates or ARRI standard bridgeplates
- Long slot along the center allows multiple screws to be attached to the camera, set up to 2.8" (70mm) apart
- Anti-twist, non-slip rubber surface
- Upgradable for VCT-14 compatible mounting options
- Additional Lower Quick Dovetail and Dovetail Camera Plates can be purchased for quick swap capability
- Backward compatible with original Wooden Camera Quick Dovetail
UPC: 702534256464 - Top Plate for C100, C300, C500 The Top Plate for C100, C300, C500 from Wooden Camera provides numerous 1/4" and multiple 3/8" threads on the top and sides for EVF mounts, handles, monitors, and other accessories. You can also attach an optional Wooden Camera Shoe Handle Mount to this top plate and attach the original Canon handle or monitor to the Shoe Handle Mount. UPC: 610079106826
- 15mm Support Rod (12") This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106123
- Shoe Handle Mount The Wooden Camera Shoe Handle Mount is designed to attach the original handles and LCD monitors of the Canon C100, C300, and C500 cameras onto various Wooden Camera products made for these cameras, such as the Top Plate for C100/C300/C500. You can also attach on-camera lights, microphone shock mounts, flashes, and other accessories, and a 1/4" thread at the center will let you attach articulating arms. The mount screws into two holes up to 18mm apart lengthwise and two holes between 33mm and 36mm widthwise. Two screws come included. UPC: 610079106833
In the Box Bundle Items Unified Baseplate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500 statqwxsywcevwvyevs - Unified Baseplate Core Unit (No Dovetails)
- Unified Baseplate Camera Dovetail Plate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500
- Unified Baseplate Lower Quick Dovetail
Top Plate for C100, C300, C500 - 1/4" High Collar Lock Washer
2 x 15mm Support Rod (12") Shoe Handle Mount Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Canon C100 C100mkII Unified Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Unified Baseplate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500
| Dimensions | 2 x 6 x 6" (5 x 15 x 15 cm) | | Weight | 0.8 lb (363 g) | | | | Box Dimensions (LxWxH) | 4.95 x 4.6 x 1.15" | - Top Plate for C100, C300, C500
| Dimensions | 3 x 4 x 1" (7.6 x 10.1 x 2.5 cm) | | Weight | 0.2 lb (91 g) | | | | Box Dimensions (LxWxH) | 4.0 x 4.0 x 2.0" | - 15mm Support Rod (12")
| Rod Size | 15 mm | | Rod Length | 12" (30.5 cm) | | | | Box Dimensions (LxWxH) | 12.05 x 1.35 x 0.6" | - Shoe Handle Mount
| Dimensions | 1 x 1 x .5" (2.5 x 2.5 x 1.3 cm) | | Weight | 1.6 oz (45 g) | | | | Box Dimensions (LxWxH) | 3.9 x 2.0 x 0.8" |
