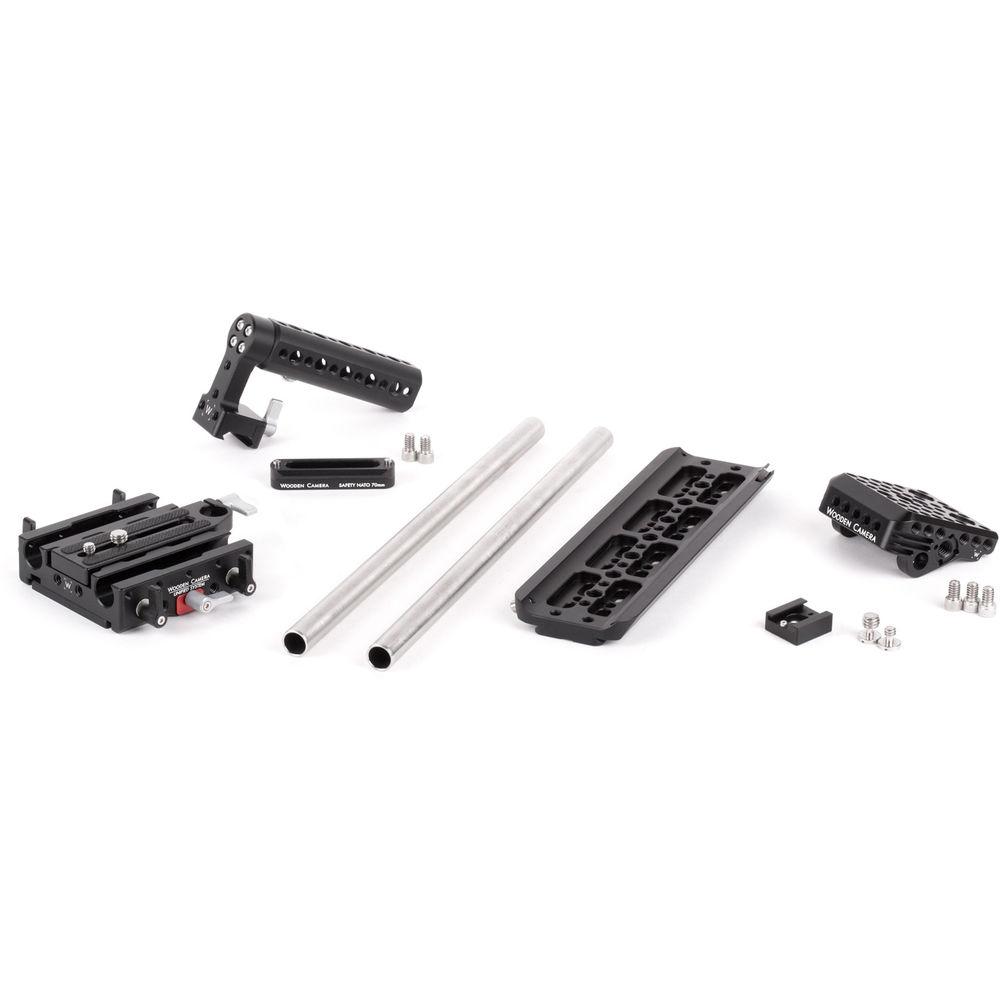

Product description

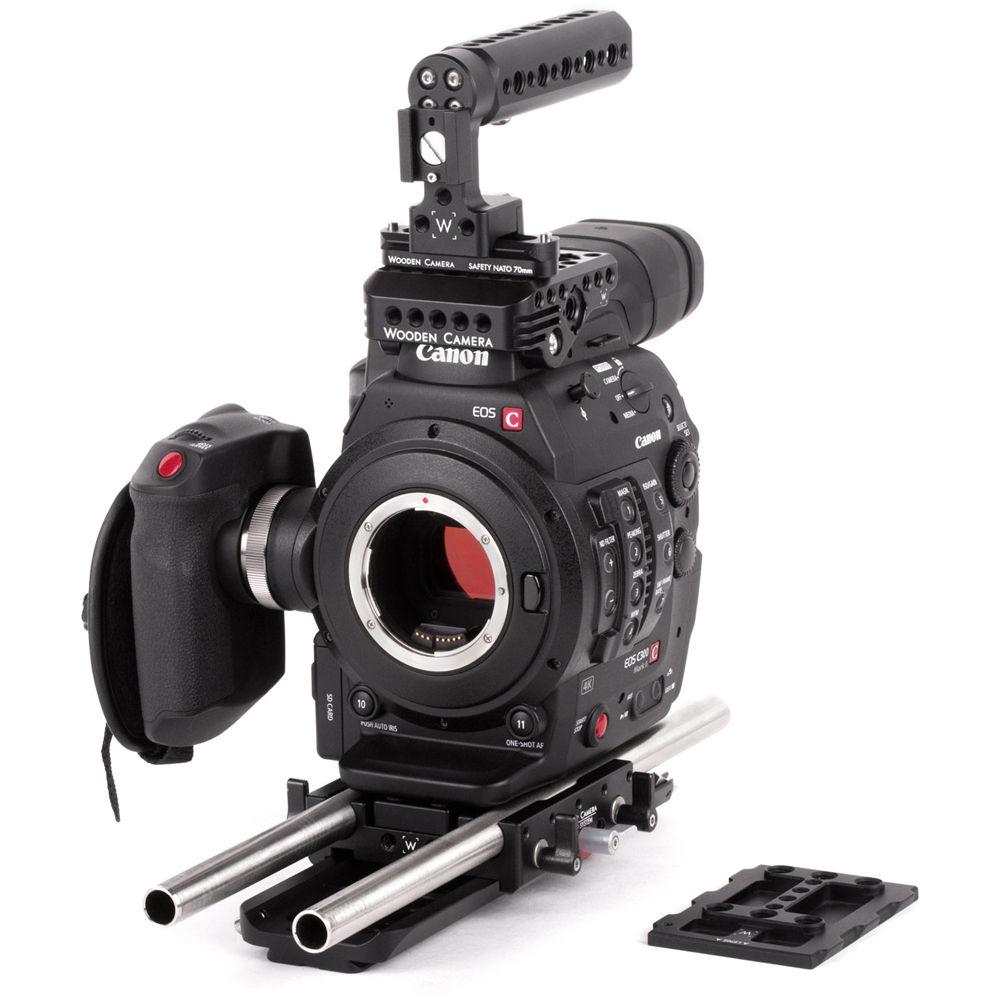

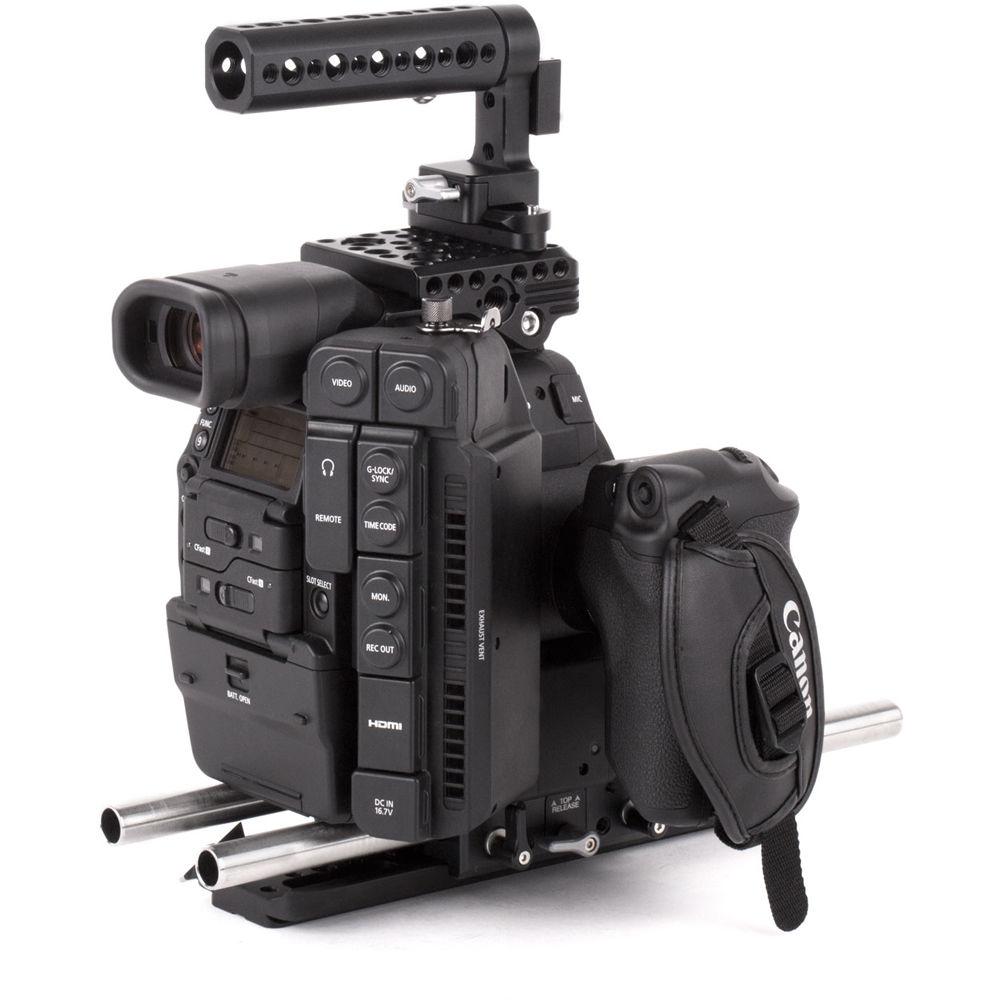

• Top Plate for Canon C300 Mark II Camera Mount an EVF, a handle, or other accessory to the top of your C300 Mark II camera with this Wooden Camera Top Plate. Threaded 1/4"-20, 3/8"-16, and ARRI standard tapped holes are available on the top and sides for versatile accessory placement. All necessary mounting hardware is included, as is a shoe mount for mounting Canon's LCD unit. UPC: 702534255757
• Unified Baseplate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500 The Wooden Camera Unified Baseplate supports 15mm LWS rods at the correct lens height, and offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit. This Kit allows you to support different lens adapters from Wooden Camera, Metabones, and other brands.

  The Baseplate includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Dovetail Camera Plate for the Sony FS7 and Canon C100 Mk II, C300 Mk II, and C100/C300/C500. Other Unified Baseplate Dovetail Plates are also supported, allowing for quick swaps with a variety of cameras.

  The Baseplate provides two quick release options. You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig.

  The Dovetail Camera Plate features a long slot along its center that lets you secure it to the camera with multiple screws (included), which can be set up to 2.8" (70mm) apart. It also has a non-slip rubber surface that will prevent the camera from twisting.

  The Dovetail Camera Plate has an ARCA Swiss standard dovetail compatible with many third-party products. It also has threaded 1/4"-20 threaded holes on the bottom for attaching to gimbals or other compatible tripod plates. The Lower Quick Dovetail has 1/4"-20 and 3/8"-16 threaded holes for attaching to tripod plates or ARRI standard bridgeplates, such as the Wooden Camera Unified Bridgeplates.

  The Unified Baseplate can also be upgraded for VCT-14 compatible mounting options. Simply attach it to the optional Unified VCT Wedge Plate, which can then be mounted on the Unified VCT-14 Tripod Plate, also sold separately. The Unified Baseplate is backward compatible with Wooden Camera's original Quick Dovetails (Standard, DSLR, and Large).
  Key Features
  • • Supports 15mm LWS rods at the correct lens height
    • Offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit (for lens adapter support)
    • Includes the Core Unit, Lower Quick Dovetail tripod plate, and Dovetail Camera Plate
    • Two quick release options—remove Core Unit or remove Dovetail Camera Plate
    • Core Unit features a dovetail on the bottom, compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig
    • Dovetail Camera Plate features an ARCA Swiss standard dovetail and threaded holes for attaching to gimbals or other compatible tripods plates
    • Lower Quick Dovetail offers threaded holes for attaching to tripod plates or ARRI standard bridgeplates
    • Long slot along the center allows multiple screws to be attached to the camera, set up to 2.8" (70mm) apart
    • Anti-twist, non-slip rubber surface
    • Upgradable for VCT-14 compatible mounting options
    • Additional Lower Quick Dovetail and Dovetail Camera Plates can be purchased for quick swap capability
    • Backward compatible with original Wooden Camera Quick Dovetail
  UPC: 702534256464
• 15mm Support Rod (12") This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106123
• NATO Cheese Handle Kit (70mm) The 70mm NATO Cheese Handle Kit from Wooden Camera is designed for quick release attaching and detaching on the camera without screws. To attach the handle, you can simply slide it onto a Safety NATO Rail and tighten down the thumbscrew. The cheese grip provides mounting points for additional accessories.

  The 70mm NATO standard quick-release rail attaches to any two 1/4"-20 holes to provide mount for NATO Handles and NATO Clamps. It features spring loaded pins on each end to prevent accidental accessory removal. It is compatible with RED and third party NATO style accessories.
  • Cheese grip with 19mm opening at rear
  • Arrays of 1/4"-20 and 3/8"-16 holes provide mounting points for additional accessories
  UPC: 700987993752
• Safety Dovetail Plate (8") The 8" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations. UPC: 610079106338

• 3 x 1/4"-20 x 3/8" Socket Cap Screws

• 1/4"-20 Low-Profile Screw

• 3/8"-16 Low-Profile Screw

• Limited 1-Year Warranty

• Unified Baseplate Core Unit (No Dovetails)

• Unified Baseplate Camera Dovetail Plate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500

• Unified Baseplate Lower Quick Dovetail

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 148800 NATO Handle (Cheese)

• WC-151300 Safety NATO Accessory Rail (70mm)

• 2 x 1/4"-20 x 3/8" Screw

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Top Plate for Canon C300 Mark II Camera

  Dimensions	2.8 x 2.5 x 0.9" / 71.4 x 64.1 x 23.3 mm
  Weight	0.3 lb / 117 g

  Box Dimensions (LxWxH)	3.3 x 3.3 x 1.4"

• Unified Baseplate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500

  Dimensions	2 x 6 x 6" (5 x 15 x 15 cm)
  Weight	0.8 lb (363 g)

  Box Dimensions (LxWxH)	4.95 x 4.6 x 1.15"

• 15mm Support Rod (12")

  Rod Size	15 mm
  Rod Length	12" (30.5 cm)

  Box Dimensions (LxWxH)	12.05 x 1.35 x 0.6"

• NATO Cheese Handle Kit (70mm)

  Dimensions	4.8 x 4.0 x 3.2" (121.9 x 101.6 x 81.2 mm)
  Weight	0.5 lb (0.2 kg)

  Box Dimensions (LxWxH)	6.0 x 3.1 x 1.0"

• Safety Dovetail Plate (8")

  Dimensions	8.0 x 2.7 x 0.5" / 20.3 x 6.8 x 1.3 cm
  Weight	0.6 lb / 0.3 kg

  Box Dimensions (LxWxH)	9.0 x 2.8 x 0.65"
