Wooden Camera Canon C300mkII Unified Accessory

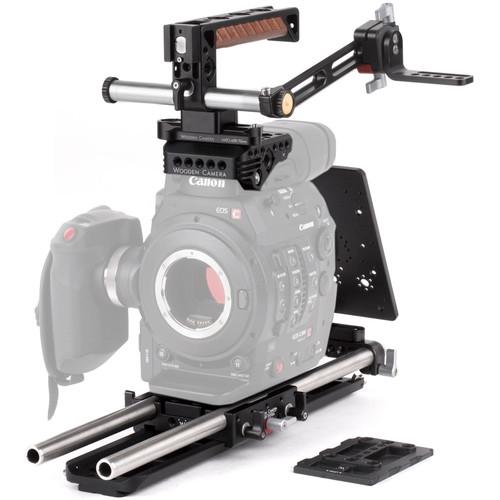

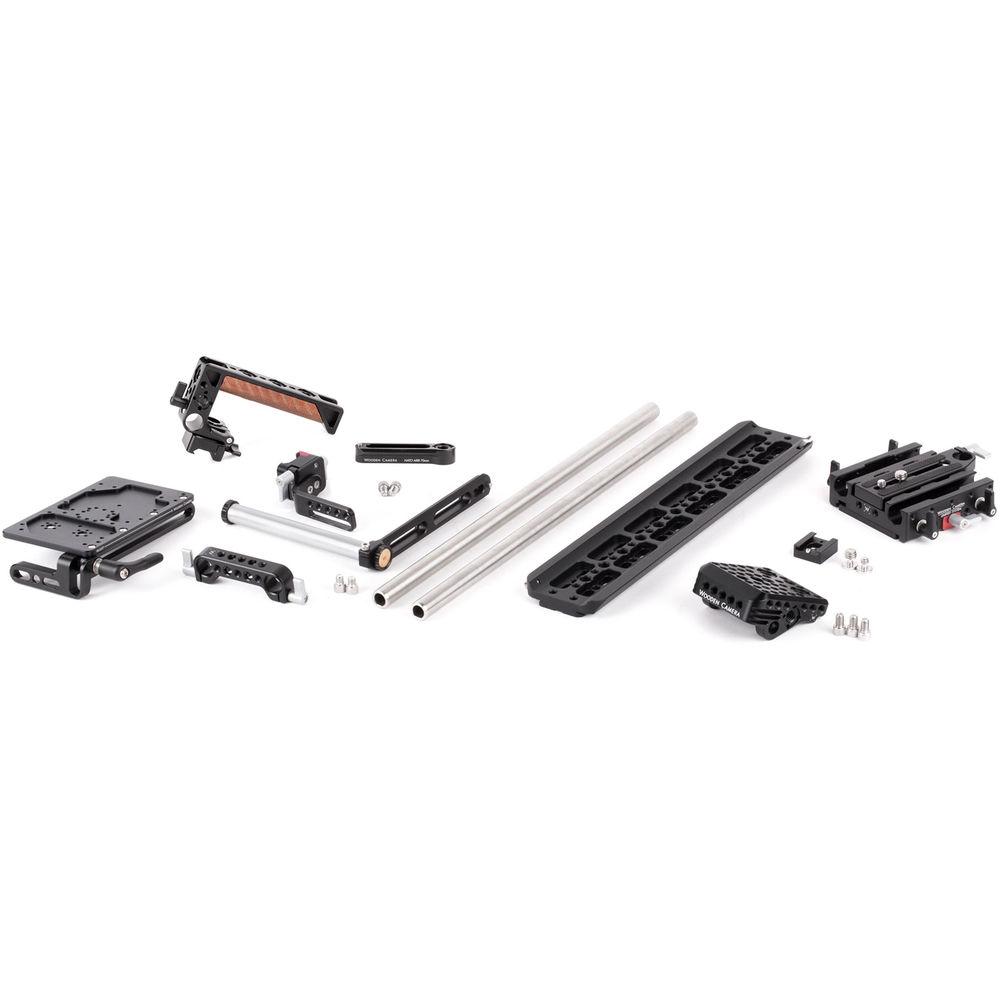

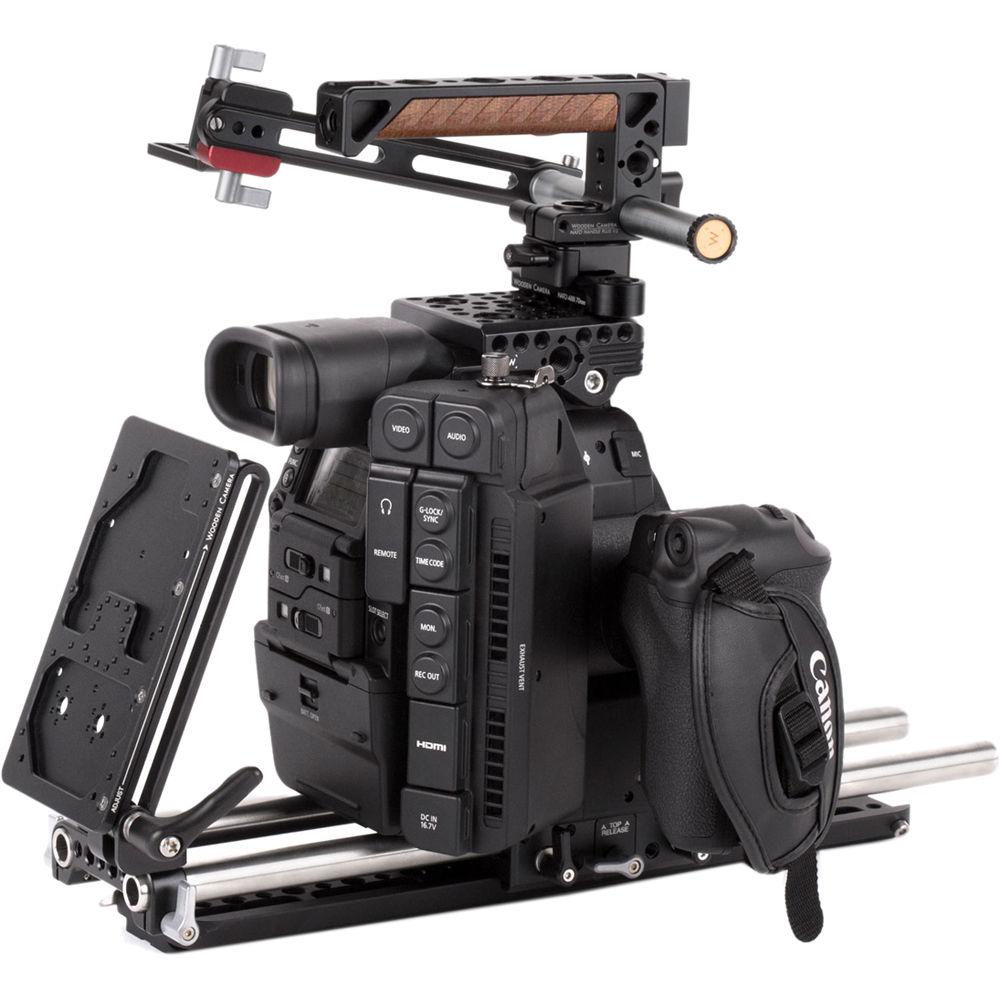

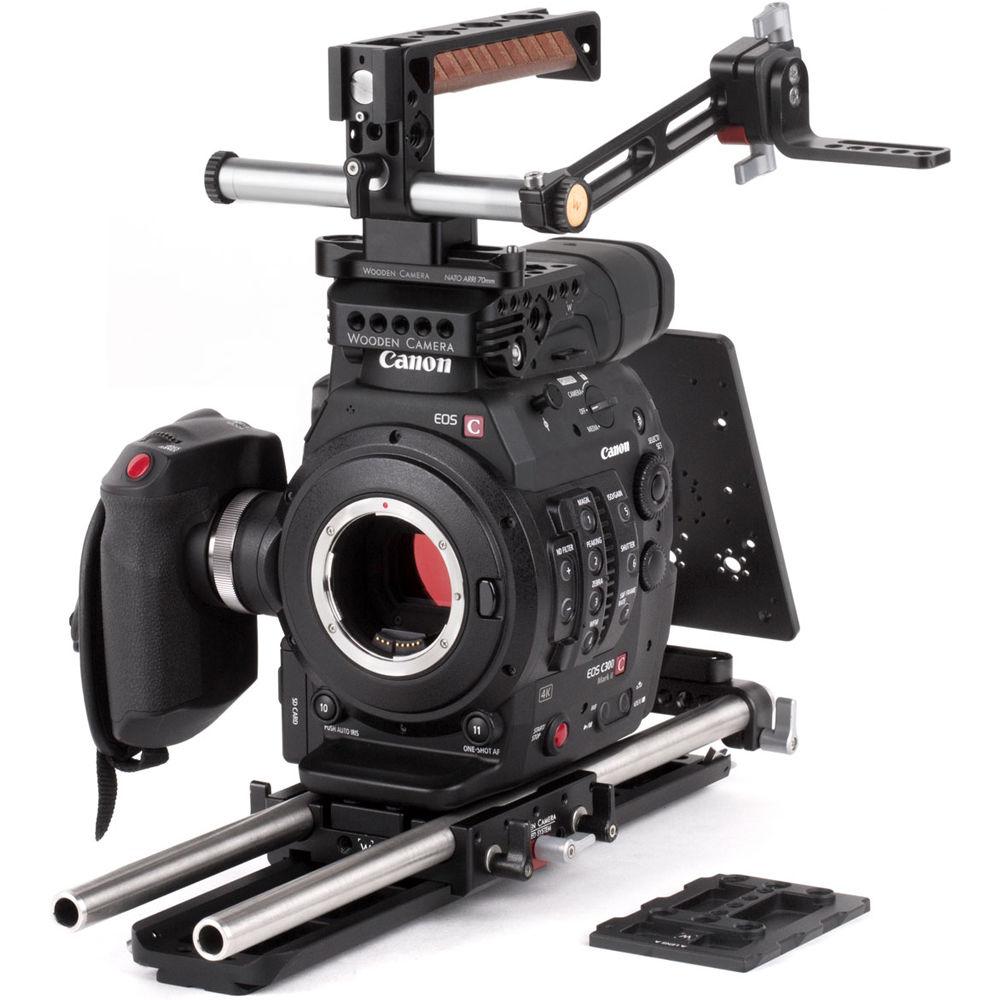

User Manual for Wooden Camera Canon C300mkII Unified Accessory Kit

• Product category: Camcorder Supports & Rigs Wooden Camera
• Brand: Wooden Camera
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Wooden Camera Camcorder Supports & Rigs

Product description

• Top Plate for Canon C300 Mark II Camera Mount an EVF, a handle, or other accessory to the top of your C300 Mark II camera with this Wooden Camera Top Plate. Threaded 1/4"-20, 3/8"-16, and ARRI standard tapped holes are available on the top and sides for versatile accessory placement. All necessary mounting hardware is included, as is a shoe mount for mounting Canon's LCD unit. UPC: 702534255757
• NATO Cheese Handle Kit (70mm) The 70mm NATO Cheese Handle Kit from Wooden Camera is designed for quick release attaching and detaching on the camera without screws. To attach the handle, you can simply slide it onto a Safety NATO Rail and tighten down the thumbscrew. The cheese grip provides mounting points for additional accessories.

  The 70mm NATO standard quick-release rail attaches to any two 1/4"-20 holes to provide mount for NATO Handles and NATO Clamps. It features spring loaded pins on each end to prevent accidental accessory removal. It is compatible with RED and third party NATO style accessories.
  • Cheese grip with 19mm opening at rear
  • Arrays of 1/4"-20 and 3/8"-16 holes provide mounting points for additional accessories
  UPC: 700987993752
• Unified Baseplate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500 The Wooden Camera Unified Baseplate supports 15mm LWS rods at the correct lens height, and offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit. This Kit allows you to support different lens adapters from Wooden Camera, Metabones, and other brands.

  The Baseplate includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Dovetail Camera Plate for the Sony FS7 and Canon C100 Mk II, C300 Mk II, and C100/C300/C500. Other Unified Baseplate Dovetail Plates are also supported, allowing for quick swaps with a variety of cameras.

  The Baseplate provides two quick release options. You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig.

  The Dovetail Camera Plate features a long slot along its center that lets you secure it to the camera with multiple screws (included), which can be set up to 2.8" (70mm) apart. It also has a non-slip rubber surface that will prevent the camera from twisting.

  The Dovetail Camera Plate has an ARCA Swiss standard dovetail compatible with many third-party products. It also has threaded 1/4"-20 threaded holes on the bottom for attaching to gimbals or other compatible tripod plates. The Lower Quick Dovetail has 1/4"-20 and 3/8"-16 threaded holes for attaching to tripod plates or ARRI standard bridgeplates, such as the Wooden Camera Unified Bridgeplates.

  The Unified Baseplate can also be upgraded for VCT-14 compatible mounting options. Simply attach it to the optional Unified VCT Wedge Plate, which can then be mounted on the Unified VCT-14 Tripod Plate, also sold separately. The Unified Baseplate is backward compatible with Wooden Camera's original Quick Dovetails (Standard, DSLR, and Large).
  Key Features
  • • Supports 15mm LWS rods at the correct lens height
    • Offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit (for lens adapter support)
    • Includes the Core Unit, Lower Quick Dovetail tripod plate, and Dovetail Camera Plate
    • Two quick release options—remove Core Unit or remove Dovetail Camera Plate
    • Core Unit features a dovetail on the bottom, compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig
    • Dovetail Camera Plate features an ARCA Swiss standard dovetail and threaded holes for attaching to gimbals or other compatible tripods plates
    • Lower Quick Dovetail offers threaded holes for attaching to tripod plates or ARRI standard bridgeplates
    • Long slot along the center allows multiple screws to be attached to the camera, set up to 2.8" (70mm) apart
    • Anti-twist, non-slip rubber surface
    • Upgradable for VCT-14 compatible mounting options
    • Additional Lower Quick Dovetail and Dovetail Camera Plates can be purchased for quick swap capability
    • Backward compatible with original Wooden Camera Quick Dovetail
  UPC: 702534256464
• 15mm Support Rod (15") This is a single, 15" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength. UPC: 610079106130
• UVF Mount V2 NATO Rail Kit The Wooden Camera UVF Mount V2 NATO Rail Kit enables you to attach and adjust a viewfinder on a rig. A mounting bracket for viewfinders is included. Most viewfinders are compatible. The bracket attaches to the NATO rail of the kit. The NATO rail features industry standard dimensions, so any NATO-compatible bracket is interchangeable with the included one. An adapter for using Alphatron viewfinders and SmallHD viewfinders/LCDs comes included.

  The NATO rail, the mounting bracket, a 15mm tube clamp, and a 15mm rod are the parts of the kit. The clamp attaches to two 1/4" threads spaced between 25 and 36mm apart and it holds the rod. And the NATO rail connects onto to the rod. A safety pin at the end of the rail will prevent the viewfinder mounting bracket from accidentally removing.
  Three Points of Adjustment
  • • Rod rotates inside the clamp
    • Rod adjusts horizontally along the clamp
    • Optional viewfinder mounting bracket tilts on NATO rail
  Some Compatible Viewfinders
  • • Alphatron
    • Cineroid
    • RED
    • SmallHD
    • Zacuto
  UPC: 610079106499
• Safety Dovetail Plate (12") The 12" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations. UPC: 610079105492
• 15mm Rod Clamp The Wooden Camera 15mm Rod Clamp attaches to 15mm rods to add 1/4"-20 screw-holes to your camera rig. Among the variety of accessories that can be mounted to these screw-holes is Wooden Camera's QB Battery Back Plate. This plate comes in different versions, each designed to have a different type of battery plate and ultimately battery attached to it. With these attached, the QB Battery Back Plate can be mounted right onto the screw-holes of the Rod Clamp. The ability to attach so is especially useful when you have no way of mounting a battery directly onto your camera and as an alternative are looking for a way to get the battery near the camera (so you can connect the two). UPC: 610079106260
• Battery Slide The Battery Slide from Wooden Camera is an adjustable mounting system for V-Mount, Gold Mount, QRC Gold Mount, and RED/BLUESHAPE battery plates. Multiple rows of pass-through holes allow the attachment of rod clamps, cheese plates, and other accessories.

  In order to adjust the plate's position, the user only needs to apply firm pressure to tilt it into place. Sliding the plate into position is facilitated by an adjustable thumbscrew. Both these movements make the plate ideal for adjusting counterbalance and transitioning from studio to handheld position. UPC: 610079106451

• 3 x 1/4"-20 x 3/8" Socket Cap Screws

• 1/4"-20 Low-Profile Screw

• 3/8"-16 Low-Profile Screw

• Limited 1-Year Warranty

• 148800 NATO Handle (Cheese)

• WC-151300 Safety NATO Accessory Rail (70mm)

• 2 x 1/4"-20 x 3/8" Screw

• Limited 1-Year Warranty

• Unified Baseplate Core Unit (No Dovetails)

• Unified Baseplate Camera Dovetail Plate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500

• Unified Baseplate Lower Quick Dovetail

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Viewfinder Mounting Bracket

• Adapter for Alphatron & SmallHD EVFs/LCDs

• 15mm Tube Clamp

• 15mm Rod

• UVF NATO Rail

• 4 x 1/4-20 x 3/8" Screws

• 1/4-20 x 1/4" Screw

• 1-Year Limited Warranty

• Limited 1-Year Warranty

• 2 x 1/4"-20 x 1/4" Screws

• 2 x 1/4"-20 x 3/4" Screws

• 1-Year Limited Warranty

• 2 x 1/4"-20 x 1/4" Socket Cap Screw

• 6 x M3 x 14mm Pan Head Screws

• 4 x M3 x 12mm Pan Head Screws

• 4 x M3 x 8mm Pan Head Screws

• 4 x M3 x 8mm Phillips Flat Head Screws

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Top Plate for Canon C300 Mark II Camera

  Dimensions	2.8 x 2.5 x 0.9" / 71.4 x 64.1 x 23.3 mm
  Weight	0.3 lb / 117 g

  Box Dimensions (LxWxH)	3.3 x 3.3 x 1.4"

• NATO Cheese Handle Kit (70mm)

  Dimensions	4.8 x 4.0 x 3.2" (121.9 x 101.6 x 81.2 mm)
  Weight	0.5 lb (0.2 kg)

  Box Dimensions (LxWxH)	6.0 x 3.1 x 1.0"

• Unified Baseplate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500

  Dimensions	2 x 6 x 6" (5 x 15 x 15 cm)
  Weight	0.8 lb (363 g)

  Box Dimensions (LxWxH)	4.95 x 4.6 x 1.15"

• 15mm Support Rod (15")

  Rod Size	15 mm
  Rod Length	15" (38 cm)

  Box Dimensions (LxWxH)	15.0 x 1.0 x 1.0"

• UVF Mount V2 NATO Rail Kit

  NATO Rail Length	4" (10.1 cm)
  Weight	.6 lb (272 g)

  Box Dimensions (LxWxH)	6.75 x 6.5 x 1.3"

• Safety Dovetail Plate (12")

  Dimensions	12.0 x 2.7 x 0.5" / 30.5 x 6.8 x 1.3 cm
  Weight	0.9 lb / 0.4 kg

  Box Dimensions (LxWxH)	12.2 x 3.6 x 0.5"

• 15mm Rod Clamp

  Dimensions	4.4 x 1 x .6" (11 x 2.5 x 1.5 cm)
  Weight	.2 lbs (91 g)

  Box Dimensions (LxWxH)	3.0 x 1.95 x 1.0"

• Battery Slide

  Dimensions	6.0 x 4.5 x 1.8" (152.4 x 114.3 x 45.7 mm)
  Weight	8 oz (226.8 g)

  Box Dimensions (LxWxH)	8.7 x 6.4 x 2.3"
