User Manual for Wooden Camera D-Box 2-Pin LEMO-Compatible Kit Gold Mount Click to enlarge the picture
Contents of the user manual for the Wooden Camera D-Box 2-Pin LEMO-Compatible Kit
- Product category: Battery Mounting Plates Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Battery Mounting Plates
 |
User manual for the Wooden Camera D-Box 2-Pin LEMO-Compatible Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

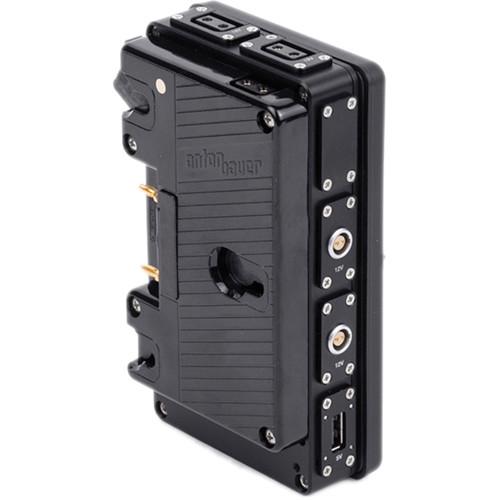

Product description The D-Box 2-Pin LEMO-Compatible Kit with Gold Mount Plates from Wooden Camera is a power distribution box for Gold Mount batteries that features two 2-pin LEMO-compatible outputs, two D-tap outputs, and one USB output, as well as one blank port. All outputs are active simultaneously, supporting a maximum power draw of 10A that is limited by a fuse accessible on the left side panel. This D-Box has a male Gold Mount on one side, and a female Gold Mount on the other side, allowing it to be powered from and fit between a Gold Mount battery and camera mount. Power is passed internally to the output connectors as well as passed through to a camera, with battery data information is passed when present. For added connectivity, the male plate provides an additional D-Tap output. UPC: 702534253456 In the Box Wooden Camera D-Box 2-Pin LEMO-Compatible Kit Gold Mount Gold Mount Male Plate Gold Mount Female Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera D-Box 2-Pin LEMO-Compatible Kit Gold Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 200200 Specs | Power Input | Gold Mount battery plate | | Power Output | 1 x Gold Mount
2 x 2-pin LEMO (12 VDC unregulated)
2 x D-Tap (12 VDC unregulated)
1 x D-Tap integrated on male Gold Mount plate
1 x USB (5 VDC regulated) | | Maximum Power Draw | 10 A | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.95 x 6.35 x 4.25" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
