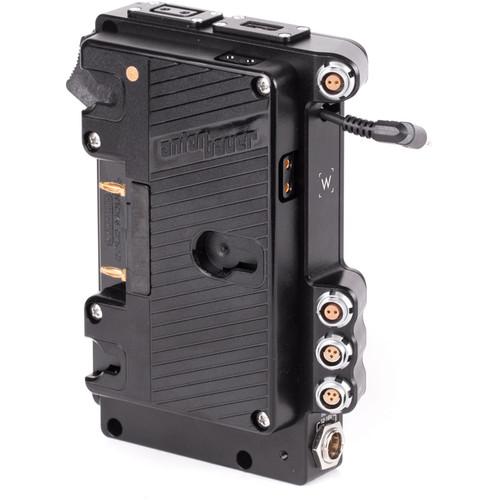

Product description NAB 2017: Wooden Camera Announcement Read More The D-Box for Blackmagic Design URSA Mini/Mini Pro from Wooden Camera is a Gold Mount battery plate that passes power to your camera, has multiple power outputs, and features camera start/stop capability via the 3-pin Fischer connectors. It features three D-Tap ports, two 2-pin LEMO, two 3-pin Fischer connectors, a USB power port, as well as a 4-pin mini XLR power input (full-sized XLR to mini XLR adapter cable included). The D-Box incorporates a LANC connector that attaches to your URSA Mini/Mini Pro and enables start/stop functionality. All outputs are always on.

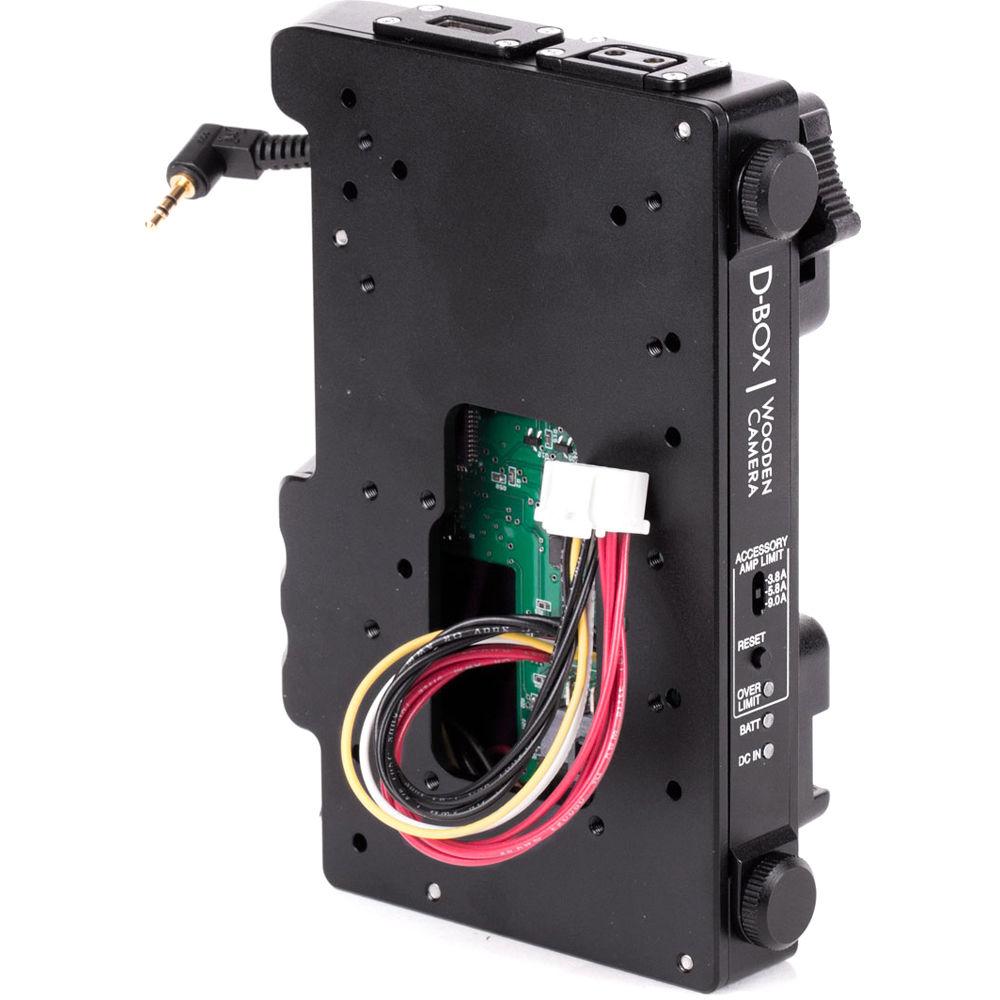

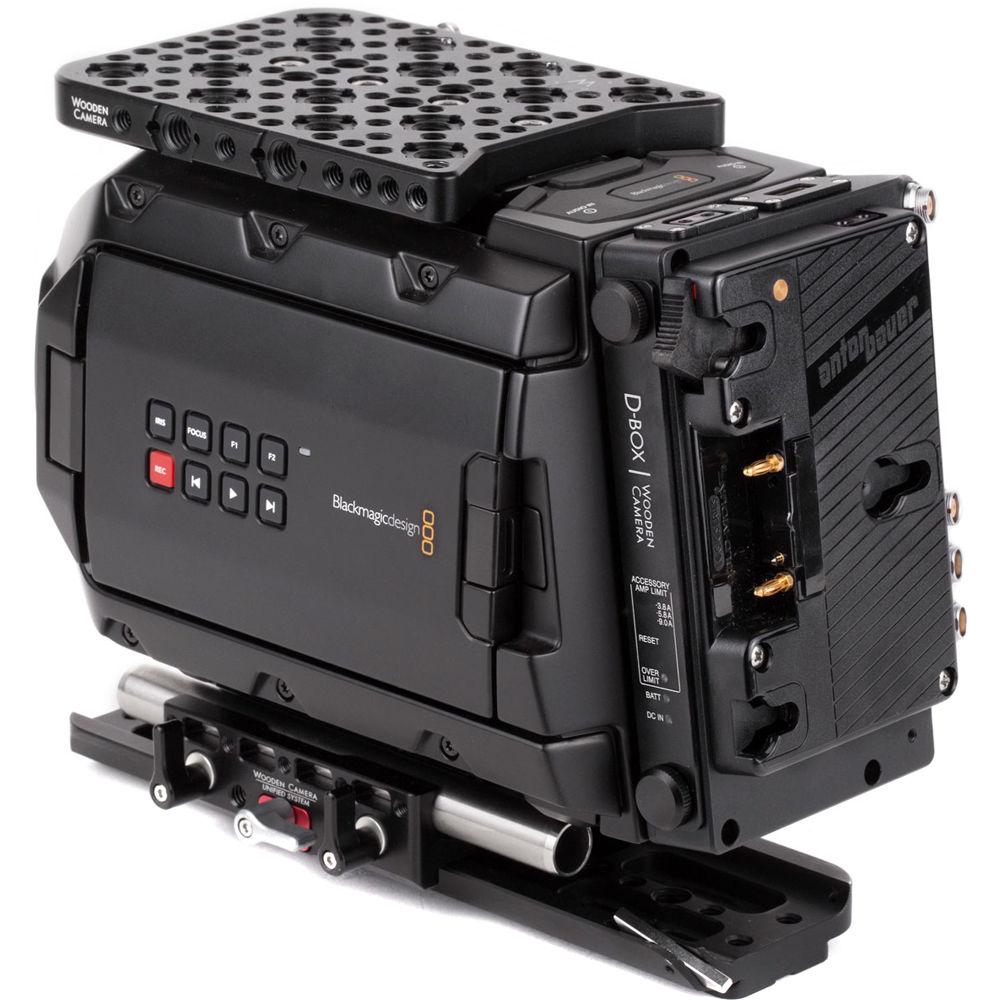

Designed to fit between your battery and the camera, it connects to the URSA Mini/Mini Pro's Molex power connection, providing a Gold Mount for you to power your camera. The D-Box's DC 4-pin Mini XLR input enables you to connect a power supply or external battery, thus maintaining power to both the camera and its accessories during a battery swap. - Mounts to your URSA Mini/Mini Pro camera, providing battery mount and fused power outputs.
- Simultaneously active output for each D-Tap, LEMO, and Fischer ports.
- A built-in LANC cable connector enables camera start/stop through either 3-pin Fischer connector.
- The D-Box features a replaceable 7.5A fast-acting mini blade fuse. To replace the fuse, you must loosen both threaded caps and remove the fuse assembly. The D-Box ships with one fuse installed and three spares.
- The D-Box incorporates one fused D-Tap power outlet; the battery plate mounted on the D-Box features two D-Tap power outlets that are not fuse protected.
- When supplying power to the D-Box via the 4-pin Mini XLR DC input, by either AC power supply or external battery, power is drawn through that input port and not from a battery attached to the plate. This allows you to keep a battery attached to your camera without draining it.
UPC: 606184852789 In the Box Wooden Camera D-Box for Blackmagic Design URSA Mini/Mini Pro (Gold Mount) 7.5A Fuse Installed 3 x Spare 7.5A Fuses 4-Pin XLR to Mini XLR Cable Set Mounting Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera D-Box for Blackmagic Design URSA Mini Mini Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 239600 Specs | Battery Plate Type | Gold Mount | | Interface / Ports | Power Output
1 x D-Tap (12 VDC unregulated)
2 x D-Tap (12 VDC unregulated on battery plate)
2 x 2-pin LEMO (12 VDC unregulated)
2 x 3-pin Fischer (24 VDC regulated, 2 A continuous draw / 3 A surge shared across both)
1 x USB (5 VDC, 2 A, regulated)
Power Input
1 x Mini 4-pin XLR (12 to 16 VDC)
Camera Power
1 x 12-pin Molex
Camera Start/Stop Connector
1 x 2.5 mm LANC | | Maximum Power Draw | 7.5 A | | Dimensions (HxWxD) | 5.75 x 4.25 x 1.38" / 14.61 x 10.8 x 3.49 cm | | Weight | 17.6 oz / 499 g | | | | Package Weight | 1.295 lb | | Box Dimensions (LxWxH) | 8.8 x 6.5 x 4.35" |
