User Manual for Wooden Camera D-Box for Canon C300 Mark II Click to enlarge the picture
Contents of the user manual for the Wooden Camera D-Box for Canon C300
- Product category: Battery Mounting Plates Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Battery Mounting Plates
 |
User manual for the Wooden Camera D-Box for Canon C300 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

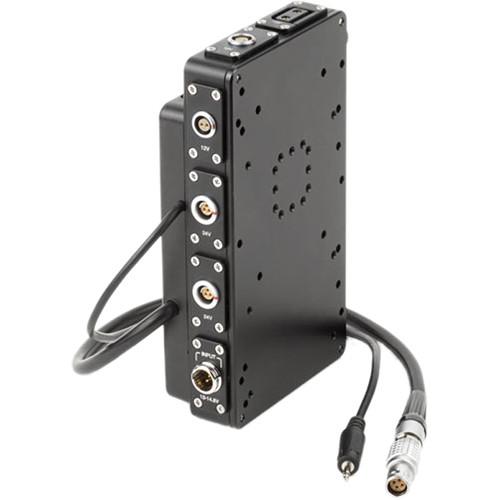

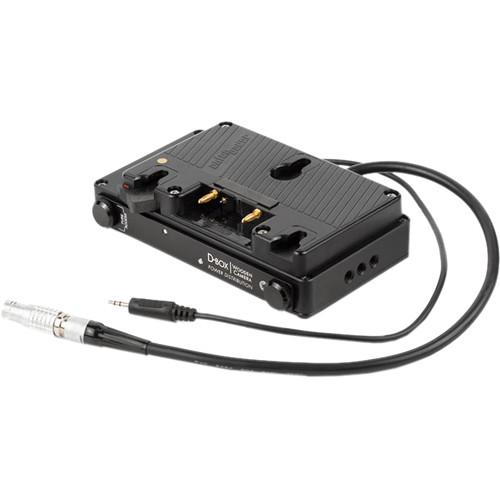

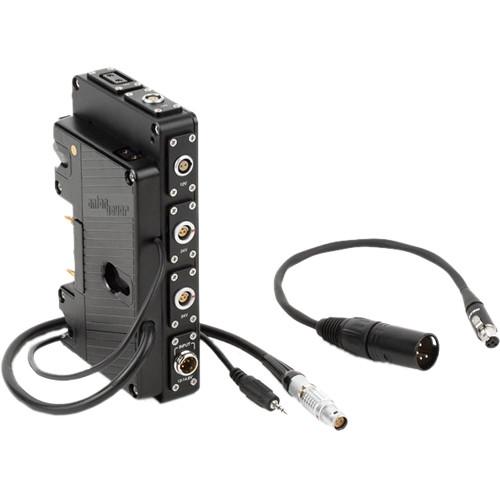

Product description Provided by third party: D-Box (C300mkII, Gold Mount) is a custom version of the popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the Canon C300mkII. Two 12 inch (30cm) cables exit the power plate with one going to the 4pin LEMO power plug and the other going to the Remote port. There is a LANC control board inside the D-Box that communicates with the camera so that any ARRI standard start/stop can be used in the 3pin Fischer ports.
UPC: 702534255719 Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera D-Box for Canon C300 Mark II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 215700 Specs | | | Product Type | Power distribution panel | | Width | 3.5 in | | Depth | 1.7 in | | Height | 5.7 in | | Weight | 18.83 oz | | | | Voltage Provided | 12 / 24 V | | Output Connectors | 4 pin mini XLR, D-tap, 2 pin Lemo, 3 pin Fisher | | Max Electric Current | 10 A | | Power Device Details | D-tap - 12 V
2 x 2 pin Lemo - 12 V
2 x 3 pin Fisher - 24 V - 3 A
4 pin mini XLR - 12 V | | AC Power Adapter Required | Yes | | Features | Integrated fuse, remote start/stop function | | | | Included Accessories | Allen key, screws | | Cables Included | miniXLR to XLR cable - 8 in
2 x power cable - 1 ft | | | | Designed for | Canon EOS C300 Mark II | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.7 x 6.4 x 4.3" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
