User Manual for Wooden Camera D-Box for RED DSMC2 Cameras Click to enlarge the picture
Contents of the user manual for the Wooden Camera D-Box for RED DSMC2
- Product category: Battery Mounting Plates Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Battery Mounting Plates
 |
User manual for the Wooden Camera D-Box for RED DSMC2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

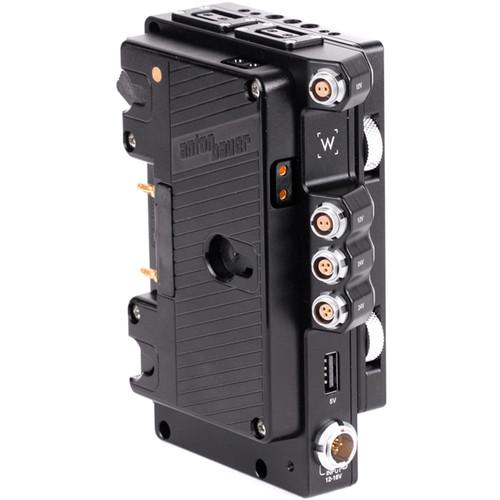

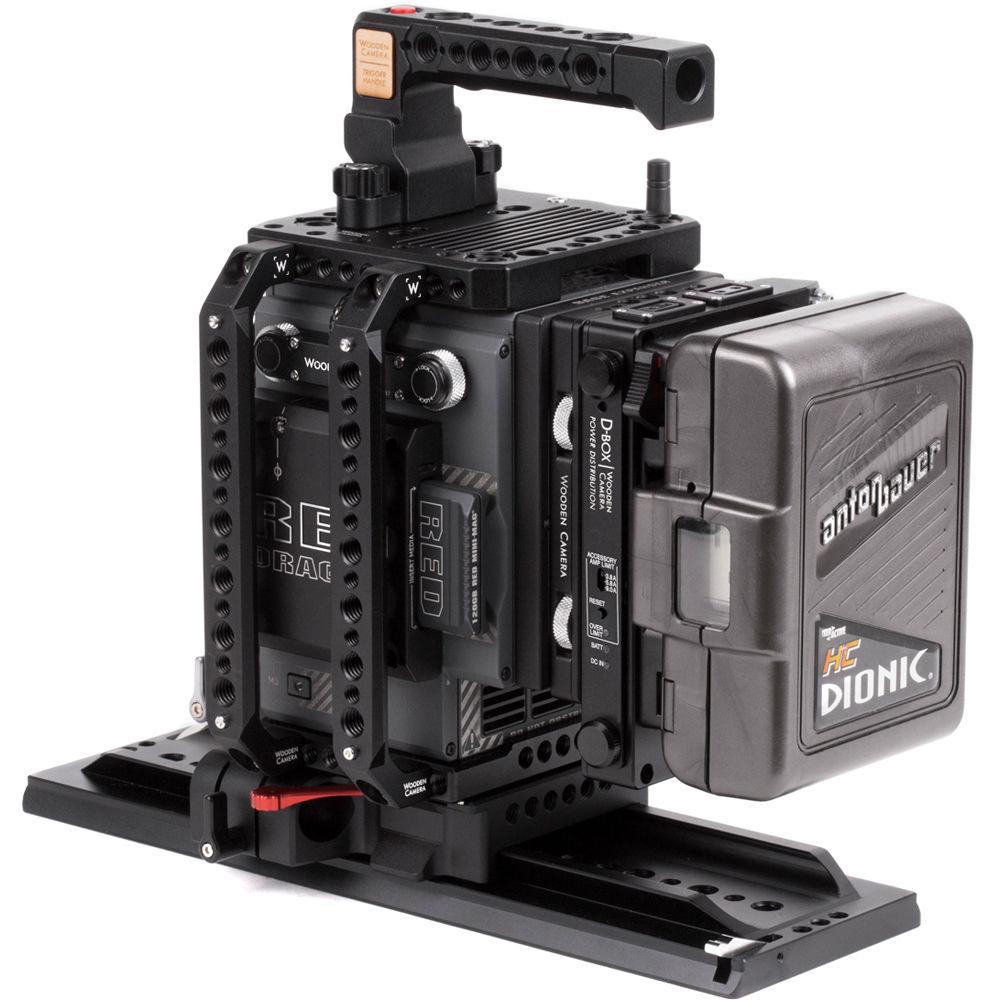

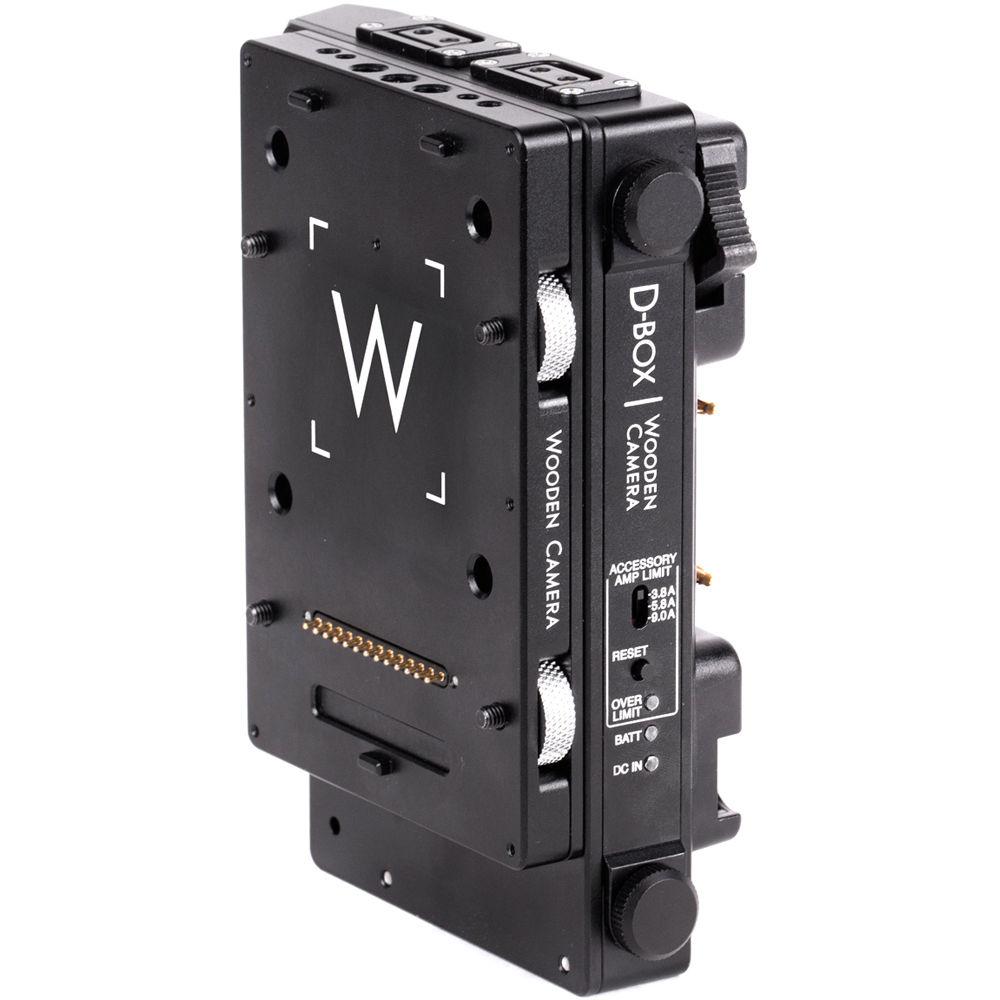

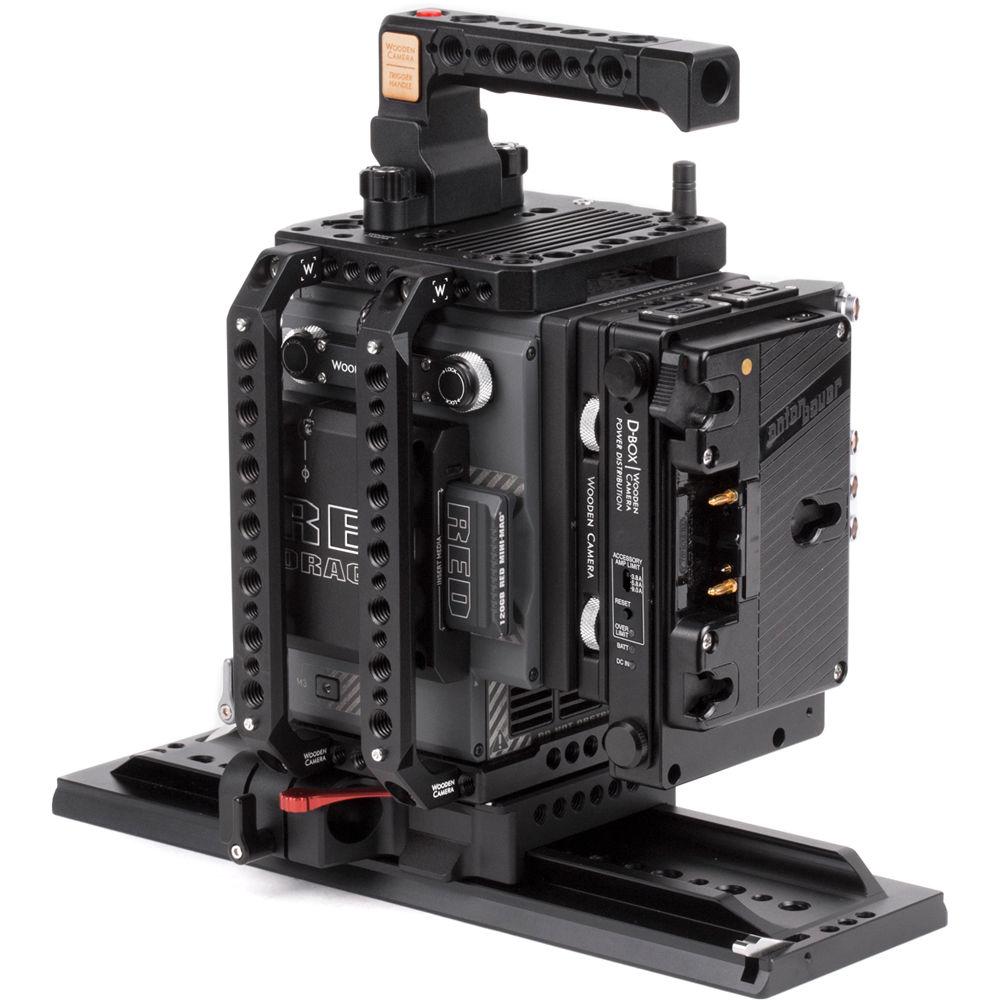

Product description The D-Box for RED DSMC2 (Gold Mount) from Wooden Camera is an adapter that provides power distribution, remote power on/off, and hot swap battery functions for the RED DSMC2 cameras. Expanding your selection of powered accessory connectors, this box features two D-Tap ports, two 2-pin LEMO ports, two 3-pin Fischer ports, one 5V USB port, and one 12-16V DC input port. All outputs are active simultaneously, and there is access to an additional D-Tap port on the battery plate itself, for a total of three operational D-Tap ports.Designed to fit between a battery and the camera's battery mount, the D-Box has a male Gold Mount on one side, and a female Gold Mount on the other, internally passing power to the output connectors and to the camera. The D-Box's DC input port enables you to connect a power supply, thus maintaining power to both the camera and its accessories during a battery swap.The D-Box features tool-free installation, a cable-free interface, and compatibility with WC, REDVOLT, and OFFHOLLYWOOD expander modules. Connectors on the D-Box are contoured to match those on the expanders, so there is no tangling of cables. An ARRI start/stop trigger may be connected via one of the box's 3-pin Fisher ports. Features - Gold Mount box provides power distribution for RED DSMC2 cameras: WEAPON, EPIC, SCARLET, and RAVEN
- Simultaneously active output for two each of D-Tap, LEMO, and Fischer ports, plus one operational D-Tap on the battery plate itself
- Expands selection of accessory ports, and enables connection of an on/off trigger, AC power supply, etc.
- Tool-free installation and cable-free interface

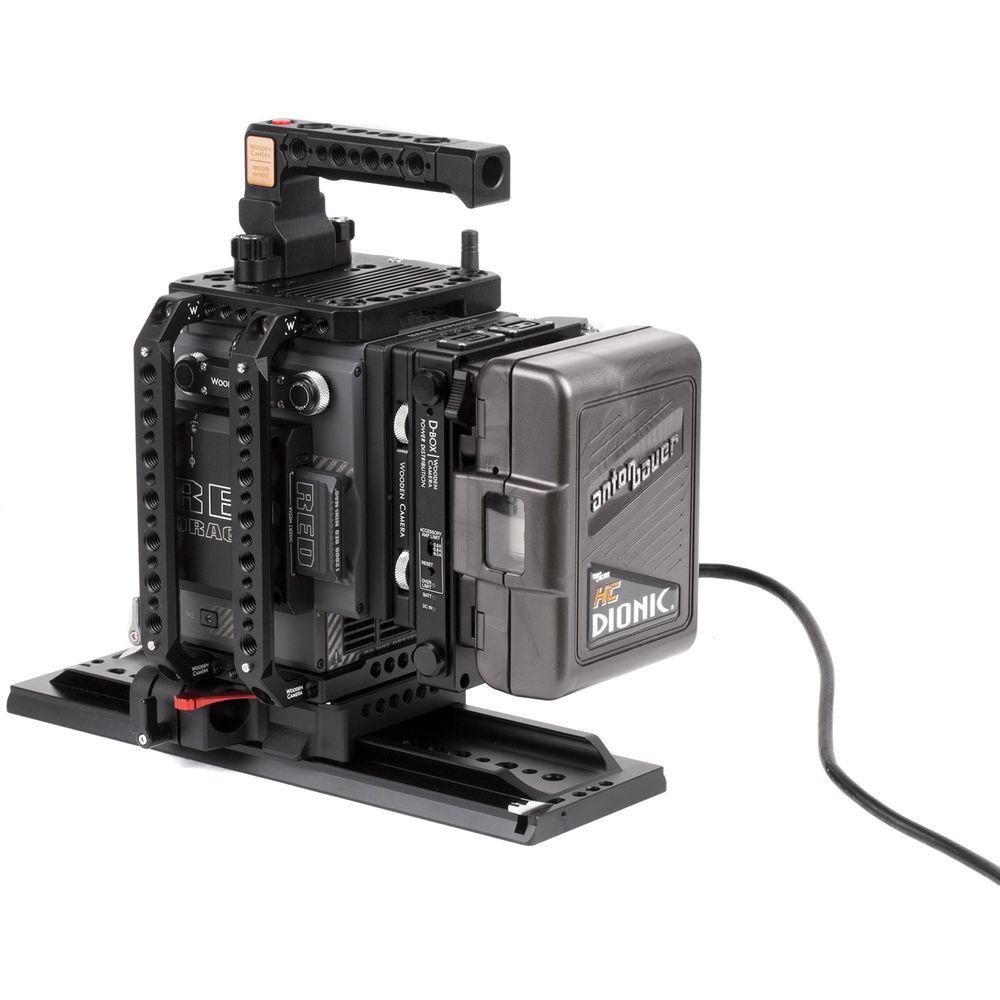

- When used with an AC power supply, the box maintains power to the camera and accessories while changing the camera battery
- Contoured for compatibility with Wooden Camera, REDVOLT, and OFFHOLLYWOOD Expander modules
UPC: 606184852673 In the Box Wooden Camera D-Box for RED DSMC2 Cameras (Gold Mount) 10A Replacement Fuses Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera D-Box for RED DSMC2 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera D-Box Specs | Battery Plate Type | Gold Mount | | Interface / Ports | 3 x D-Tap (12 VDC, unregulated)
2 x 2-pin LEMO (12 VDC, unregulated)
2 x 3-pin Fischer (24 VDC, regulated)
1 x USB (5 VDC, 2 A, regulated) | | Maximum Power Draw | 10 A | | Dimensions (HxWxD) | 9 x 7 x 5" (22.9 x 17.8 x 12.7 cm) | | Weight | 1.3 lb (610 g) | | | | Package Weight | 1.635 lb | | Box Dimensions (LxWxH) | 8.75 x 6.4 x 4.35" |
