User Manual for Wooden Camera D-Box Power Distribution Adapter Box for ARRI ALEXA Mini Click to enlarge the picture
Contents of the user manual for the Wooden Camera D-Box Power Distribution Adapter
- Product category: Battery Mounting Plates Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Battery Mounting Plates
 |
User manual for the Wooden Camera D-Box Power Distribution Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|

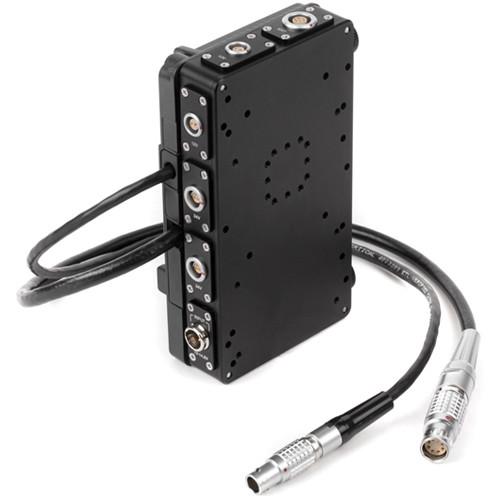

Product description Provided by third party: D-Box (Alexa Mini, V-Mount) is a custom version of popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the ARRI Alexa Mini. Two 16 inch (40cm) cables exit the power plate with one going to the 8pin LEMO power plug and the other going to the 7pin EXT port.

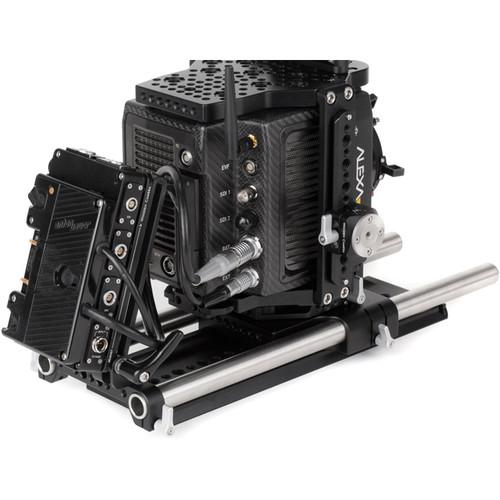

The bottom of the D-Box has (3) 1/4-20 holes which can attach directly to Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm). For an adjustable mount system, use the Battery Slide or Recorder Slide paired with the same Rod Clamps listed above.
This product will attach to the ARRI BAP-1 and instructions on how to do this are included in the box.
UPC: 702534254965 Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera D-Box Power Distribution Adapter Box for ARRI ALEXA Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 209200 Specs | | | Product Type | Power distribution panel | | Width | 3.5 in | | Depth | 1.7 in | | Height | 5.7 in | | Weight | 18.83 oz | | | | Voltage Provided | 12 / 24 V | | Output Connectors | 4 pin mini XLR, D-tap, 2 pin Lemo, 3 pin Fisher | | Max Electric Current | 10 A | | Power Device Details | - D-tap - 12 V
2 x - 2 pin Lemo - 12 V
2 x - 3 pin Fisher - 24 V - 3 A

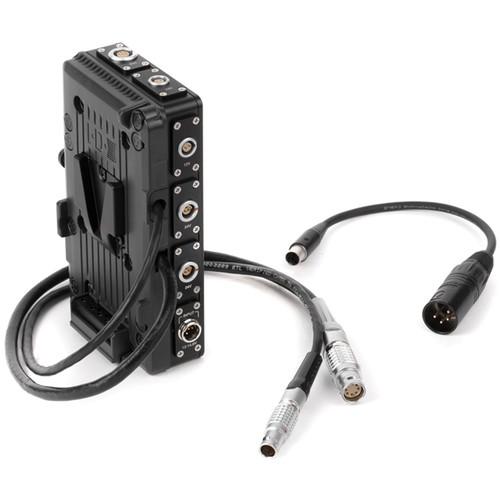

- 4 pin mini XLR - 12 V | | AC Power Adapter Required | Yes | | Features | Integrated fuse, remote start/stop function | | | | Included Accessories | Allen key, screws | | Cables Included | miniXLR to XLR cable - 8 in
2 x power cable - 1 ft | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.8 x 6.4 x 4.3" |
