User Manual for Wooden Camera Director's Monitor Cage v2 with Rubber Grips Click to enlarge the picture
Contents of the user manual for the Wooden Camera Director's Monitor Cage v2
- Product category: Director's Monitor Brackets Wooden Camera
- Brand: Wooden Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wooden Camera Director's Monitor Brackets
|
User manual for the Wooden Camera Director's Monitor Cage v2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wooden Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wooden Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wooden Camera product will considerably shorten its lifespan!
|
Product description The Wooden Camera Director's Monitor Cage v2 accepts virtually any LCD on-camera monitor up to 9", allowing it to be securely held and carried by a director or anyone who needs to have a personal monitor during a shoot. Featuring rubber handgrips, a padded neck strap, and a swing-away design for easy access to the back, this cage makes carrying a small monitor both simple and comfortable. Based on a universal plate system that mounts your monitor using 1/4"-20 mounting points on the side, top, or bottom of your monitor. In addition to holding your monitor, the cage allows for the mounting of a separately available V-mount or Gold mount plate for battery power, and it also leaves plenty of room for wireless equipment, so you can remain untethered on set. This is version two of the Wooden Camera Director's Monitor Cage, which features mounting capability for the Convergent Design 7Q Odyssey or Apollo monitor/recorder and comes with a collapsible sunshade. When mounted in the cage access to your monitor's front panel controls remain unimpeded. A built-in baby-pin receiver makes for easy mounting to a C-stand. Optional V-mount and Gold mount battery plates are available. An optional adapter kit enables you to mount two Director's Cages side-by-side. - The rubber handgrips fold for easy storage, while the included sunshade can be used as a protective cover.
- The included sunshade adapts to most monitors and attaches directly to the cage, so it does not interfere with your monitor's front panel controls.
- An optional adapter kit allows you to mount two Director's Cages v2 together.
- Compatibility
- SmallHD DP4, DP6, AC7, DP7, 503, 701, 702, 703
Blackmagic Video Assist
TVLogic VFM-056W/WP, VFM-058W
ikan D5, VK7i, VH8, VL5, VX9e
Odyssey 7, 7Q
Atomos Samurai, Ninja, Shogun
Video Devices PIX-E5, PIX-E7

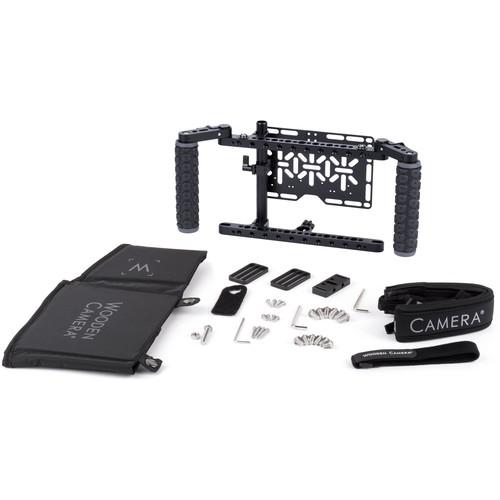

And many more UPC: 606184856978 In the Box Wooden Camera Director's Monitor Cage v2 with Rubber Grips 6 x 1/4"-20 x 1/2" Button Head Screw 6 x 1/4"-20 x 3/8" Button Head Screw 2 x Offset Adapter 2 x 1/4"-20 x 2" Socket Cap Screw 4 x M3 x 8mm Philips Screw (for V-Mount Plate) 4 x M3 x 12mm Philips Screw (for Gold Mount Plate) M2.5 x 4mm Socket Cap Screw (for Odyssey 7Q Location Pin) 4 x M3 x 20mm Socket Cap Screw (for Odyssey 7Q) Teradek Mounting Bracket 1/4"-20 x 1 1/4" Button Head Screw (for Teradek Bolt) 1/4"-20 Nut (for Teradek Bolt) 4 x #4-40 x 1/2" Socket Cap Screw (for Teradek Receiver) WC Cable Tie Sunshade Sunshade Hook-and-Loop Fabric Padded Neck Strap Cable Tie 5/32 Allen Key M2.5 Allen Key M3 Allen Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wooden Camera Director's Monitor Cage v2 with Rubber Grips in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWooden Camera 239009 Specs | Dimensions | 11 x 7 x 4" / 27.94 x 17.78 x 10.16 cm | | Weight | 2.6 lb / 1.179 kg | | | | Package Weight | 2.64 lb | | Box Dimensions (LxWxH) | 10.9 x 7.2 x 4.1" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
